WINDY NATION LIN-ACT1-02 Manual

SPECIFICATION LIN-ACT1-02 LIN-ACT1-04 LIN-ACT1-06 LIN-ACT1-08 LIN-ACT1-12 LIN-ACT1-16 LIN-ACT1-20 LIN-ACT1-30
Stroke Length 2" (51mm)
Rated Load
Travel Speed
(Max)
Rated Voltage
Current Draw
(Max)
Install Dimension
(Min)
Mounting Holes
Limit Switches
Operating Temp
Protection Class
Duty Cycle
Noise Level
INSTALLATION
WARNINGS: 1.The total load on the actuator (structure weight, structure friction, and possible actuator friction) must be less than or
equal to the rated load of actuator.
2. The moving load must be centered above the actuator extension tube so that actuator lifting point is located at the
center-of-mass of the structure. Unless the structural design is properly braced, off-centered loads will cause additional
friction that can (1) exceed the rated load of the actuator or (2) cause the actuator shaft to bend and permanently fail.
3. Do not exceed the 25% duty cycle of the actuator: If the actuator is used at full load for 2.5 minutes, then it must
remain off for 7.5 minutes. Exceeding the duty cycle will cause the actuator motor to overheat and permanently fail.
1. Mount the actuator by securing the top and bottom mounting holes to two fixed positions. The stroke length of the actuator
(e.g. 12 inches) and the limitations of the particular application will determine the location of the fixed mounting positions.
IMPORTANT: Confirm that up/down movement of the actuator is smooth and within the actuators stroke length after
installation.
2. Secure the top and bottom mounting holes of the linear actuator onto the two mounting fixtures using 5/16" diameter bolts.
windynation

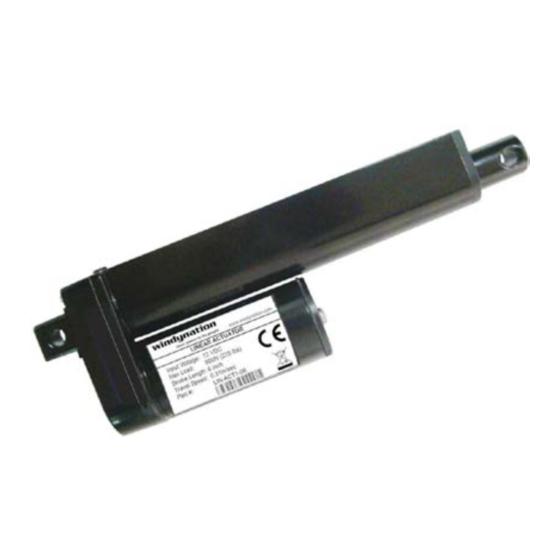

LIN-ACT1-XX Linear Actuators
4" (102mm) 6" (152mm)
-14.8
windynation
8" (203mm) 12" (305mm) 16" (406mm) 20" (508mm) 30" (762mm)
225 lbs (900N)
0.39 in/sec (10 mm/sec)
12 VDC
< 2.5 A
Stroke Length + 4.33" (110mm)
0.31" (8mm)
Fixed Inner (not adjustable)
o o o
F to +149 F (-26 C to +65
IP65
25%
< 50dB
o
C)
Page 1 of 2
