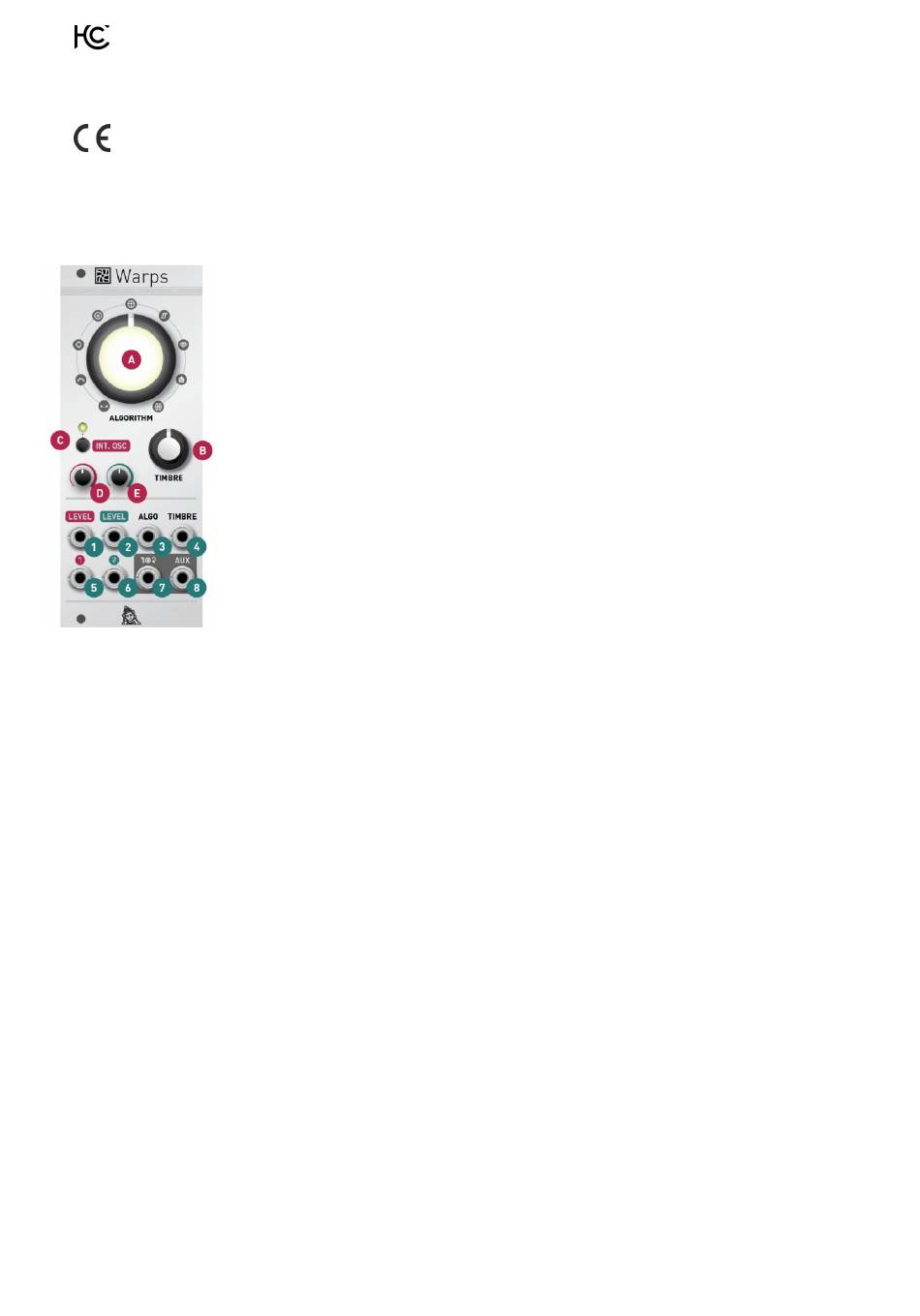

CONTROLS, INPUTS AND OUTPUTS

A. Modulation algorithm.
and modulator. The algorithms are described in further details in the next section.
B. Modulation timbre.
- or provides another dimension of tone control for some algorithms.
C. Internal oscillator state.
of the LED depends on the oscillator waveform - when the LED is off, the internal oscillator is disabled and
an external signal is used as a carrier.
D. External carrier amplitude or internal oscillator frequency.
to say, when the internal oscillator is switched off), this knob controls the amplitude of the carrier, or the
amount of amplitude modulation from the channel 1
active, this knob controls its frequency.
E. Modulator amplitude.
modulation from the channel 2
overdrive effect!
1. External carrier amplitude or internal oscillator frequency CV input.
switched off, this CV input controls the gain of the carrier input. When the internal oscillator is enabled, it
acts instead as a V/Oct control for the oscillator frequency.
2. Modulator amplitude CV input.
carrier counterpart, it is internally normalized to a constant +5V source when no patch cable is plugged in.
When a signal is patched into this input, the amount of CV modulation is controlled by the Modulator
amplitude knob (E).
3. Algorithm CV input.
(A).
4. Timbre CV input.
https://mutable-instruments.net/modules/warps/manual/
( )
This knob selects which signal processing operation is performed on the carrier
This knob controls the intensity of the high harmonics created by cross-modulation
This button enables the internal oscillator and selects its waveform. The color
This knob controls the amplitude of the modulator, or the amount of amplitude
LEVEL CV input. Note that gains above 1.0 can be applied, for a warm
This CV input controls the gain of the modulator input. Just like its
The CV on this input is added to the position of the Modulation algorithm knob
The CV on this input is added to the position of the Modulation timbre knob (B).
