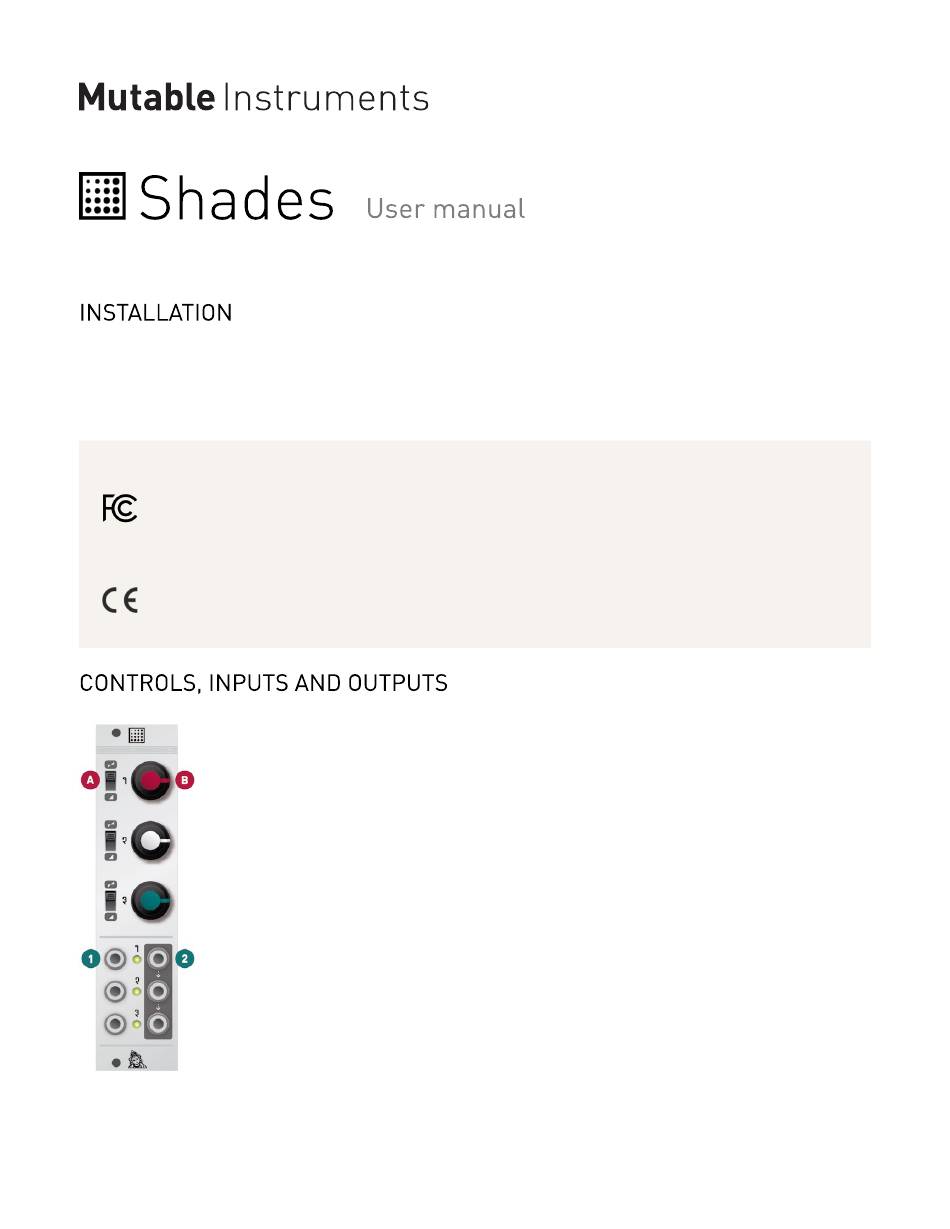

Shades requires a -12V / +12V power supply (2x5 pin connector). The ribbon cable connector must be
aligned so that the red stripe of the ribbon cable (-12V) is on the same side of the module's power header
as the "Red stripe" marking on the board. The module draws 15mA from both the +12V and -12V supply
rails.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
This device meets the requirements of the following standards: EN55032, EN55103-2,
EN61000-3-2, EN61000-3-3, EN62311.
Each of the 3 channels of Shades can act as an attenuator or attenuverter.
A. Function selector
This control selects configures the channel as an attenuator (lower position) or as
an attenuverter (upper position).
Mutable Instruments | Shades
1 of 3
Advertisement
Table of Contents
Related Manuals for Mutable Instruments Shades
Summary of Contents for Mutable Instruments Shades
- Page 1 Mutable Instruments | Shades Shades requires a -12V / +12V power supply (2x5 pin connector). The ribbon cable connector must be aligned so that the red stripe of the ribbon cable (-12V) is on the same side of the module’s power header as the “Red stripe”...
- Page 2 2’s knob to adjust the amplitude and polarity of the CV. This product is covered by Mutable Instruments’ warranty, for one year following the date of manufacture. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use - such as, but not limited to, power cables connected backwards, excessive voltage levels, or exposure to extreme temperature or moisture levels.
- Page 3 Mutable Instruments | Shades 3 of 3...
