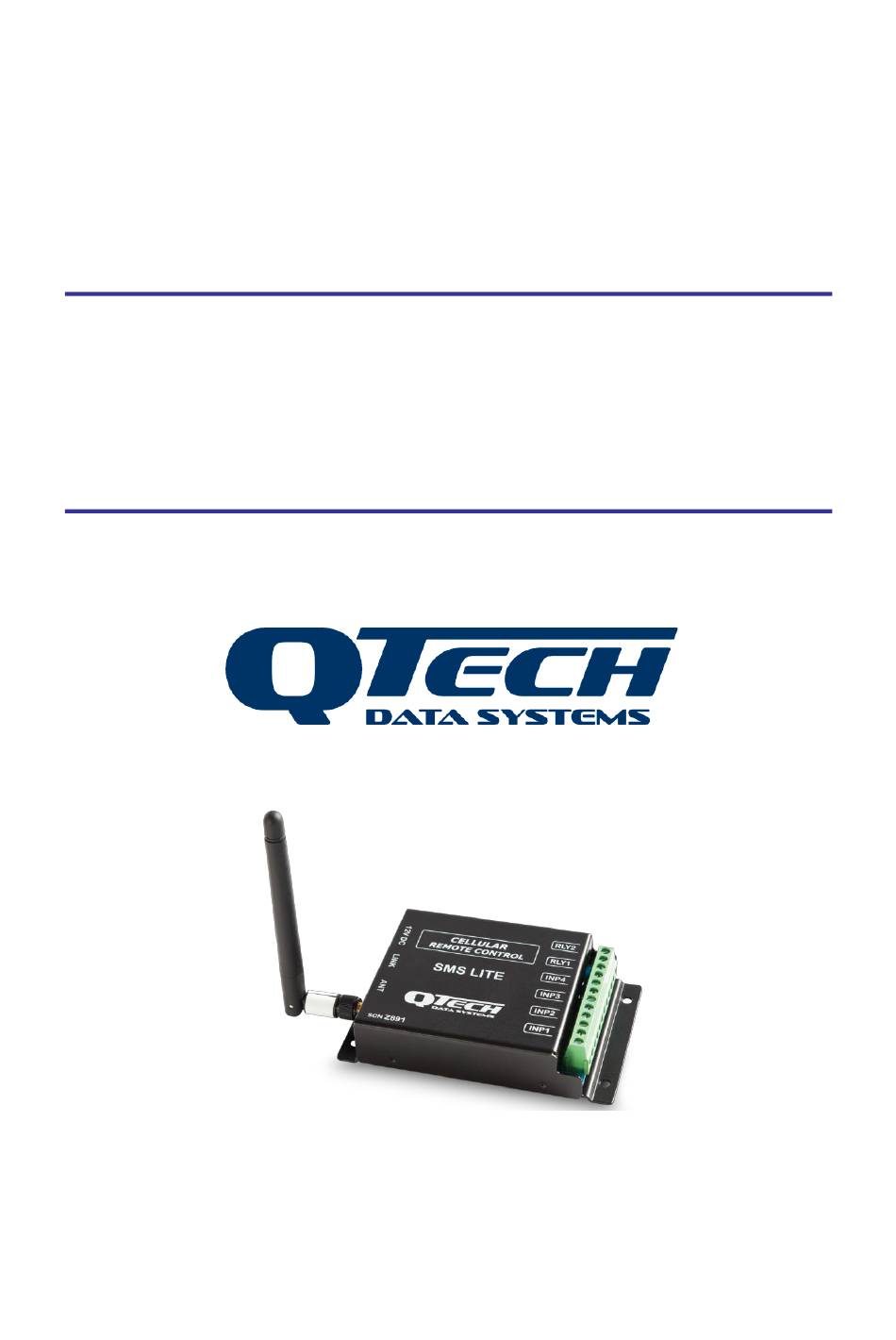

- Page 1 QTech SMS Lite Quick Start Guide...
-
Page 2: Version Control
QTech SMS Lite – Quick Start Guide V1.5 Version Control Document Name: QTech SMS Lite Quick Start Guide V1.5 Product: SMS Lite Document Owner: QTech Data Systems Ltd Current Firmware: Firmware V4.00 Date Updated: 23/2/2018 Version Date Author Change Description V1.0... -
Page 3: Aerial Connection
QTech SMS Lite – Quick Start Guide V1.5 Introduction The SMS Lite is a powerful cellular remote control unit that uses text messages to provide up to four people with status conditions, notifications and control options for its four switched inputs and two relay outputs. It is operational within minutes with the minimum configuration requirement being the registering of a single cellular number to the SMS Lite. -
Page 4: Install The Sim Card
Before installing the SIM card, ensure that it is activated. We recommend you insert the SIM into a regular cell phone to check this. Carefully remove the SMS Lite cover by prising the side panels close to the retaining dimples. -
Page 5: Getting Started
QTech SMS Lite – Quick Start Guide V1.5 Getting Started In order to operate the SMS Lite, the device must have a mobile number registered as ‘Phone 1’ referred to as Ph1. You must register this number before you can configure any of the inputs or outputs. - Page 6 QTech SMS Lite – Quick Start Guide V1.5 You can now connect the SMS Lite to the required INPUTS and OUTPUTS and configure them. INPUTS Once the SMS Lite is configured, Phone 1 will be sent a message each time any of the inputs turn on or off. They must acknowledge receipt of the notification.
-
Page 7: Configuration Overview
Further configuration is possible to allow personalisation of your SMS Lite. You can assign a name to the SMS Lite which is referred to as the Site name as well as naming of inputs and outputs, and assignment of phone(s) to these. The SMS Lite can be configured with up to 4 phone numbers allowing multiple user notifications and control options. - Page 8 Example: To programme the Site name to Shed1, name Input 1 as Pump and set notification escalations to phones 1, 2 and 3. You can either send the SMS Lite 3 individual configuration text messages: e.g. #12345 Site:Name=Shed1. #12345 INP1:Name=Pump.
-
Page 9: Advanced Commands
The debounce value is "global" to all inputs and you cannot specify different values for each input. If the SMS Lite is connected to a device that will not be affected by this you do not need to programme this as the default value is 0 and there will be no delay. - Page 10 QTech SMS Lite – Quick Start Guide V1.5 Supply Voltage Alarm If the SMS Lite is connected to an external battery or the mains, and the supply voltage drops below 10.5V, Ph1 will receive a notification message: The supply voltage at <site> has gone low.
-
Page 11: Operational Commands
This will stop any further escalation of the alarm to the numbers in the phone list for that input status change. It will begin at the top of the list the next time the input is activated. Force the SMS Lite to send the alarm message to the next phone number in the list. BUSY <input name>... - Page 12 QTech SMS Lite – Quick Start Guide V1.5 Phone 1 Alerted, No Response – Escalate to Phone 2 After 10 Mins INPUT ALERT TURNS RESPONSE SENT ON / OFF (10 Mins) SEND SEND END OF ALERT <INPUT> PROCESS SENT RECEIVE Phone 1 No Response, Escalate to Phone 2 After 10 Mins, Busy–...
-
Page 13: Output Control
QTech SMS Lite – Quick Start Guide V1.5 Alarms Alarm message for multi-person escalations: <Site> <Input> has turned ON. Reply OK <Input> or BUSY <Input>. You are the <nth> of N> to be sent this. e.g. Shed1 Pump has turned ON. Reply OK Pump or BUSY Pump. You are the person of 3 to be sent this message The last person in the escalation list receives a different message as they aren’t... -
Page 14: Information Commands
The SMS Lite will respond with a description of the phone number list it has configured. STATUS e.g. Text: STATUS The SMS Lite will respond with the current values of all inputs and outputs as well as current supply voltage. e.g. Text: BAL... -
Page 15: Status Leds
QTech SMS Lite – Quick Start Guide V1.5 Status LED’s The SMS Lite has an LED, labelled ‘Link’ situated next to the aerial connection. The LED will indicate various events that have occurred: ▪ When it powers on it will toggle on and off 5 times slowly. -
Page 16: Technical Details
32 volts AC or DC. To connect to or control higher voltage equipment please consult a Registered Electrician. 1. The SMS Lite is over voltage protected by a 30 volt Zenner diode. Voltages greater than this will blow the internal 2amp fast blow fuse. -
Page 17: Programming Tips
– check there are no active alarms before reconfiguration as the process will be halted. By sending ‘Status’ to the SMS Lite you can see the status of any of the inputs or outputs, this can help identify if the alarm escalation has been interrupted by a configuration change. -
Page 18: Configuration Worksheet
QTech SMS Lite – Quick Start Guide V1.5 Configuration Worksheet #1 SMS Lite e.g. Phone: 021234567 Site: Shed1 Pin: #12345 Phone Number Contact Person Ph1: Ph2: Ph3: Ph4: Input 1 Input 2 Input 3 Input 4 e.g. Name: Pump Phones: Ph1,Ph2,Ph3 Programme the phones which will be included in each input escalation, if required. - Page 19 QTech SMS Lite – Quick Start Guide V1.5 Configuration Worksheet #2 SMS Lite e.g. Phone: 021234567 Site: Shed1 Pin: #12345 Phone Number Contact Person Ph1: Ph2: Ph3: Ph4: Input 1 Input 2 Input 3 Input 4 e.g. Name: Pump Phones: Ph1,Ph2,Ph3 Programme the phones which will be included in each input escalation, if required.
- Page 20 QTech SMS Lite – Quick Start Guide V1.5 User Notes and Installation Details www.qtech.co.nz Ph: +64 3 366 3713 Page 20 of 21...
- Page 21 QTech Data Systems Ltd 12 Midas Place, Middleton, Christchurch 8024 PO Box 9087, Tower Junction, Christchurch 8149 Ph: +64 3 366 3713 Fx: +64 3 365 2815 admin@qtech.co.nz techsupport@qtech.co.nz www.qtech.co.nz...
