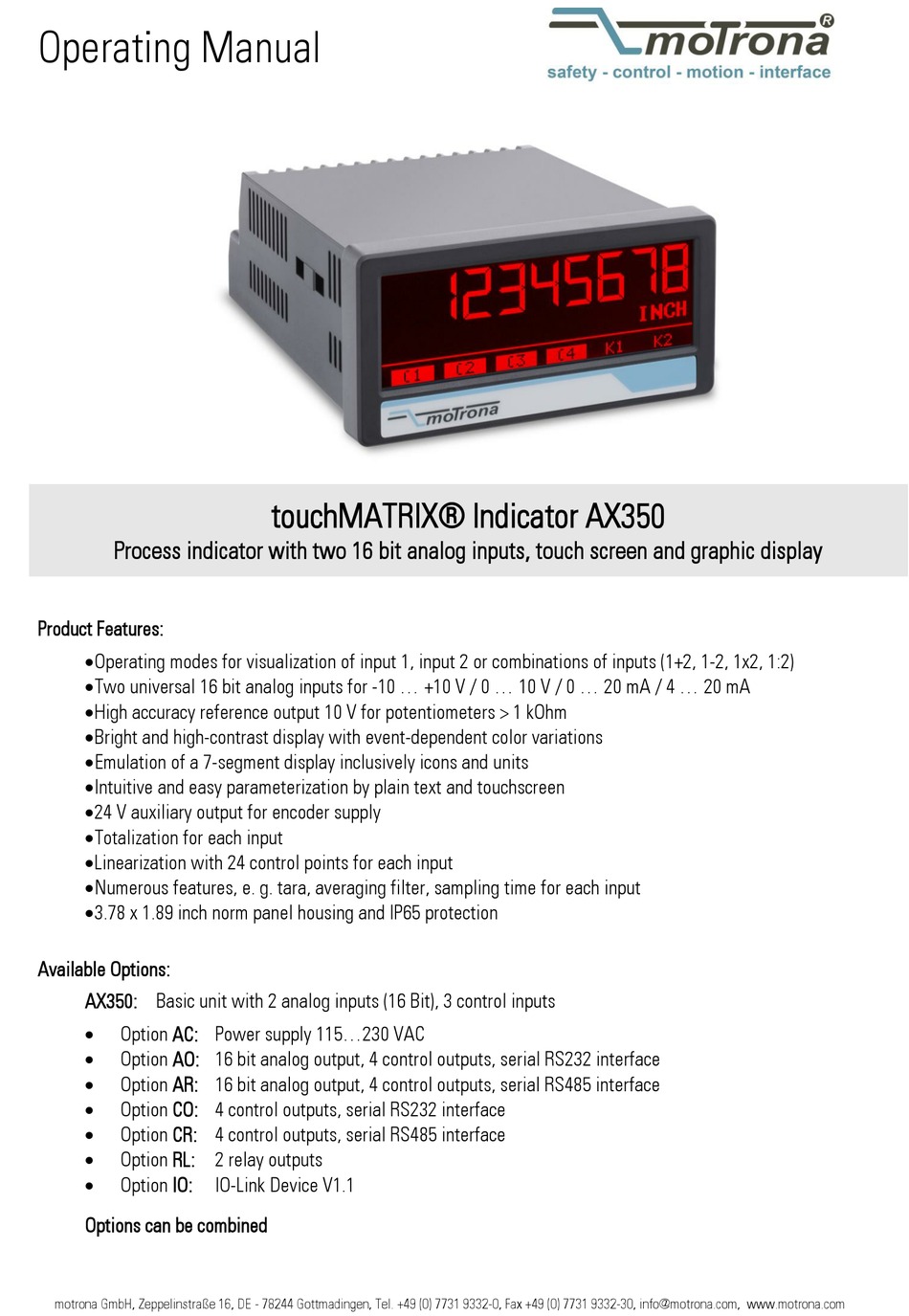

Motrona touchMATRIX AX350 Operating Manual

Process indicator with two 16 bit analog inputs, touch screen and graphic display

Advertisement

Quick Links

Operating Manual
Process indicator with two 16 bit analog inputs, touch screen and graphic display
Product Features:
 Operating modes for visualization of input 1, input 2 or combinations of inputs (1+2, 1-2, 1x2, 1:2)
 Two universal 16 bit analog inputs for -10 ... +10 V / 0 ... 10 V / 0 ... 20 mA / 4 ... 20 mA
 High accuracy reference output 10 V for potentiometers > 1 kOhm
 Bright and high-contrast display with event-dependent color variations
 Emulation of a 7-segment display inclusively icons and units
 Intuitive and easy parameterization by plain text and touchscreen
 24 V auxiliary output for encoder supply
 Totalization for each input
 Linearization with 24 control points for each input
 Numerous features, e. g. tara, averaging filter, sampling time for each input
 3.78 x 1.89 inch norm panel housing and IP65 protection
Available Options:
AX350: Basic unit with 2 analog inputs (16 Bit), 3 control inputs
Option AC: Power supply 115...230 VAC
Option AO: 16 bit analog output, 4 control outputs, serial RS232 interface
Option AR: 16 bit analog output, 4 control outputs, serial RS485 interface
Option CO: 4 control outputs, serial RS232 interface
Option CR: 4 control outputs, serial RS485 interface
Option RL: 2 relay outputs
Option IO:
Options can be combined
motrona GmbH, Zeppelinstraße 16, DE - 78244 Gottmadingen, Tel. +49 (0) 7731 9332-0, Fax +49 (0) 7731 9332-30, info@motrona.com, www.motrona.com
touchMATRIX® Indicator AX350
IO-Link Device V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the touchMATRIX AX350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Motrona touchMATRIX AX350

  • Page 1 Option CR: 4 control outputs, serial RS485 interface  Option RL: 2 relay outputs  Option IO: IO-Link Device V1.1 Options can be combined motrona GmbH, Zeppelinstraße 16, DE - 78244 Gottmadingen, Tel. +49 (0) 7731 9332-0, Fax +49 (0) 7731 9332-30, info@motrona.com, www.motrona.com...
  • Page 2 Extension with IO-link Legal notices: All contents included in this manual are protected by the terms of use and copyrights of motrona GmbH. Any reproduction, modification, usage or publication in other electronic and printed media as well as in the internet requires prior written authorization by motrona GmbH.
  • Page 3: Table Of Contents

    Table of Contents Safety Instructions and Responsibility................4 General Safety Instructions ......................4 Use according to the intended purpose ..................4 Installation ............................ 5 Cleaning, Maintenance and Service Notes ................. 5 Introduction ........................6 Operation mode ..........................6 Function diagram .......................... 7 Electrical Connections ......................
  • Page 4: Safety Instructions And Responsibility

    Safety Instructions and Responsibility General Safety Instructions This operation manual is a significant component of the unit and includes important rules and hints about the installation, function and usage. Non-observance can result in damage and/or impairment of the functions to the unit or the machine or even in injury to persons using the equipment! Please read the following instructions carefully before operating the device and observe all safety and warning instructions! Keep the manual for later use.
  • Page 5: Installation

    Please find all respective hints and rules on www.motrona.com/download.html --> “[General EMC Rules for Wiring, Screening and Earthing]”. Cleaning, Maintenance and Service Notes To clean the front of the unit please use only a slightly damp (not wet!), soft cloth.
  • Page 6: Introduction

    Introduction This series of display unit is suitable for analog signals (-10 … 10V or 0/4 … 20 mA). It is very versatile in use, due to the intuitive handling and the extensive range of functions and options. 2.1 Operation mode All functions are can be configured in the parameter menu.
  • Page 7: Function Diagram

    Function diagram Ax350_04a_oi_e.doc / May-18 Seite 7 / 54...
  • Page 8: Electrical Connections

    3 Electrical Connections The terminal screws should be tightened with a slotted screwdriver (blade width 2mm). DC Power Supply The unit accepts DC supply from 18 to 30 V at the terminals 1 and 2. The power consumption depends on the level of the supply voltage with aprox. 100 mA and the additional current required at the auxiliary voltage output.
  • Page 9: Analog Input

    Analog Input The reference potential (AGND) for the analog inputs is connected at terminal 5. The unit provides two 16 bit analog inputs at terminal 6 and 7. The characteristics of the analog inputs (voltage input or current input ) can be set in the Menu IN 1/IN 2 PROPERTIES. Important: Before connecting the sensor the configuration (voltage or current input) must be set! Wiring of the intrecmental inputs:...
  • Page 10: Control Inputs

    Control Inputs The three control inputs at terminal 10, 11 and 12 have HTL PNP characteristics. In the COMMAND MENU the programmable functions for the control inputs can be assigned. Available functions are: reset the display value, display switching, locking the touch screen or release the lock function of the control or relay outputs.
  • Page 11: Serial Interface (Option Ao/Ar/Co/Cr)

    Serial interface (Option AO/AR/CO/CR) A serial interface (RS232 or RS485) is available at terminal 16, 17 und 18. This interface can be configured in the SERIAL MENU. The serial interface RS232 or RS485 can be used:  for easy setup and commissioning of the units ...
  • Page 12: Ac Power Supply (Option Ac)

    Wiring of the control-outputs: AC Power supply (Option AC) The unit accepts AC supply from 115 to 230 V at the terminals 24 and 25. The power consumption depends on the level of the supply voltage with aprox. 3VA and the additional current required at the auxiliary voltage output.
  • Page 13: Io-Link (Option Io)

    These functions/data are defined in the IO-link master. For more information, see the graph in Chapter 2.2 of the function diagram and in our manual IOL_AX350 which is available for download from our homepage www.motrona.com. Ax350_04a_oi_e.doc / May-18 Seite 13 / 54...
  • Page 14: Display And Touch Screen

    Display and touch screen Screen structure for parametrization The parameter menus and the parameters are described in chapter 5. Start setup procedure: To edit the parameters, press the touchscreen for 3 seconds. Menu selection: Select the parameter menu via arrow buttons and confirm with “OK”.
  • Page 15: Screen Structure In Operation

    Screen structure in operation The following screens are available during operation. Depending on the device version and the selected operation mode, not all displays will be shown. The source (IN1, IN2, …) for the single channel display and the two channel display are defined in the DISPLAY MENU.
  • Page 16: Parameter / Overview-Menu Structure

    Parameter / Overview-Menu Structure This section provides an overview of the menus and their parameters. The menu names are printed bold and the associated parameters are listed under the menu name. Depending on the device version and the selected operation mode, only the necessary menus / parameters are shown. Menu / Parameter Menu / Parameter GENERAL MENU...
  • Page 17 Menu / Parameter Menu / Parameter IO LINK PROPERTIES PRESELECTION 4 MENU IN1 FACTOR SOURCE 4 IN1 DIVIDER MODE 4 IN1 ADDITIVE VALUE HYSTERESIS 4 IN1 DECIMAL POINT PULSE TIME 4 IN1 SCALE UNITS OUTPUT TARGET 4 IN2 FACTOR OUTPUT POLARITY 4 IN2 DIVIDER OUTPUT LOCK 4 IN2 ADDITIVE VALUE...
  • Page 18: General Menu

    General Menu OPERATIONAL MODE This parameter specifies the selected measuring function. SINGLE Single channel mode, only input 1 DUAL Dual channel mode, input 1 and input 2 separated IN1 + IN 2 Dual channel mode, sum of input 1 and input 2 IN1 –...
  • Page 19: In 1 Properties

    IN 1 Properties This menu defines the parameter for input 1. CONFIGURATION This parameter defines the configuration of input 1. -10 … 10 V -10 … 10 V 0 … 20 mA 0 … 20 MA 4 … 20 mA 4 …...
  • Page 20 Continuation “IN 1 Properties”: SAMPLING TIME (S) The configured value corresponds to the sampling interval. This time interval in seconds defines the time between the single samples of the analog signals. This parameter directly affects the response time of the unit. 0,001 Shortest sampling time 0,01...
  • Page 21: In 1 Linearization

    IN 1 Linearization The linearization points of input 1 are defined in this menu. This menu is shown only, if the linearization is selected in 1 PROPERTIES. Linearization description and examples are shown in the appendix. P1(X) … P24(X) X-coordinate of the linearization point. This value representing the display value which the unit show in the display without linearization.
  • Page 22: In 1 Totalization

    IN 1 Totalization The totalization function is defined in this menu. This menu will only be showed, if the totalization is active in Menu IN 1 PROPERTIES. The totalizator depends on the operation mode. See in the following list. Totalisation Operation mode INPUT 1 TOTAL INPUT 2 TOTAL...
  • Page 23: In 2 Properties

    IN 2 Properties This menu defines the parameter for input 2. CONFIGURATION Configuration of input 2, see IN 1 Properties START VALUE Display value of input 2 at 0 V or 0/4 mA, see IN 1 Properties END VALUE Display value of input 2 at +10 V or 20 mA, see IN 1 Properties DECIMAL POINT Position of the decimal point, see IN 1 Properties SCALE UNITS...
  • Page 24: In 2 Linearization

    IN 2 Linearization The linearization points of input 2 are defined in this menu. P1(X) … P24(X) X-coordinate of the linearization point, see IN 1Linearization. P1(Y) … P24(Y) Y-coordinate of the linearization point, see IN 1Linearization. IN 2 Totalization The totalization function is defined in this menu. TIME BASE The time base of the totalization, see IN 1 Totalization DIVIDER...
  • Page 25: Linkage Properties

    Linkage Properties In this menu the parameters for the linked operation mode are defined. This menu is shown only, if in GENERAL MENU an operation mode (z.B. IN1 – IN2) with link was selected. The parameters in Menu IN 1 PROPERTIES and IN 2 PROPERTIES have to be set, before using a linked operation mode.
  • Page 26: Io-Link Properties

    IO-Link Properties This menu defines the parameters for the display of the two output process data. This menu is only displayed if the device is equipped with the option IO (IO-Link Modul). IN1 FACTOR (Multiplication factor) This parameter defines the factor the received value is multiplied with. -99999999 Smallest value Default value...
  • Page 27: Preselection Values

    5.10 Preselection Values This menu is used to set the preselection values or the switching points. The preselection values / switching points are always referred to the display value. This menu is only available for devices with option CO, A0 or RL. PRESELECTION 1 (Preselection / switching point 1) -99999999...
  • Page 28 Continuation „Preselection 1 Menu“: The totalization depends on the operation mode. See chart in chapter IN 1 Totalization. MODE 1 Switching conditions for preselection 1. Output/ relay/ display switches under the following conditions: Absolute value of the display value is greater or equal absolute value of PRESELECTION 1 0 |RESULT|>=|PRES| With HYSTERESIS 1 not equal 0 the following switching condition is applied:...
  • Page 29 Continuation „Preselection 1 Menu“: PULSE TIME 1 (S) Duration of output pulse for the switching condition of preselection 1 0,000 No output pulse (static signal) … 60,000 Pulse duration of 60 seconds OUTPUT TARGET 1 Assignment of an output or relay for the switching condition of preselection 1. If more than one switching condition is assigned to one output / relay, the output is set when at least one switching condition is true 0 NO...
  • Page 30: Preselection 2 Menu

    5.12 Preselection 2 Menu SOURCE 2 The reference source for PRESELECTION 2, see PRESELECTION 1 MENU MODE 2 Switching conditions for preselection 2, see PRESELECTION 1 MENU (expect trailing preselection) See chapter PRESELECTION 1 MENU Trailing preselection 2: RES>=PRES-TRAIL Display value is greater or equal to PRESELECTION 1 – PRESELECTION 2 PRESELECTION 2 is the trailing preselection from PRESELECTION 1.
  • Page 31: Preselection 3 Menu

    5.13 Preselection 3 Menu SOURCE 3 The reference source for PRESELECTION 3, see PRESELECTION 1 MENU MODE 3 Switching conditions for preselection 3, see PRESELECTION 1 MENU (expect trailing preselection) See chapter PRESELECTION 1 MENU Trailing preselection 3: RES>=PRES- Display value is greater or equal to PRESELECTION 4 – PRESELECTION 3 TRAIL PRESELECTION 3 is the trailing preselection from PRESELECTION 4.
  • Page 32: Preselection 4 Menu

    5.14 Preselection 4 Menu SOURCE 4 The reference source for PRESELECTION 4, see PRESELECTION 1 MENU MODE 4 Switching conditions for preselection 4, see PRESELECTION 1 MENU (expect trailing preselection) See chapter PRESELECTION 1 MENU Trailing preselection 4: RES>=PRES- Display value is greater or equal to PRESELECTION 3 – PRESELECTION 4 TRAIL PRESELECTION 4 is the trailing preselection from PRESELECTION 3.
  • Page 33: Serial Menu

    5.15 Serial Menu This menu defines the basic settings of serial interface. This function is only available for devices with option CO or A0 UNIT NUMMER This parameter defines serial device addresses. The addresses between 11 and 99 can be assigned to the devices.
  • Page 34 Continuation „Serial Menu”: SERIAL PROTOCOL Determines the sequence of characters send, when using the serial output for cyclic data transmission under time control (xxxxxxx = value SERIAL VALUE). Setting „1“ removes the unit address from the string which allows a slight faster transmission cycle. Transmission report = Unit Nr., +/-, data, LF, CR Transmission report = +/-, data, LF, CR SERIAL TIMER (S)
  • Page 35: Analog Out Menu

    5.16 Analog Out Menu This menu defines the basic settings of the analog output. This function is only available for devices with option A0. ANALOG SOURCE This parameter defines the reference source for the Analog Output 0 INPUT 1 the reference source is input 1 1 INPUT 2 the reference source is input 1 2 LINKAGE 1 –...
  • Page 36 Continuation „Analog Out Menu“: ANALOG GAIN (%) This parameter specifies the maximum conversion of the analog output in %. e. g. 102.00 corresponds to a conversion of 10.2 V or 20.4 mA, when the ANALOG END value is reached. e. g. 95.00 corresponds to a conversion of 9.5 V or 18 mA, when the ANALOG END value is reached.. 0,00 Smallest gain 100,00...
  • Page 37: Command Menu

    5.17 Command Menu INPUT 1 ACTION This parameter defines the function of the input “Ctrl. In 1”. No function TARA INPUT 1 Value of input 1 is stored as an OFFSET of input 1 TARA INPUT 2 Value of input 2 is stored as an OFFSET of input 2 Value of input 1 is stored as an OFFSET of input 1 TARA INPUT 1+2 Value of input 1 is stored as an OFFSET of input 1...
  • Page 38: Display Menu

    Continuation „Command Menu”: INPUT 1 CONFIG This parameter defines the switching characteristics of the input “Ctrl. In 1”. ACTIVE LOW Active at „LOW“ (static) ACTIVE HIGH Active at „HIGH“ (static) RISING EDGE Activate at rising edge (dynamic) FALLING EDGE Activate at falling edge (dynamic) INPUT 2 ACTION This parameter defines the function of the input “Ctrl.
  • Page 39 Continuation „Display Menu:“ SOURCE DUAL TOP (Reference source for two-line display, first line) the reference source is input 1 INPUT 1 the reference source is input 2 INPUT 2 LINKAGE 1 – 2 the reference source is the result of the linking of input1 and input 2 the reference source is input 1 with totalization INPUT 1 TOTAL the reference source is input 2 with totalization...
  • Page 40 Continuation „Display Menu:“ BRIGHTNESS (%) This parameter defines the brightness of the display in percent Min. brightness Default value Max. brightness CONTRAST This parameter defines the viewing angle.. Viewing angle from top Viewing angle from center Viewing angle from bottom SCREEN SAVER (S) This parameter defines the time in seconds until the display is switched off, after the last touch action.
  • Page 41: Appendix

    Drivecom Protocol according to ISO 1745. All protocol details can be found in our manual SERPRO which is available for download from our homepage www.motrona.com. To request for a data transmission you must send the following request string to the converter:...
  • Page 42: Display Of Scale Units

    Display of scale units SCALE UNITS This parameter defines the required engineering unit. This parameter does not affect the calculation of the display value. The number of decimal places must be defined with the parameter DECIMAL POINT. Default km/h feet/min inch/min inch feet...
  • Page 43: Parameter / Serial Codes

    Parameter / serial codes # Menu Name Serial Code Value Default 0 GENERAL MENU OPERATIONAL MODE 1 GENERAL MENU PIN PRESELECTION 9999 2 GENERAL MENU PIN PARAMETER 9999 3 GENERAL MENU BACK UP MEMORY 4 GENERAL MENU FACTORY SETTINGS 5 GENERAL MENU 6 GENERAL MENU 7 GENERAL MENU 8 GENERAL MENU...
  • Page 44 Continuation „Parameterliste“: # Menu Name Serial Code Value Default 46 IN 1 LINEARIZATION P13(X) -99999999 99999999 47 IN 1 LINEARIZATION P13(Y) -99999999 99999999 48 IN 1 LINEARIZATION P14(X) -99999999 99999999 49 IN 1 LINEARIZATION P14(Y) -99999999 99999999 50 IN 1 LINEARIZATION P15(X) -99999999 99999999 51 IN 1 LINEARIZATION...
  • Page 45 Continuation „Parameter“: Menue Name Serial Code Value Default 90 IN 2 LINEARIZATION P1(X) -99999999 99999999 91 IN 2 LINEARIZATION P1(Y) -99999999 99999999 92 IN 2 LINEARIZATION P2(X) -99999999 99999999 93 IN 2 LINEARIZATION P2(Y) -99999999 99999999 94 IN 2 LINEARIZATION P3(X) -99999999 99999999...
  • Page 46 Continuation „Parameter“ Menue Name Serial Code Value Default 138 IN 2 TOTALIZATION BASE 139 IN 2 TOTALIZATION DIVIDER 140 IN 2 TOTALIZATION DECIMAL POINT 141 IN 2 TOTALIZATION SCALE UNITS 142 IN 2 TOTALIZATION 143 IN 2 TOTALIZATION 144 IN 2 TOTALIZATION 145 LINKAGE PROPERTIES FACTOR -99999999 99999999...
  • Page 47 Continuation „Parameter“ Menue Name Serial Code Value Default 184 PRESELECTION 2 MENU SOURCE 2 185 PRESELECTION 2 MENU MODE 2 186 PRESELECTION 2 MENU HYSTERESIS 2 99999 187 PRESELECTION 2 MENU PULSE TIME 2 60000 188 PRESELECTION 2 MENU OUTPUT TARGET 2 189 PRESELECTION 2 MENU OUTPUT POLARITY 2 190 PRESELECTION 2 MENU OUTPUT LOCK 2 191 PRESELECTION 2 MENU START UP DELAY 2...
  • Page 48 Continuation „Parameter“ Menue Name Serial Code Value Default 226 ANALOG OUT MENU ANALOG SOURCE 227 ANALOG OUT MENU ANALOG FORMAT 228 ANALOG OUT MENU ANALOG START -99999999 99999999 229 ANALOG OUT MENU ANALOG END -99999999 99999999 10000 230 ANALOG OUT MENU ANALOG GAIN % 11000 10000 231 ANALOG OUT MENU ANALOG OFFSET %...
  • Page 49 Serial codes of commands: Serial Code Command TARA INPUT 1 TARA INPUT 2 TARA INPUT 1 + 2 RESET TOTAL 1 RESET TOTAL 2 RESET TOTAL LINKAGE TEACH PRESELECTION 1 TEACH PRESELECTION 2 TEACH PRESELECTION 3 TEACH PRESELECTION 4 SCROLL DISPLAY CLEAR MIN/MAX VALUES CLEAR LOOP TIME ACTIVATE DATA...
  • Page 50: Linearization

    Linearization The linearization function of this unit allows converting a linear input signal into a non-linear developing (or vice versa). There are 24 programmable x/y coordinates available for input 1 and input 2, which can be set in any desired distance over the full conversion range. Between two coordinates, the unit uses linear interpolation.
  • Page 51 Application Example: We like to display the filling quantity (volume) of a tank as shown below, with use of a pressure sensor mounted to the bottom of the tank. With this application the analogue pressure signal is proportional to the filling level, but not to the filling quantity. Volume P16_x P16_y...
  • Page 52: Dimensions

    Dimensions Dimension in mm [inch] Ax350_04a_oi_e.doc / May-18 Seite 52 / 54...
  • Page 53: Technical Specifications

    Technical specifications Technical Specifications: Connections: Connector type: screw terminal, 1.5 mm² / AWG 16 Power supply (DC): Input voltage: 18 … 30 VDC Protection circuit: reverse polarity protection Consumption: approx. 100 mA (unloaded) Fuse protection: extern: T 0,5A Power supply (AC): Input voltage: 115…230 VAC, 50…60 Hz) (Option AC)
  • Page 54 Continuation “Technical specifications” Display: Type: Graphic LCD with backlight Display range: 8 Dekaden plus Vorzeichen (-99999999 … Digit height: 99999999) Color: 13 mm Operation: red/ green / yellow (switchable) resistive touchscreen Housing: Material: ABS, UL 94 V-0 Mounting: panel Dimensions (w x h x d): 96 x 48 x 116 mm / 3.78 x 1.89 x 4.56 inch Cut out (w x h): 91 x 43 mm / 3.58 x 1.69 inch...

Table of Contents
