EESiFlo 6000 Series Installation

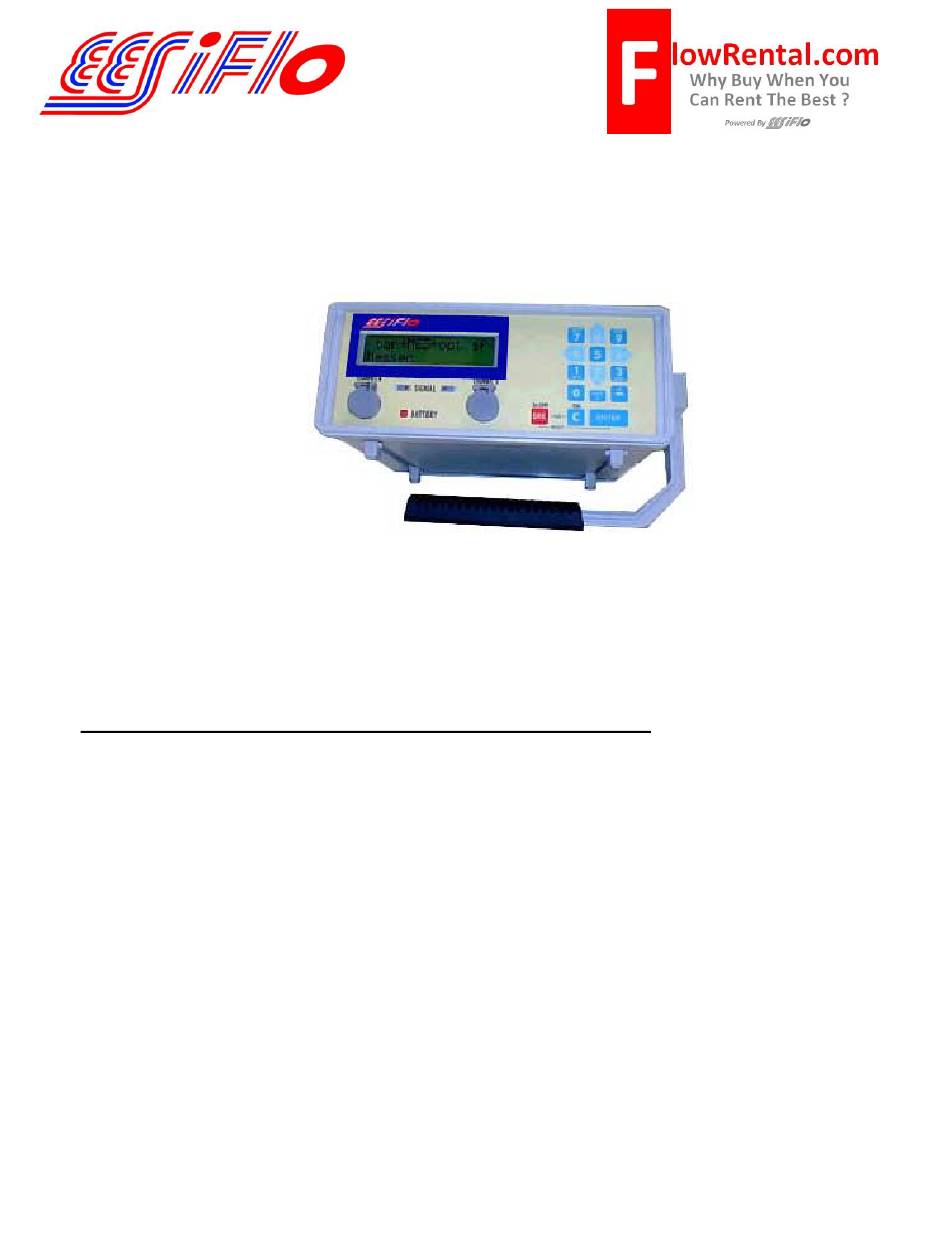

EESiFlo 6000 Series Ultrasonic Flow Computer
Setup of the 6000 Series Ultrasonic Flow Computer involves three simple steps.
1. Define the Parameters of the Pipe and Fluids (PAR on the main menu)
2. Select the Output Options (OPT on the main menu)
3. Enter the Measure Mode (MEA on the main menu)
Defining the Pipe and Fluid Parameters >PAR<
1) Start by turning the instrument
2) Plug the Transducers into the receptacle marked
automatically detect which transducers are installed by displaying that information on the LCD.
3) Using the 4 or 6 keys scroll to
ENTER
4) Press again to view
Channel B.
5) Enter the pipes
not the pipe size. For example a 2 inch pipe has an Outside Diameter of 2.375 inches.
6) Or, if the pipes diameter is not known, simply enter 0.00 and the 6000 will prompt you to enter
Pipe Circumference.
the
Wall Thickness
7) Next, enter
Pipe Material
8) Select a
YES
9) Answer or
Type
(using the 2 and 8 keys) and then the
