Attaching the Ethernet Cables

1. Plug one end of each Ethernet cable into a port on the Ethernet switch.
2. Route the 3' Ethernet patch cable through the top of the pedestal and plug the end into the
Ethernet port on the back of the BaseStation 3200 display board.

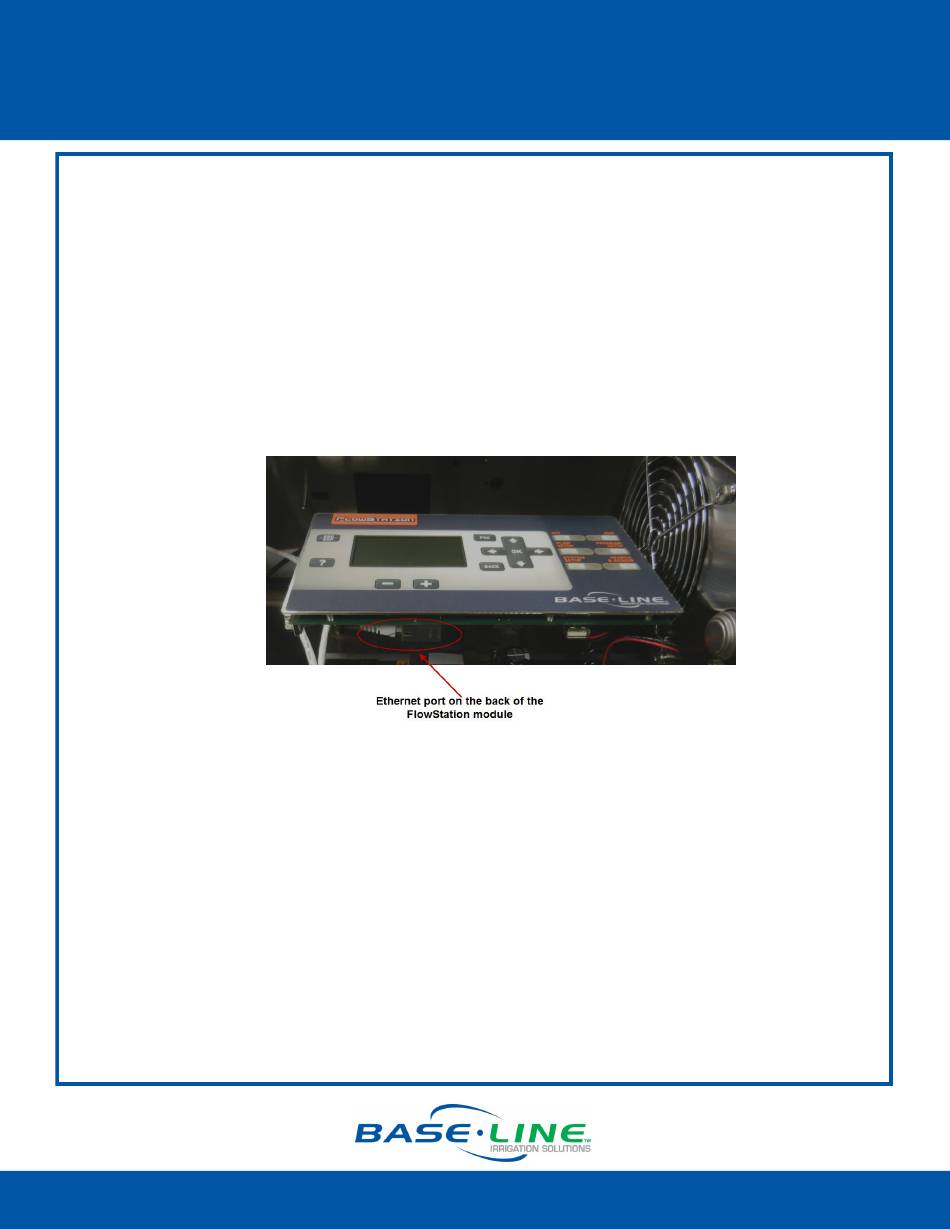

3. Plug another Ethernet cable into the Ethernet port on the back of the FlowStation module.
4. Attach an Ethernet cable to the communication module (such as a cell modem gateway or
Ethernet radio) and to one of the ports on the Ethernet switch. Repeat this step for any
additional communication modules.
5. In another Ethernet port, connect an Ethernet cable to the Ethernet wall jack, if needed.
IMPORTANT REMINDER!
Make sure that the shared flow biCoder (BL-3200UPG-SF) has been attached to the two-wire
path of the BaseStation 3200. Refer to the Shared Flow biCoder Installation Guide for instructions.

Turning the Power On

1. Remove the screw that fastens the key to the box.
IMPORTANT! Put the screw in a safe place because you will need to replace it later.
2. Insert the key into the on/off switch and press it up to turn the power on.
3. Remove the key and reattach it with the screw to prevent it from being misplaced.
4. Verify that the Power LED is illuminated on the BaseStation 3200 faceplate.
5. Turn the BaseStation 3200 dial to the Run position.
6. Refer to the FlowStation Quick Start Guide and the FlowStation User Manual for configuration
instructions.
