Power Connector Instructions - Baseline FlowStation Installation Manual

BL-FLOWSTN-P FlowStation Module

Power Connector Instructions

1. Locate the 5-pin splitter that is included with the Ethernet
switch.
2. Inside the pedestal, locate the pair of 5-pin connectors
on the upper end of the control board.

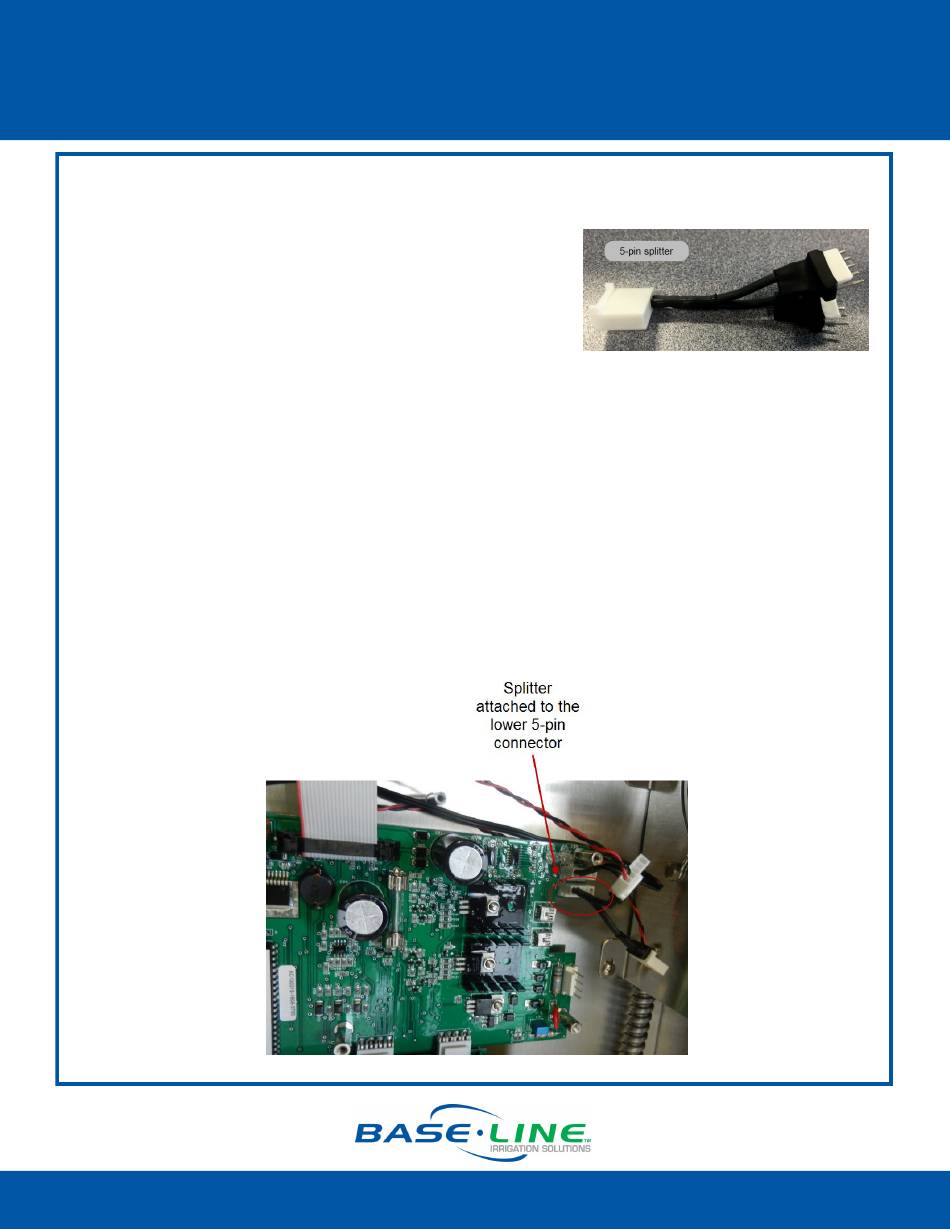

Note: The photo below shows the dust cover removed
from the control board. You may not need to remove the cover to access the 5-pin
connectors.
3. Carefully remove the plug from the lower connector.
4. Attach the 5-pin splitter onto the lower connector.
5. Attach the plug that you removed from the control board onto one of the connectors on
the 5-pin splitter.
6. Attach the end of the power cord from the Ethernet switch to the other connector on the 5-
pin splitter.
7. Continue with the Attaching the FlowStation Module instructions on the next page.
