BL-FLOWSTN-P FlowStation Module
Introduction
Baseline's FlowStation is available as an add-on
module that is installed inside a pedestal enclosure
with a BaseStation 3200 irrigation controller.
The FlowStation module comes with a 5-port
ruggedized Ethernet switch (BL-ETH-SW).
When the FlowStation is ordered with a BaseStation
3200 irrigation controller in a pedestal, the FlowStation
module is installed in the pedestal at the factory.
The following instructions describe the steps for
installing the add-on module into a pedestal that is
already in service.

Required Tools

You will need a Phillips head screwdriver.

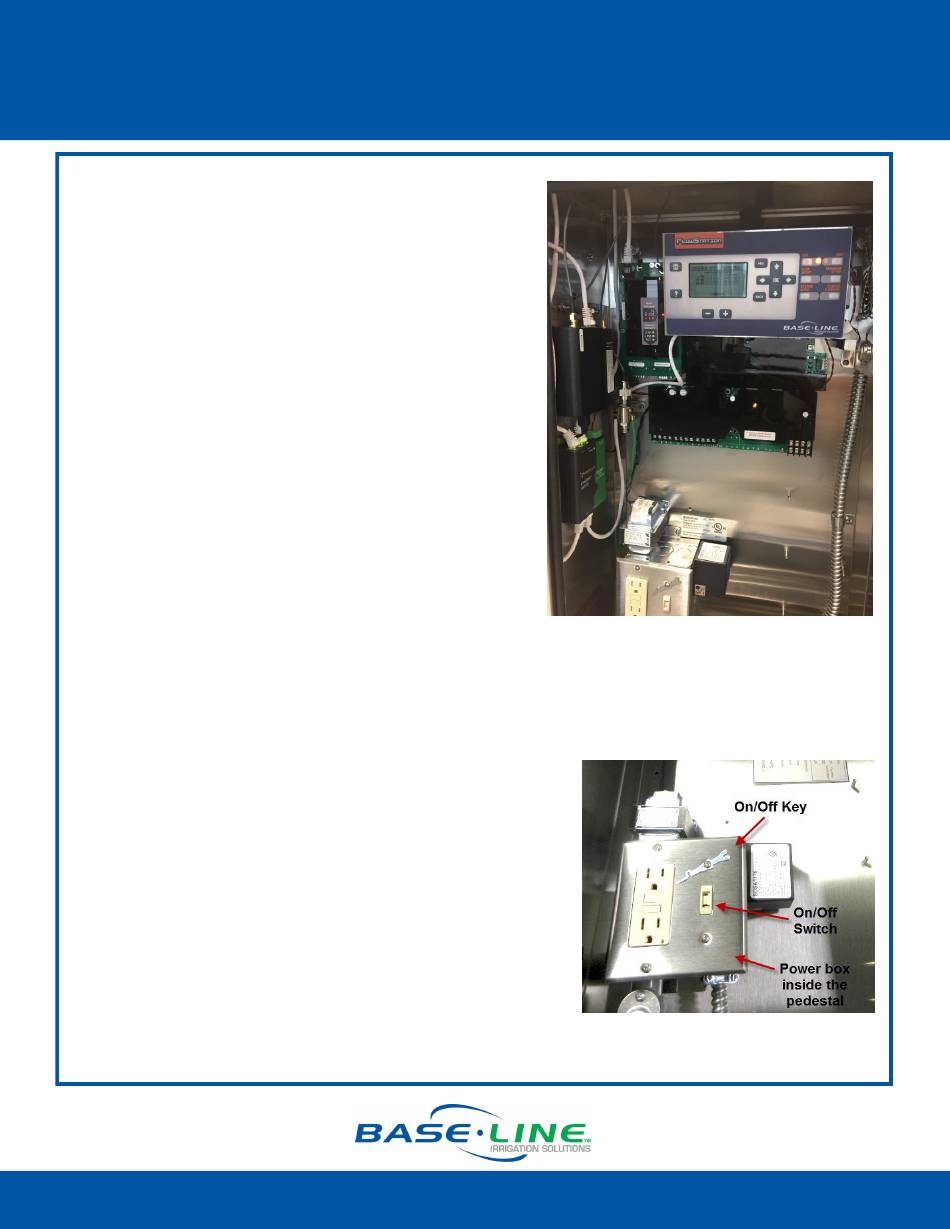

Shutting Down Power to the Pedestal

1. On the BaseStation 3200, turn the dial to the Off
position.
2. Open the lower door on the pedestal and locate the
on/off key on the power box.
3. Remove the screw that fastens the key to the box.
IMPORTANT!
Put the screw in a safe place because you
will need to replace it later.
4. Insert the key into the on/off switch and press it down
to turn the power off.
5. Remove the key and reattach it with the screw to
prevent it from being misplaced.
1-866-294-5847
Installation Guide
Rev 10.26.2016
www.baselinesystems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlowStation and is the answer not in the manual?

Questions and answers

Summary of Contents for Baseline FlowStation

  • Page 1 BaseStation 3200 irrigation controller. The FlowStation module comes with a 5-port ruggedized Ethernet switch (BL-ETH-SW). When the FlowStation is ordered with a BaseStation 3200 irrigation controller in a pedestal, the FlowStation module is installed in the pedestal at the factory.
  • Page 2 BL-FLOWSTN-P FlowStation Module Installation Guide Ethernet Switch Mounting Instructions 1. Before proceeding, verify that the power is off. The LEDs on the BaseStation 3200 faceplate should not be illuminated. 2. Move the Ethernet radio module out of the way: Remove the screws used to mount the Ethernet radio module to the back wall. You ...
  • Page 3 5-pin splitter. 6. Attach the end of the power cord from the Ethernet switch to the other connector on the 5- pin splitter. 7. Continue with the Attaching the FlowStation Module instructions on the next page. 1-866-294-5847 www.baselinesystems.com Rev 10.26.2016...
  • Page 4 5. Verify that the screw with the washer is securely seated in the V-shaped notch on the mounting plate, and then tighten the two screws at the top of the FlowStation module. 6. Attach the FlowStation power cable to the connector on the right side of the BaseStation 3200 control board.
  • Page 5 Ethernet port on the back of the BaseStation 3200 display board. 3. Plug another Ethernet cable into the Ethernet port on the back of the FlowStation module. 4. Attach an Ethernet cable to the communication module (such as a cell modem gateway or Ethernet radio) and to one of the ports on the Ethernet switch.
