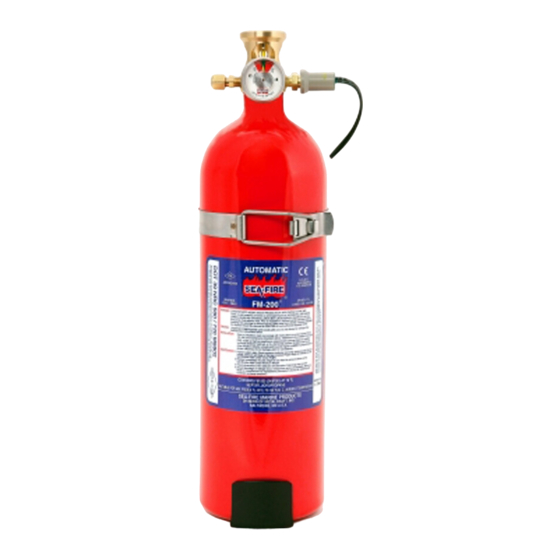

FM200
MODEL FT
FIRE EXTINGUISHERS
Installation INSTRUCTIONS
OWNER'S MANUAL
THIS MANUAL IS AN INTEGRAL PART OF THE SYSTEM AND AS SUCH, THE
EXTINGUISHER MUST BE INSTALLED AND MAINTAINED ACCORDINGLY.
READ AND COMPLY WITH THESE INSTRUCTIONS, WARNINGS
AND LIMITATIONS BEFORE INSTALLING.
SUITABLE FOR USE
FT MODELS: 32°F – 130°F ( 0°C – 54°C)
ALWAYS MAINTAIN THIS OWNER'S MANUAL NEARBY
FOR OPERATOR REFERENCE.
APPROVALS
FACTORY MUTUAL - FM # 3022058
U.S. COAST GUARD - U.S.C.G. # 162.029/241
REV. A
PRINTED IN USA
PART NO. 123-186
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sea-Fire FM200
Summary of Contents for Sea-Fire FM200

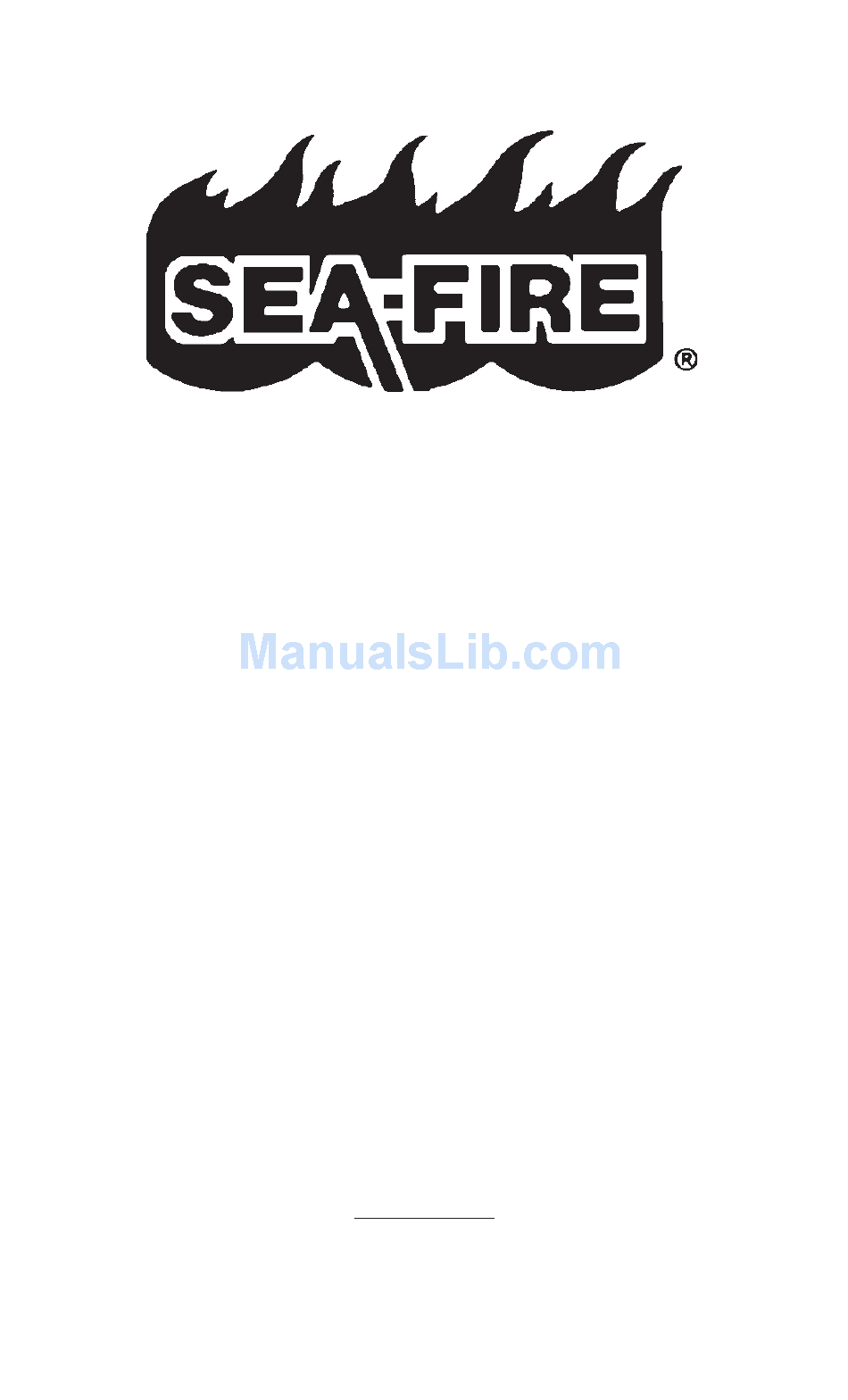

- Page 1 ® FM200 MODEL FT FIRE EXTINGUISHERS INSTALLATION INSTRUCTIONS OWNER’S MANUAL THIS MANUAL IS AN INTEGRAL PART OF THE SYSTEM AND AS SUCH, THE EXTINGUISHER MUST BE INSTALLED AND MAINTAINED ACCORDINGLY. READ AND COMPLY WITH THESE INSTRUCTIONS, WARNINGS AND LIMITATIONS BEFORE INSTALLING.
- Page 2 AWAY FROM HEAT. KEEP AWAY FROM CHILDREN. FM-200 ® (CF3CHFCF3), the extinguishing agent, used in all Sea-Fire “FT’’ series fire extin- guishers, is a suitable EPA accepted alternate replacement for Halon. FM-200 nonconductive and residue free extinguishing agent that requires no cleanup.
- Page 3 Sea-Fire units described in this manual are automatically actuated by a heat actuated tube. Discharge will occur as a result of direct flame impingement. The Sea-Fire FT system uses the supplied length of temperature sensitive tubing as both detection and delivery system.
- Page 4 5. DO NOT LIFT OR CARRY CYLINDER BY THE MANIFOLD OR ACTUATOR COMPO- NENTS. 6. DO NOT ATTEMPT TO LOOSEN OR REMOVE ANY EXTINGUISHER COMPONENT. 7. DO NOT ATTACH SEA-FIRE EXTINGUISHER ON UNDERSIDE OF COVER OR COM- PARTMENT HATCH THAT COULD BE THROWN CLEAR DUE TO POSSIBLE EX- PLOSION.
- Page 5 Step 8 Secure the detection tubing to the bulkhead by using the clips and screws supplied. Nylon wire ties may be used in lieu of the clips and screws. Note: Do not exceed a bend radius of 6 inches during the routing of the tube. WHEN INSTALLING THE DETECTION TUBING, DO NOT KINK THE TUBING AND DO NOT EXCEED THE MINIMUM BEND RADIUS.
- Page 6 The indicator light (unless re- placed by another Sea-Fire method) must be installed for system supervision and operator awareness. When properly installed, activation of electrical power to the system will illumi- nate the light indicating normal charged condition.
- Page 7 System on Boats, copies of which may be obtained from ABYC, Edgewater, MD, USA 21037, 410-956-1050. Supplies, which are not included with your Sea-Fire system, should be at hand before indicator light installation, are as follows: 1. Five (5) ampere in-line fuse and holder 2.
- Page 8 Contact Sea-Fire or an authorized Sea-Fire dealer for details. THREE (3) YEAR FT SERIES LIMITED WARRANTY We warranty to the original retail purchaser all SEA-FIRE extinguishers for a period of three (3) years after retail purchase against defective material and faulty workmanship, any sys-...
- Page 9 All Sea-Fire products are tested after manufacture and shipped in perfect working order. Damage noted upon receipt of shipment should be addressed as a shipping claim, the filing of which is the sole responsibility of the consignee for which the total compensatory award will be limited to that appropriated by the carrier.
- Page 10 ALL FT (STINGER) MODELS ARE APPROVED FOR VERTICAL MOUNTING ONLY. INTENDED OPERATING TEMPERATURE RANGE : 32°F –130°F (0°C – 54°C ) STANDARD EQUIPMENT LIST SUPPLIED WITH EACH SYSTEM 1. ONE TUBING KIT, PART # 130-121 – 10 FOOT TUBE 130-122 – 15 FOOT TUBE. 2.
- Page 11 Inhalation of high concentrations can be harmful or fatal due to oxygen deprivation and/or heart irregularities. Fire Extinguisher cylinders are pressurized. Although unlikely, a cylinder could be propelled and cause bodily injury and/or property damage if the valve is broken due to improper handling or storage.
- Page 12 Section 7 — Handling and Storage Handle, transport and store carefully and securely to avoid accidental knocking over or other severe physical impacts. Do not expose to direct heat sources. Do not over-pressurize. Section 8 — Exposure Controls/Personal Protection Respiratory: None Protective Gloves: Leather gloves are recommended when handling cylinders.
- Page 13 Metalcraft/Sea-Fire Marine, Inc., it is the user’s obligation to determine the conditions of safe use of this product. The information in this document is offered with no warranties or representations as to accuracy or completeness and it is the responsibility of each individual to determine the suitability of the information for their particular purpose(s).
- Page 14 SEA-FIRE MARINE Division of Metalcraft Inc. 9331-A Philadelphia Road Baltimore, Maryland 21237 USA SEA-FIRE EUROPE LTD Unit 7. io Centre. Stephenson Road Fareham, Hampshire PO15 5RU, United Kingdom Website: www.sea-fire.com...
