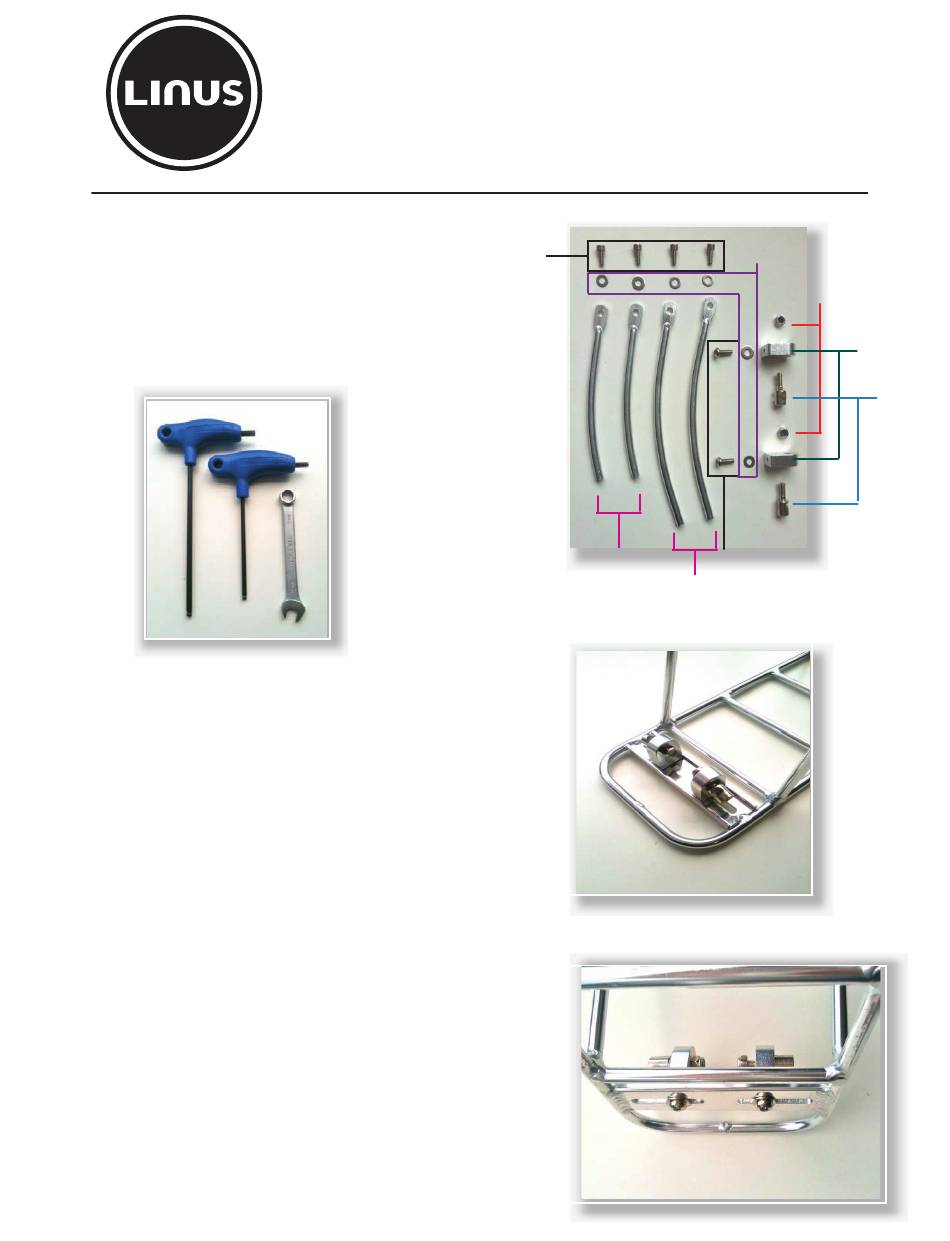

ADJUSTABLE REAR RACK
INSTALLATION
REQUIRED TOOLS:
•
5mm Hex Wrench
•
4mm Hex Wrench
•
10mm Box Wrench
[SEE FIGURE 1. ]
FIGURE
INCLUDED HARDWARE:
•
M4 X 12mm bolts (4)
•
M4 X 15mm bolts (2)
Washers (6)
•
•
Adjustable Brackets (2)
•
Adjustable bracket bolts (2)
•
Short Arms (2)
•
Long Arms (2)
•
10mm Locknuts (2)
[SEE FIGURE 2. ]
Ensure Adjustable Bracket Bolts are inserted through
•
Adjustable Brackets with 10mm Locknuts threaded
onto Bracket Bolts. Do not tighten down. Place the
Adjustable Bracket onto bottom side of rear rack within
the slotted face.
*Do note the 10mm Locknuts are positioned on the
inside against the flat side of the Adjustable Brackets.
[SEE FIGURE 3. ]
• While the Adjustable Brackets are in place insert
M4 X 15mm bolts with washers through the slot and
thread into Adjustable Brackets. Do not tighten down.
[SEE FIGURE 4. ]
M4x12mm Bolts (4)
1.
guide
Washers (6)
Short
M4x15mm Bolts (2)
Arms (2)
Long
Arms (2)
FIGURE 3.
FIGURE 3.
10mm Locknuts (2)
Adjustable
brackets (2)
Adjustable
Bracket
Bolts (2)
FIGURE 2.
FIGURE 4.
Advertisement
Table of Contents
Related Manuals for Linus Adjustable Rear Rack
Summary of Contents for Linus Adjustable Rear Rack
- Page 1 ADJUSTABLE REAR RACK guide INSTALLATION REQUIRED TOOLS: M4x12mm Bolts (4) • 5mm Hex Wrench Washers (6) • 4mm Hex Wrench 10mm Locknuts (2) • 10mm Box Wrench Adjustable brackets (2) [SEE FIGURE 1. ] Adjustable Bracket Bolts (2) FIGURE 2.
- Page 2 [SEE FIGURE 7. ] • Using a level or by eye ensure the Adjustable Rear Rack is level to the ground. Tighten all nuts and bolts. Adjustable Rear Rack is installed. FIGURE 6. [SEE FIGURE 8. ] FIGURE 6. FIGURE 7.
