Summary of Contents for Udirc Neon U51

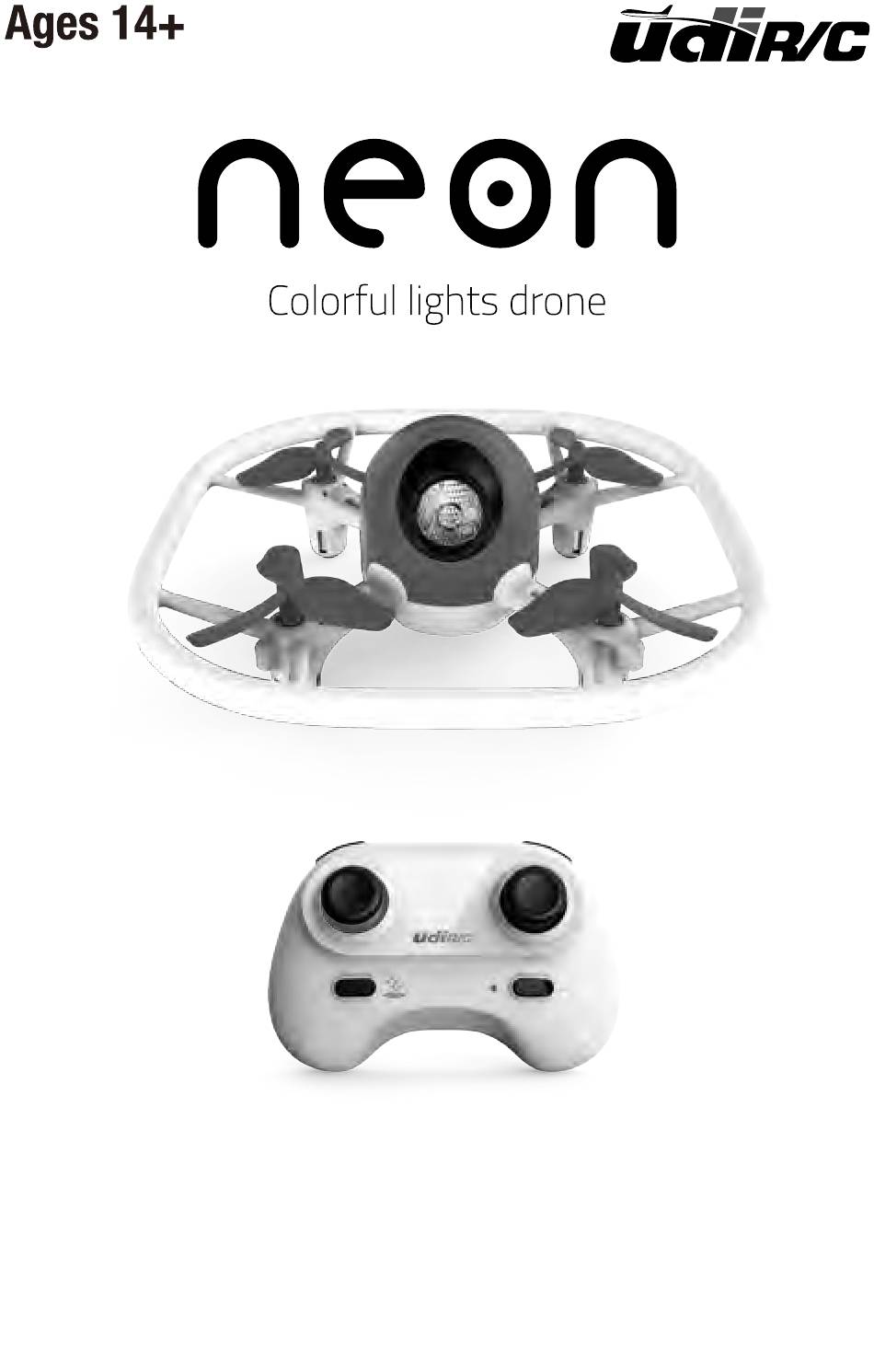

- Page 1 Operations Guide...
-
Page 2: Table Of Contents
Catalog Instruction for Drone and Transmitter Installing & Removing Spare Parts Pre-Flight Checklist Pre-Flight Operation Instructions Functions Spare Parts Troubleshooting... -
Page 3: Instruction For Drone And Transmitter
Instruction for Drone and Transmitter Drone Lampshade （Front） A Propeller B Propeller Left Right Drone upper housing B Propeller A Propeller Charging port (Rear) Cushion Cushion Drone bottom housing Cushion Cushion Power Switch... - Page 4 Specification Drone size 150x150x59mm Flying Time 6~7 mins Fly Weight 63.2g Motor 8520x4 Propeller Diameter Ø50mm Remote Frequency 2.4Ghz Drone battery 3.7Vx500mAh Max Flying Distance/Radius 30 m Charging Time for Drone Battery 90 mins Exploded View...
- Page 5 Name Name A Propeller Drone bottom housing B Propeller Cushion Propeller Power switch button Clockwise motor( Red blue wire) Drone upper housing Counterclockwise motor( White black wire) Drone battery Receiver board 13 Front LED LED strip Transmitter Heading Hold...
- Page 6 Brief Introduction for Button Functions Move the Stick to forward / backward / left / right to fly the drone to up / Left Stick down / turn left / turn right. Move the Stick to forward / backward / left / right to fly the drone to forward / Right Stick backward / left / right.
-
Page 7: Installing & Removing Spare Parts
Parts installation Charging Instruction for Drone Battery 1. Connect the drone battery with USB cable first and then choose one of the method as below picture shown to connect with USB plug. 2. The red USB indicator light keeps bright when charging and the light turns green when fully charged. -
Page 8: Pre-Flight Checklist
Check List Before Flight 1. Make sure the drone battery and transmitter battery are fully charged. 2. Make sure the Left Stick of the transmitter in the middle position. 3. Please strictly obey the order of turn on and turn off before operation. - Page 9 Pull the Left Stick all the way down to the lowest position and then release. The Left Stick will back to the middle position automatically. The power indicator light flashes slowly, which indicates the transmitter is ready for frequency pairing.
- Page 10 Take Off Move the left stick and right stick at the same time 45 degree inward. (This operation is used for starting/ locking the motors. When the motors are working, it could be used to stop the motors urgently.) Push the left stick up slowly, the drone will take off.
- Page 11 Flying Control Push up the stick, then the drone flies up. Pull down the stick, then the drone goes down. Left Stick Move the stick to the left, then the drone turns to left. Move the stick to the right,...
- Page 12 Push up the stick, then the drone flies forward. Right Stick Pull down the stick, then the drone goes backward. Move the stick to the left, then the drone turns to left. Move the stick to the right, then the drone turns to right.
- Page 13 Forward and backward trimmer When take off, if the drone tilts forward, press down the trimmer button, and push the right stick backwards. Otherwise push forwards. Left and right turning trimmer When take off, if the drone head rotates to left, then press down the trimmer button and push the left stick to right.
-
Page 14: Functions
Functions Introduction One button take off/Landing、Emergency stop One Button Take Off After frequency pairing successful or motors activated, press the Take Off / Landing / Emergency Stop Button, the drone will fly up automatically and keep flying at an altitude of 1.5 meters approximately. - Page 15 Picture 3 Altitude Hold Center Notice: If the propeller is deformed or motor is damaged, Altitude Hold Mode will fail. If the atmospheric pressure is instability, Altitude Hold Mode will fail. High / Medium/Low Speed Mode Switch 1. Low Speed Mode(Mode 1) Low Speed Mode is suitable for beginner.
- Page 16 Heading Hold Mode Drones generally have a front and rear indicated by LED lights or colored propellers. By default, the users are required to tell the front and the rear of the drone when flying. Under heading hold mode, the users can operate the drone without worrying about the orientation (left is left and right is right all the time, regardless of where your drone is pointing at).
- Page 17 * Press down Heading hold mode button, the drone’s LED ring will start flashing alternately, quick flash 3 times and stop,it shows the drone enters Heading hold mode, press the button again, then the LED gets solid and the drone ESC from heading hold mode.
-
Page 18: Spare Parts
Spare Parts For convenience, the spare parts are listed for you to choose, which can be purchased from the local seller. U51-01 U51-02 U51-03 Drone upper housing Drone bottom housing A Propeller U51-04 U51-05 U51-06 B Propeller Lampshade Power switch button... - Page 19 U51-10 U51-11 U51-12 LED strip Drone battery USB cable U51-13 U51-14 U51-15 Clockwise motor Counterclockwise motor Transmitter ( Red blue wire) ( White black wire) Important Notice Our company's products are improving all the time, design and specifications are subject to change without notice.
-
Page 20: Troubleshooting
www.udirc.com... - Page 21 www.udirc.com...
- Page 22 FCC Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 23 FCC Notice The equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. Modifications not authorized by the manufacturer may void user’s authority to operate this device.
