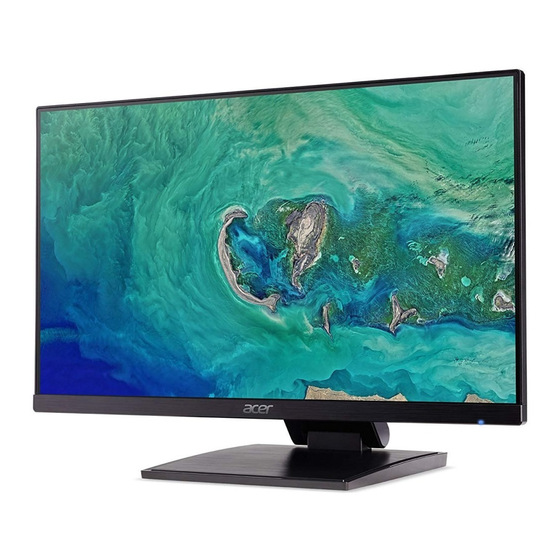

Acer UT241Y User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Acer LCD Monitor
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UT241Y and is the answer not in the manual?

Questions and answers

Related Manuals for Acer UT241Y

Summary of Contents for Acer UT241Y

  • Page 1 Acer LCD Monitor User Guide...
  • Page 2 Serial number: ___________________________________ Date of purchase: ________________________________ Place of purchase: ________________________________ Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies’ product names or trademarks are used herein for identification purposes only and belong to their respective companies.

  • Page 3: Information For Your Safety And Comfort

    Safety instructions Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. Acer monitor is purposed for video and visual display of information obtained from electronic devices. Special notes on LCD monitors The following are normal with the LCD monitor and do not indicate a problem.

  • Page 4: Safe Listening

    Accessibility Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power from the equipment, be sure to unplug the power cord from the electrical outlet. Safe listening To protect your hearing, follow these instructions.

  • Page 5: Product Servicing

    • If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

  • Page 6: Potentially Explosive Environments

    We at Acer are very conscious of the environmental effects of our business and strive to identify and provide the best working procedures to reduce the environmental impact of our products.

  • Page 7: Lcd Pixel Statement

    LCD pixel statement The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction. This product has been shipped enabled for power management: •...

  • Page 8: Taking Care Of Your Vision

    Taking care of your vision Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room lighting, poorly focused screens, very small typefaces and low-contrast displays could stress your eyes. The following sections provide suggestions on how to reduce eyestrain. Eyes •...

  • Page 9: Declaration Of Conformity

    (“x” = 0~9, a ~ z, A ~ Z, or blank) We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Directive and following harmonized...

  • Page 10: Federal Communications Commission Declaration Of Conformity

    Acer America Corporation 333 West San Carlos St., San Jose Suite 1500 CA 95110, U. S. A. Tel : 254-298-4000 Fax : 254-298-4147 www.acer.com Federal Communications Commission Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following...
  • Page 11 Information for your safety and comfort Safety instructions Special notes on LCD monitors Cleaning your monitor Accessibility Safe listening Warnings Using electrical power Product servicing Potentially explosive environments Additional safety information IT Equipment Recycling Information Disposal instructions LCD pixel statement Tips and information for comfortable use Finding your comfort zone Taking care of your vision...
  • Page 12 Please check that the following items are present when you unpack the box, and save the packing materials in case you need to ship or transport the monitor in the future. LCD monitor Quick start guide AC Power cord LCD Monitor UT1 series-UT241Y USER GUIDE HDMI Cable VGA cable USB Type C-C cable...

  • Page 13: Screen Position Adjustment

    SCREEN POSITION ADJUSTMENT In oder to optimize the best viewing position, you can adjust the tilt of the monitor. • Tilt Please see the illustration below for an example of the tilt range. Only at the highest point can 88 degrees of recline be offered for the angle of elevation.

  • Page 14: Connecting The Adapter And Ac Power Cord

    Connecting the adapter and AC Power cord • Check first to make sure that the power cord you use is the correct type required for your area. • The monitor has a universal power supply that allows operation in either 100/120 V AC or 220/240 V AC voltage area.

  • Page 15: Display Data Channel (Ddc)

    Display Data Channel (DDC) To make installation easier, so long as your system supports the DDC protocol, the monitor is able to plug-and-play. The DDC is a communication protocol through which the monitor automatically informs the host system about its capabilities; for example, supported resolutions and corresponding timing.
  • Page 16 19-pin color display signal cable PIN No. Description PIN No. Description TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved (N.C. on device) DDC/CEC Ground +5V Power Hot Plug Detect...

  • Page 17: Standard Timing Table

    SSTXn2 SSTXn2 SSTXp2 SSTXp2 * only for certain models Standard timing table VESA MODE MODE Resolution 640x480 60Hz 640x480 66.662Hz VESA 720x400 70Hz SVGA 800x600 56Hz SVGA 800x600 60Hz 1024x768 60Hz 1024x768 70Hz VESA 1152x864 75Hz SXGA 1280x1024 60Hz VESA 1280x720 60Hz WXGA...

  • Page 18: Installation

    Installation Turn off your computer and unplug your computer's power cord. Connect the signal cable to the VGA (optional) and/or HDMI (optional) input socket of the monitor, and the VGA (optional) and/or HDMI (optional) output socket of the graphics card on the computer. Then tighten the thumbscrews on the signal cable connector.

  • Page 19: User Controls

    User Controls External controls Function key Main page Press to view . Press again to enter hotkey1 function. When the Function Menu is active, press this key selected or move to the next function. Function key Main pag Press to view e.Press again to enter hotkey2 function.

  • Page 20: Using The Shortcut Menu

    Using the Shortcut Menu ------------------------------------------------------------------------------------------------------------- Note: The following content is for general reference only. Actual product specifications may vary. The OSD (On Screen Display) can be used to adjust the settings of your LCD monitor. Press the MENU key to open the OSD. You can use the OSD to adjust the picture quality and general settings.

  • Page 21: Main Menu

    done, use Select and close the current menu. Input Input HDMI Auto Source Main Menu Open the Function page to adjust the Picture, Color, Audio, Performance, OSD and System functions, settings which you want using the arrows. You can also view your monitor’s system information from this page.
  • Page 22 Contrast: Adjust the contrast from 0 to 100. ----------------------------------------------------------------------------------------------------------- Note: Sets the degree of difference between light and dark areas. Black Boost: Adjust the black level from 0 to 10. ----------------------------------------------------------------------------------------------------------- Note: Enhances shadows by increasing the brightness without changing lighter shades.
  • Page 23 Color Mode - Standard Picture Gamma Color Colour Temp. Warm Audio R Gain Pertormance G Gain B Gain System R Bias Information G Bias B Bias Mode - Standard Picture Modes sRGB Mode Off Color 6-axis Hue Audio 6-axis Saturate Pertormance System Information...
  • Page 24 Audio Mode - Stardard Picture Volume Color Audio Pertormance System Information Press the Menu hot key to open the OSD. Using the ▲/▼ keys, select Audio from the OSD. Then navigate to the picture element you wish to adjust. Use the ◄/► keys to select the setting or adjust the sliding scales. Volume: Adjust the volume Performance Mode - Standard...
  • Page 25 Mode - Standard Picture Language English Color OSD Timeout Audio Transparency Off Pertormance OSD Lock Off System Information Press the Menu hot key to open the OSD. Using the ▲/▼ keys, select OSD from the OSD. Then navigate to the picture element you wish to adjust.

  • Page 26: Product Information

    Press the Menu hot key to open the OSD. Using the ▲/▼ keys, select System from the OSD. Then navigate to the picture element you wish to adjust. Use the ◄/► keys to select the setting. Input: Select the source from VGA IN, HDMI, or DP ALT.

  • Page 27: Troubleshooting

    Troubleshooting Before sending your LCD monitor for servicing, please check the troubleshooting list below to see if you can self-diagnose the problem. VGA IN/HDMI/DP ALT Mode (Optional) Problem LED status Remedy No picture visible Blue Using the OSD menu, adjust brightness and contrast to maximum or reset to their default setting.
