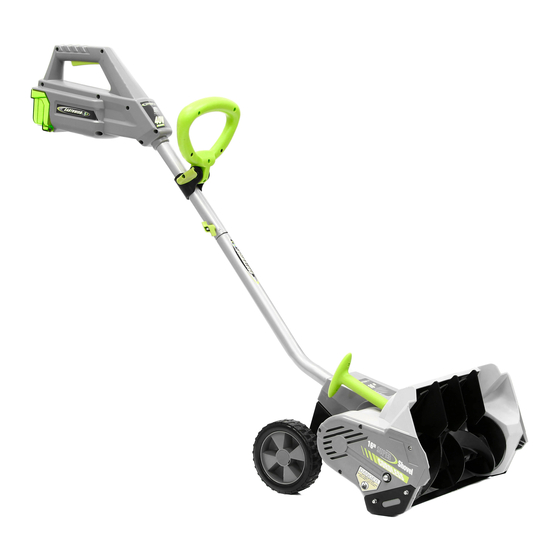

EarthWise SN74016 Operator's Manual

16-in snow thrower
Hide thumbs Also See for SN74016:

Advertisement

Table of Contents

OPERATOR'S MANUAL
16-IN Snow Thrower
This product is covered by U. S. patents and other international patents
Copyright All Rights Reserved.
Model SN74016
This product has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator's manual
before using this product.
Thank you for your purchase.
DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING, ASSEMBLY, PARTS, SERVICE QUESTIONS?
CALL 1-800-313-5111 BETWEEN 7:30AM-4:30PM EST FOR ASSISTANCE.
BATTERY MUST BE CHARGED BEFORE FIRST USE.
SAVE THIS MANUAL FOR FUTURE REFERENCE
1090

Advertisement

Table of Contents
loading

Related Manuals for EarthWise SN74016

Summary of Contents for EarthWise SN74016

  • Page 1 16-IN Snow Thrower This product is covered by U. S. patents and other international patents Copyright All Rights Reserved. Model SN74016 1090 This product has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
  • Page 2 SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. Precautions that involve your safety. CAUTION! Read the instruction manual and follow the warning and safety instructions! CAUTION! Remove plug from outlet immediately if the cable is damaged or cut.

  • Page 3: Important Safety Warnings

    IMPORTANT SAFETY WARNINGS TO REDUCE RISK OF INJURY: Before any use Save these instructions and review frequently prior be sure everyone using this product reads and to use and in instructing others. understands all safety instructions and other WARNING: When using electric appliances, basic information contained in this manual.

  • Page 4: Safety Rules For Charger

    GENERAL SAFETY CAUTION: Auger does not stop immediately after If the snow thrower starts to vibrate abnormally, the snow thrower is turned off. turn it off immediately and check for the cause. Vibration is generally a warning of trouble. CAUTION: Risk of injury. Do not put hands, feet or any body part or clothing near the rotating auger.

  • Page 5: Product Specifications

    PRODUCT SPECIFICATIONS Model: SN74016 Input: 40V, DC only Sweep width: 16 inches (406 mm) Battery: 40V, 4.0 Ah Lithium-ion Max clearing depth: 8 inches (200 mm) Charging time: 2.5 hours Throwing distance: Up to 32 feet Battery run time: 25-40 minutes...
  • Page 6 ASSEMBLY This product must be correctly assembled before use. Adjust knob (Fig. 1C) Align the rib on the spindle with the notch on the adjust Handle (Fig. 1A) knob and push the adjust knob onto the spindle. Secure the knob with the ST4.0x50 Philips head self tapping Slide the lower section (C) into the upper section (B).
  • Page 7 ASSEMBLY Wheel bracket (Fig. 1E) Auxiliary handle (Fig. 2) Align the holes on the wheel bracket with the holes on Position the auxiliary handle so that the holes are in the upper cover. Secure into place with ST3.9x45 Philips alignment with the holes in the handle support bracket. head self tapping screws in the two (2) top holes and the Insert the M6X50 hex head bolt into the hex shaped bolt ST3.9x55 Philips head self tapping screws in the two (2)
  • Page 8 OPERATING On/Off Switch (Fig. 4) Clear snow often, before it gets too deep. It is best to remove the snow as soon as possible after it falls. WARNING: The auger starts rotating immediately after the snow thrower is switched on. Keep hands Lift the auger up slightly before starting the snow thrower.
  • Page 9 OPERATING For large areas a definite pattern of operation is required with de-icing salt or a shovel. to thoroughly clean an area of snow. These patterns will avoid throwing snow in unwanted places as well as After clearing the snow, continue to run the snow thrower eliminating a second removal of snow.

  • Page 10: Maintenance And Storage

    MAINTENANCE AND STORAGE Before carrying out maintenance operations, remove the battery pack. Regular cleaning and maintenance of your snow thrower 3. Move the left side cover (8) downward to loosen the will ensure efficiency and prolong the life of the product. belt (6).
  • Page 11 MAINTENANCE AND STORAGE Auger (Fig. 8, 13) 4. When reassembled ensure all screws and nuts are properly tightened. CAUTION Check fasteners before each use. A loose auger can result is excessive vibration and Scraper blade (Fig. 14) damage the snow thrower. The scraper blade is a wear item and should be replaced To replace the auger: when necessary.

  • Page 12: Charging The Battery Pack

    CHARGING THE BATTERY PACK The 40 volt battery supplied is sealed, maintenance free A small leakage of liquid from the battery cells may and spill free. occur under extreme usage, charging or temperature conditions. This does not indicate a failure. However, if Charge the battery pack only with the charger provided.
  • Page 13 CHARGING THE BATTERY PACK LED status Battery status Voltage 1 Green Approx. 20% Full 31V less 2 Green Approx. 50% Full 31V to 35V 3 Green Approx. 75% Full 35V to 38V 4 Green Full 38V more BATTERY DISPOSAL Remove the battery pack from the snow thrower. Cover the terminals with heavy duty adhesive tape. Do not attempt to destroy or disassemble battery pack or remove any components.

  • Page 14: Troubleshooting

    • SERIAL NUMBER CALL US FIRST !! Call us first with questions about operating or maintaining this product at 1.800.313.5111 between 7:30 a.m. – 4:30 p.m. Eastern Standard Time, or send emails to earthwise@reelin.com. The Great States Corporation American Lawn Mower Company...

  • Page 15: Parts List

    PARTS LIST Pos. Description Handle Auxiliary handle complete Wing nut Cover Motor Drive belt Wiring trough Left cover plate 1 Small pulley M8 Nut Left cover plate 2 Driven pulley Pulley frame Washer Bolt M5x12 Friction plate Scraper blade Auger Auger axle Trigger Safety lock off button...
  • Page 16 OPERATOR’S MANUAL 16-IN Snow Thrower This product is covered by U. S. patents and other international patents Copyright All Rights Reserved. WARRANTY This product is manufactured for The Great States Corporation/American Lawn Mower Company. The Great States Corporation/American Lawn Mower Company, Shelbyville, Indiana, has been making lawn mowers for over 100 years and it warrants to the original owner that each new product and service part is free from defects in material and workmanship and agrees to repair or replace under this warranty any defective product or part from the original date of purchase for two (2) years except...
