INSTALLATION MANUAL T-MEDIUM AND T- LONG BRACKET
First of all, congratulations
for your choice.
We are pleased to showcase
you this universal
projector ceiling bracket,
which is easy to install and can
be used for nearly all LCD and
DLP projectors up to 30 kg.
Before you install
ceiling bracket, read all the
instructions carefully and follow
the installation procedures
step by step.

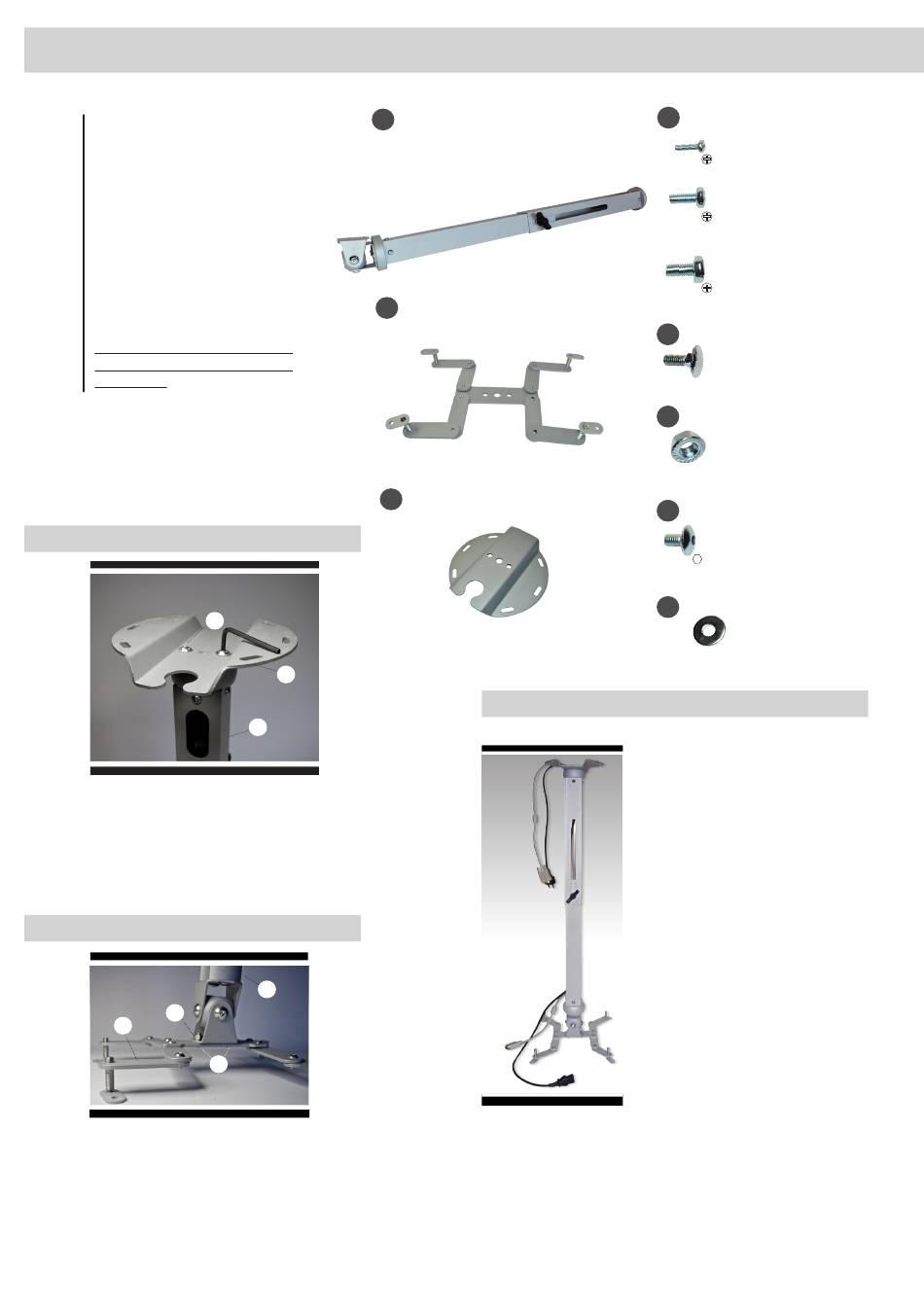

Inside the packaging you
will find the following
elements:

STEP 1

B
Fig. 1
Position parts (C) and (A) like in Fig. 1.
Mount part (C) to part (A) using the 2 screws (G).
Check that the space for the cables on the ceiling
plate is mounted at the same side as the cable
hole on the variable column.

STEP 2

F
B
G
Fig. 2
Take parts (B) and (A) and mount them using the
screws (E) and the nuts (F) like shown in Fig. 2.
Be sure that the screws (E) are very well tightened,
so the elements (B) and (A) are anchored in a safe
way.
- 01 extendable column variable from
A
51 to 75. (T-Medium bracket).
or extendable column variable from
69 to 112,5 cm. (T-Long bracket)
video
the
- 01 universal spider bracket to
B
fit on the projector
C
- 01 ceiling mounting plate
C
A
A

STEP 3

Insert the power cable and signal
cables through the holes in the
variable column (A) like shown in Fig.
3, and let the cable come out again
through the hole at the lower end of
the variable column.
Fig. 3
D
- 04 crowned head screws
3x10 mm. (diameter x lenght)
- 04 crowned head
4x10 mm. (diameter x lenght)
- 04 crowned head screws
5x10 mm. (diameter x lenght)
- 02 screws needed to fix
E
the spider at the joint
F
- 02 nuts needed to fix
the spider at the joint
G
- 02 knurled socket head
screws needed to fix the
column to the ceiling plate
- 04 washers
H
screws
