Summary of Contents for Indian Creek Design B2K

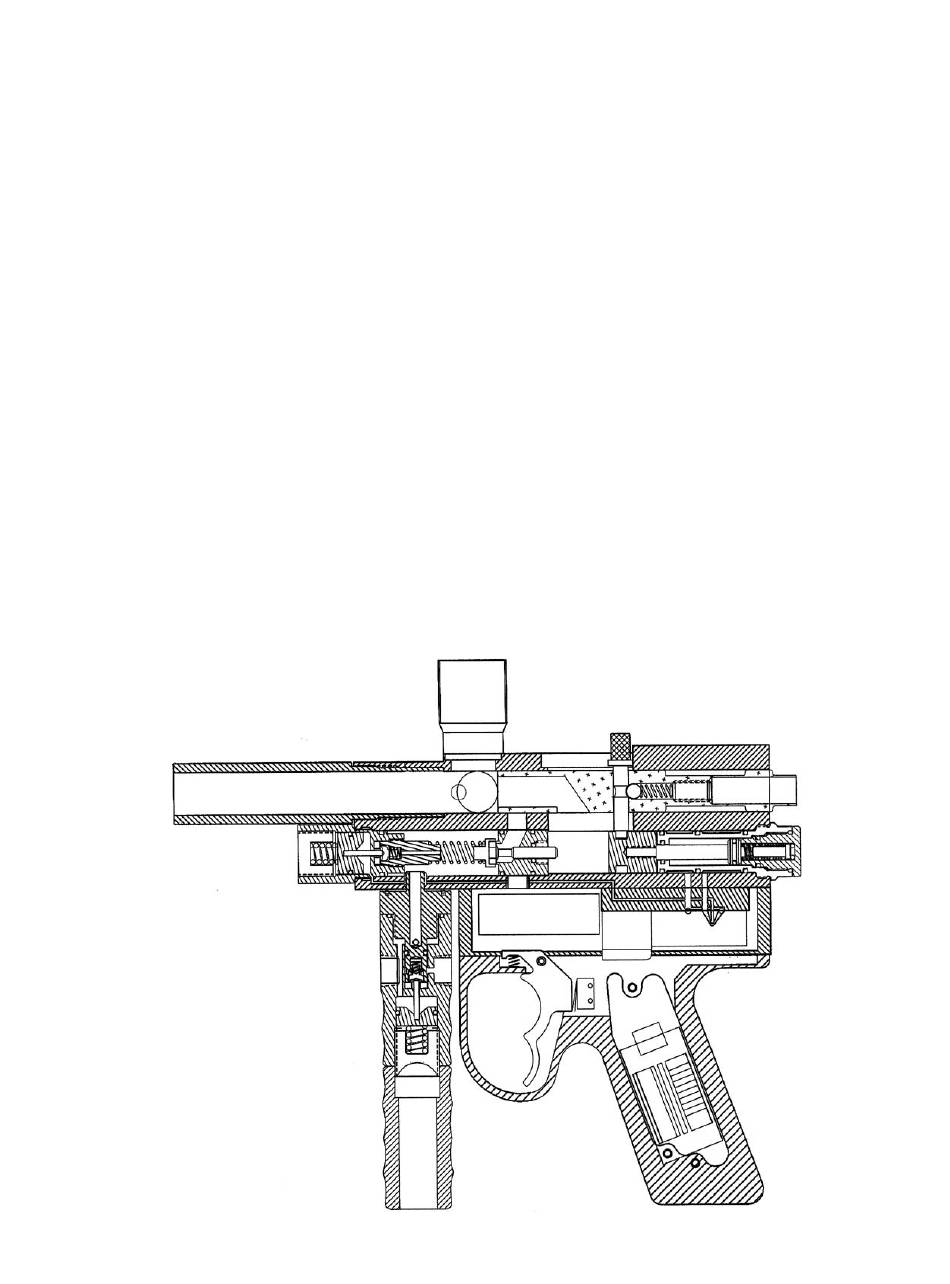

- Page 1 Indian Creek Design, Inc. 2003 Standard Model Assembly Manual...
- Page 2 Feed Tube and Ball Detent Assembly……………………………………………..5 B2K Low Pressure Regulator Assembly…………………………………………..6 B2K Valve Assembly……………………………………………………………...7 B2K Cylinder Assembly…………………………………………………………..8 Bolt Assembly……………………………………………………………………..9 B2K Manifold and ASA Adaptor……………………………...………………….10 High Pressure Regulator Assembly……………………………………………….11 Trigger and Grip Assembly……………………………………………………….12 Final Assembly of B2K Upper and Lower Receiver..……………………………15 Testing Instructions……………………………………………………………….16 Appendix: Parts List……………………………………………………………...17...
- Page 3 Introduction: The B2K Standard Model paintball gun is relatively easy to assemble. You will need the proper tools and equipment, including a vise, red and blue loctite, Dow 33 Clear Lithium Grease, and assorted allen keys and screwdrivers. It is easiest to assemble in relatively the same order as these pages.
- Page 16 Testing Instructions: Screw in barrel 202010 and make sure the barrel threads in smoothly. Connect battery to the battery terminal inside grip. Air up marker with regulated 850 p.s.i. compressed air or nitrogen. Set high pressure regulator to 225 p.s.i. by screwing in adjustment screw on side of regulator.
- Page 17 Indian Creek Design B2K Part No. Item Description Qty per marker 9300 Board 203010 Barrel 202020 HP Reg Upper Body 202021 HP Reg Middle Body 202022 HP Reg Cup Housing 202052 HP Regulator Piston 202073 Valve Spring 964073 Bolt Retention Spring...
- Page 18 8-32x1/2S 8-32x1/2 Set Screw 982030PK Four Way Solenoid Valve 982030PKG Solenoid Gasket D1/4MACROHOSE 1/4" Macroline Hose 302030 Valve Seal D700LPG 700 p.s.i. Gauge DGRIP-SL Left Grip Panel DGRIP-SR Right Grip Panel HAR-101 Wiring Harness 935075 Regulator Cup Spring 952076 Regulator Main Spring 982052 Regulator Cup 992006...
