Insignia NS-50D421NA16 Quick Setup Manual

INCLUDED ACCESSORIES
Remote control and
two AAA batteries
+ + A
Stand bases
M4 screws (20 mm length) (4 pcs.)
Power cord
FEATURES
WALL MOUNT ACCESSORIES
M6 screws (30 mm length) (4 pcs.)
Spacers (4 pcs.)
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then
click Support & Service. Enter
NS-50D421NA16 in the box under
Manual, Firmware, Drivers & Product
►
Information, then click .
STOP
Do not plug your power cord in until all
other devices have been connected.
START HERE
1
How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface and
Phillips screwdriver
Place your TV face-down on a cushioned, B Make sure that the arrows on the bottoms of the stands point the same direction as the TV screen.
clean surface. Align the screw holes on the TV stands with the holes on the bottom of your TV, then secure each
stand with two of the M4 × 20 mm screws.
A
M4 x 20 mm screws
CH
VOL VOL
MENU
CH
AV IN
L R
- AUDIO -
P P
HDMI1/ARC
USB
COMPONENT IN
Before using your new product, please read these
instructions to prevent any damage.
B
M4 x 20 mm screws
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device, such as a DVD or Blu-ray disc player or game console?
WHICH CABLES
DO YOU HAVE?
HDMI
(BEST)
Best video quality
HDMI1/ARC
COMPONENT
(BETTER)
OR
AV
(GOOD)
Note: The component and AV jacks
are shared. This means you can connect
only one component or AV device at a
time. We suggest upgrading to HDMI
(BEST) if your device supports it.
COAXIAL
(GOOD)

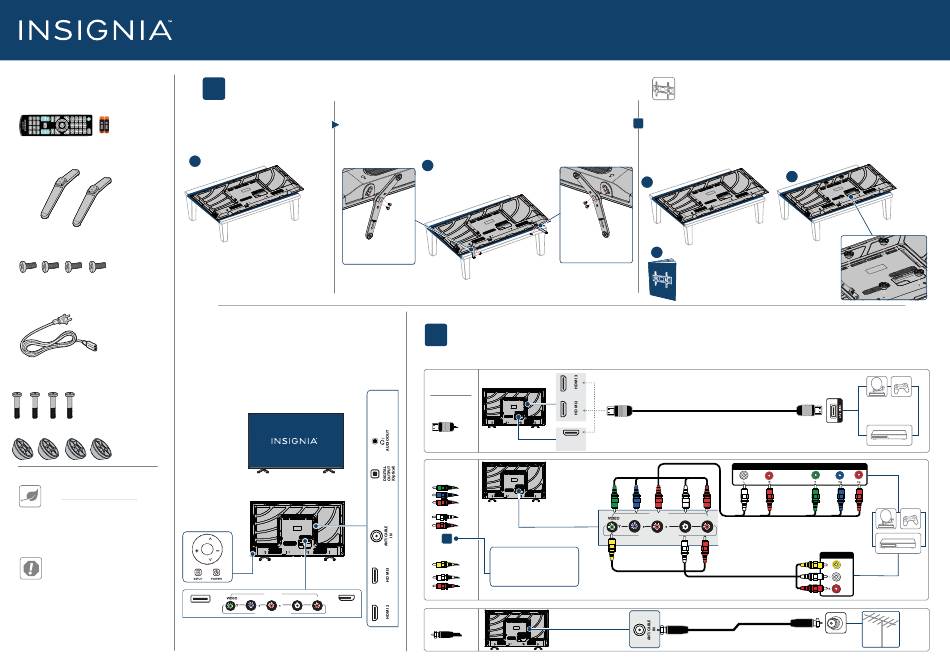

Quick Setup Guide
WALL MOUNT
How do I prepare my TV for wall mounting? (not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface.
B Insert the four provided spacers into the mount screw holes on the back of your TV, then attach
OR
the wall-mount bracket to your TV using either the four M6 × 30 mm screws (provided)or the
screws that came with the wall-mount bracket.
Warning: This apparatus is intended to be supported by a UL Listed wall-mount bracket.
C See the instructions that came with your wall-mount for more information about which screws to
use and how to correctly mount your TV.
A
C
Your TV has four VESA mounting holes on the back. If you attach a
wall-mount bracket to the back of your TV, the bracket must
be securely attached, using all four holes. If you do not use
all four mounting holes, your TV may fall and cause property
damage or personal injury. See the documentation that
came with your wall-mount for complete mounting
instructions.
Multi-purpose jacks: You can plug any device that uses HDMI into any HDMI jack. However,
certain devices must be connected to the HDMI/ARC jack. See the instructions that came with
your device for more information.
AUDIO/VIDEO OUT
AV IN
L - AUDIO - R
P P
COMPONENT IN
Note: Connect the yellow
video cable to the green
VIDEO/Y jack.
| -

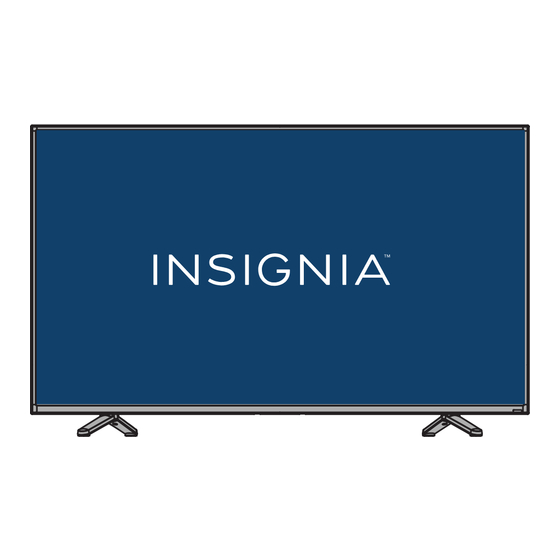

NS 50D421NA16
50" 1080p 60 Hz DLED TV
B
AUDIO/VIDEO OUT
CABLE
