TMP Citrocasa Revolution 10.000 Original Instruction page 27

5.1.2. Emergency case - resetting
In case of not solving the blockage of the machine with pressing the buttons, the machine can be
reset via allen key.
Please consider the following steps in the resetting of the machine:
• Pic. 31: Press the power switch to turn off the machine.
• Pic. 32/33: Pull the allen key out of the holder that is located at the machine base.
(Machine tend laterally) (a usual allen key, size 8, is also useable)
• Pic. 34: Remove the round plastic cap, which is located on the backside of the machine and
run the allen key pass.
• Pic. 35: In order to lift the blockade of the machine, turn the conclusions in any direction.
• Attention: Please put out the crank key before starting the machine!!!
• Now you can switch the machine on and press the SB-tap.

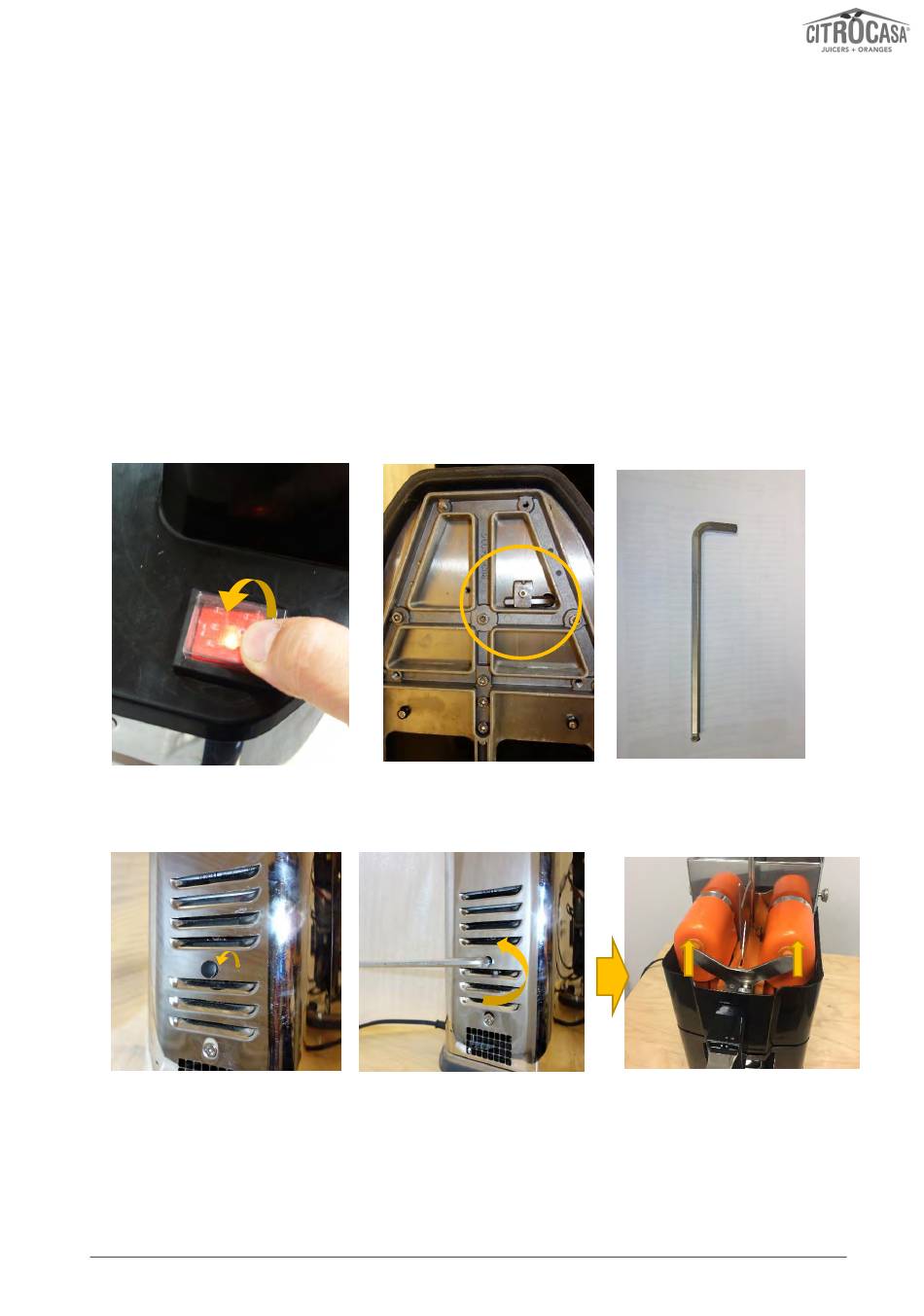

Picture 31: Maschine main switch
Picture 34: Allen keyhole
Attention: Please do not forget do put out the crank key before
27
Picture 32: Allen key fixation
Picture 275: Turning - allen key
starting the machine!!!
Picture 33: Allen key
Picture 36. Movement of pressing elements
