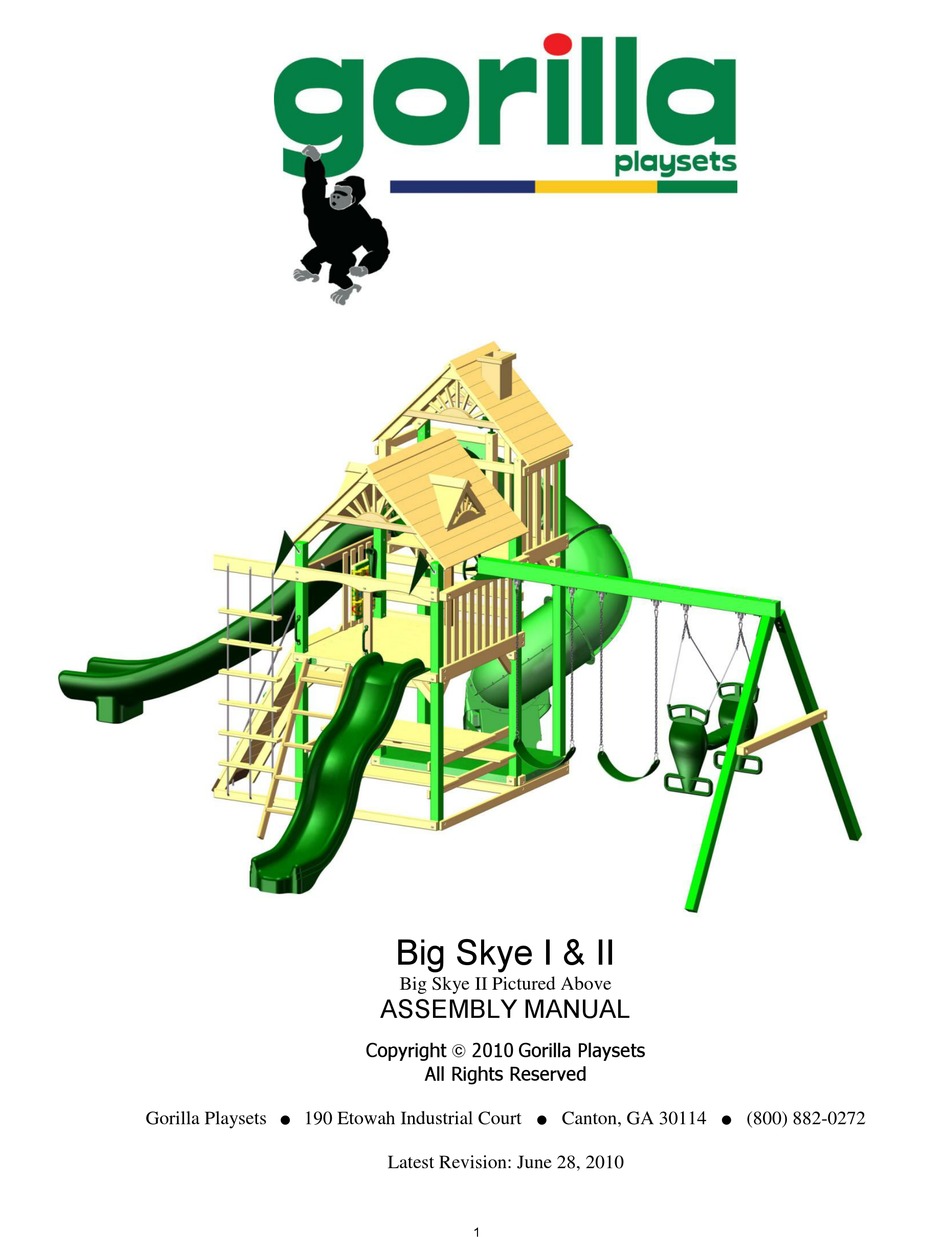

Big Skye I & II
Big Skye II Pictured Above
ASSEMBLY MANUAL
Copyright 2010Gorilla Playsets
All Rights Reserved
190 Etowah Industrial Court
Gorilla Playsets
Canton, GA 30114
(800) 882-0272

Latest Revision: June 28, 2010
