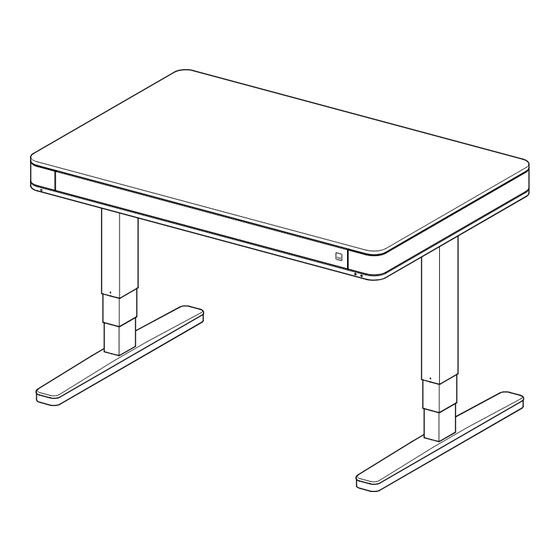

- Page 1 T 7 / T 7 XL Electrically adjustable desk for the living area Operating Manual with Safety Instructions and EC Declaration of Conformity 06. 2018...
-
Page 2: Safety Instructions
Safety Instructions It is essential to read this operating instruction thoroughly before commissioning the table. Caution: The sit-stand table may be used only for its intended use as a writing and working table for the living area. Caution: This sit-stand table is not designed for continuous operation. The table top height can be adjusted without interruption for no longer than the operating time indicated in this manual(2 min on / 18 min off). - Page 3 Safety Instructions Danger: This unit can be used by children aged 8 years and above and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they are supervised or have been instructed in the safe use of the unit and understand the hazards involved.
-
Page 4: Check For Completeness
Check for completeness moll T7 / T7 XL 06. 2018 2 1 5 rear side with power management... - Page 5 5 0 c m Safety Instructions To avoid crushing or shearing hazards, the desk with its moving parts must keep a minimum distance of 50 cm to adjacent objects such as furniture, building parts etc. When adjusting the table top height, the user must make sure that nobody can be injured and no objects can get damaged.
- Page 6 Levelling the desk Note The desk must be aligned horizontally with the adjustment plates. Thus, the best stability is achieved.
- Page 7 Moving the desk Note To move the desk, simply raise the front. Now it can be easily moved back and forth on the integrated castors.
- Page 8 Mains voltage: 220 - 230 V / 50 - 60 Hz Caution Make sure that the cable length is also sufficient when the tabledesk is in the top position. Route the cable so that it is not likely to trip over it. Danger! Should the power cord become damaged, unplug the desk immediately!
- Page 9 Note The key switch protects against unauthorized height adjustment of the table. When the key is removed in the „off“ position, the table can not be adjusted accidentally or on purpose. Caution Caution! Remove key during use. Please do not leave the key in the lock - risk of injury!
-
Page 10: Upward Desktop Movement
Upward desktop movement When adjusting the table top height, please make sure that the table movement will not get blocked (e.g. by window sills, chair armrests, file cabinets etc.)and that no persons are located in the hazardous area or will reach into it. Note As delivered, the desk's height adjustment requires two-hand operating for safety reasons. -
Page 11: Downward Desktop Movement
Downward desktop movement Note Maximum operation time: 2 minutes of continuous operation, the control unit is automatically disabled for the next 18 minutes! The operation duration is then automatically limited to this period. This prevents the table drive from overheating. -
Page 12: Important Safety Note
Enabling single-hand operating The table can be permanently set to single-hand operating so it can be adjusted using the "UP" and "DOWN" keys without pressing the left button. Please disconnect the mains plug from the socket before changing this setting! Remove the plastic cover on the right bottom side of the desk (4 screws, see picture) to get access to the toggle switch. - Page 13 Container-stop / Shelf-stop positions Container-stop and shelf-stop position These two functions can be used to limit the range of movement of the sit-stand table (e.g. if a file cabinet is located under the sit-stand table). A container-stop position can be set only in the lower half of the movement range, a shelf-stop position only in the upper half of...
-
Page 14: Height Adjustment
Height adjustment The desktop height is infinitely adjustable from 56 cm to 118 cm (with height adapter from 66 cm to 128 cm - see page 20) sitting standing ± 10 cm 127 cm ~56 cm ~80 cm 135 cm ~59 cm ~85 cm 143 cm... - Page 15 Opening the drawer press the center of the drawer front and the drawer opens Closing the drawer press the center of the drawer front and close the drawer until it engages with a clicking sound max. 6 kg...
- Page 16 Power-Management with integrated power outlets...
- Page 17 Please make sure that you plug in the connectors and power supplies so that they are not damaged and that no wires get pinched when the drawer is closed.
- Page 18 Cable feedthrough...
- Page 19 Accessories Flexlight flexible LED desklight moll L7 flexible LED desklight...
- Page 20 Accessories Height adaptor to increase the desktop height by 10 cm The desktop height with this adaptor is adjustable from 66 cm to 128 cm QI Wireless Charger This table can be upgraded with a QI charger for wireless charging of electronic devices.
- Page 21 The desktop height can not be adjusted: • Is the power cord correctly plugged into the desk and the power outlet? • Is the electrical power outlet working? • Has the maximum operation time been exceeded (see page 11)? Strange noises or smoke: •...
-
Page 22: Technical Data
Technical Data Desktop size (corpus) T7: 115 x 75 x 9 cm Desktop size (corpus) T7 XL: 150 x 75 x 9 cm Desk height (infinitely adjustable): without adaptor 56 - 118 cm with adaptor (optional) 66 - 128 cm Drawer internal dimensions: W 44,0 / D 30 / H 4 cm W 35,5 / D 30 / H 4 cm... -
Page 23: Ec Declaration Of Conformity
EC Declaration of Conformity... - Page 24 It is a part of the table and contains important safety informations. When the table is sold, rented out or otherwise passed on to another party, it must be handed over with this operating manual. moll Funktionsmöbel GmbH Tel. +49 (0) 7335 181 444 Rechbergstraße 7 service@moll-funktion.de...
