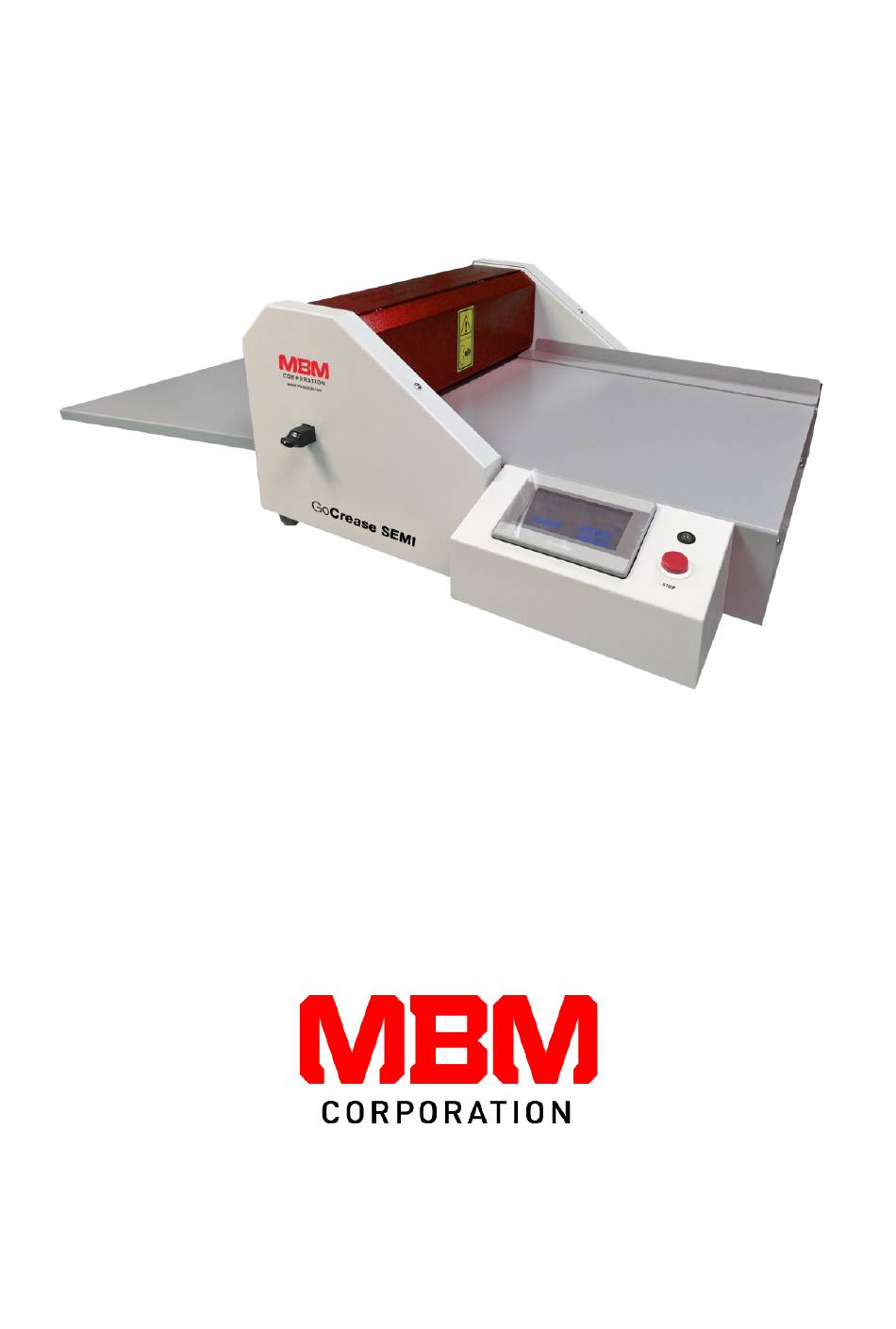

- Page 1 Operator’s Manual GoCrease SEMI MyBinding.com 5500 NE Moore Court Hillsboro, OR 97124 Toll Free: 1-800-944-4573 Local: 503-640-5920...
-
Page 2: Table Of Contents
Op Manual | GoCrease SEMI Content 1. Introduction……………………………………………………………………………………………………..….3 2. Safety Risks…………………………………………………………………………………………………………..3 2.1 Safety Warning ....................3 2.2 General Work Safety and Health Protection ........... 3 3. Warnings …………………………………………………………………………………………………………….4 4. Technical Parameters …………………………………………………………………………………………5 5. Machine Description …………………………………………………………………………………………6 6. Machine Installation …………………………………………………………………………………………9 7. Setting Machine Using Touch Screen ………………………………………………………………..10 7.1 Language selection ..................10 7.2 Setting Number of Segments ................ 10 7.3 Setting Position of Segments ................ 11 7.4 Special Types of Folds ................... 11 7.5 Saving and Loading of Program . -
Page 3: Introduction
Op Manual | GoCrease SEMI 1. INTRODUCTION We are presenting you with Operating Instructions that contain machine technical data and instructions necessary for correct setting, machine start-up, operation and maintenance. Instructions are intended for machine operation as well as for service engineers. People manipulating, installing and operating the machine should familiarise themselves with the instructions before they start. -
Page 4: Warnings
Op Manual | GoCrease SEMI With the document “Declaration of Conformity” the manufacturer certifies that the given machinery complies with the requirements of the Directive 98/37/ES of the European Parliament and of the Council and the harmonised technical standards. Directive 98/37/ES of the European Parliament and of the Council is a document defining the generally applicable basic requirements of the health protection and safety for the machinery operated by a user in the EEA. -
Page 5: Technical Parameters
Op Manual | GoCrease SEMI 4. TECHNICAL PARAMETERS Max. working width 17.7” Recommended paper grammage - creasing 80 - 400 g/m² Recommended paper grammage - perforation 80 - 250 g/m² Crease width * CITO 1,0 mm - paper thickness < 0.007” (mostly 80 - 150 gsm) CITO 1,4 mm - paper thickness 0.007”... -
Page 6: Machine Description
Op Manual | GoCrease SEMI 5. MACHINE DESCRIPTION Content of package the machine GoCrease SEMI magnetic side guide magnetic strip perforating knife creasing knife (fitted on the machine) lower creasing/perforating tool (fitted on the machine) supply cable hexagonal key 1 – Feeding table 15 –... - Page 7 Op Manual | GoCrease SEMI Electric creasing and perforating machine is suited for final processing of graphic materials up to 17.7” width. Creasing enables easy folding of the paper. Knife change and turning of the square bar (9) allows to make perforation. Waste-less perforation allows easy separation of the paper.
-
Page 8: Machine Installation
Op Manual | GoCrease SEMI 6. MACHINE INSTALLATION After unpacking the machine has to be put on a solid area, the delivery table is put on (2). After the machine has been plugged into the power outlet, it is ready to operate and the display is alight (6). -
Page 9: Setting Machine Using Touch Screen
Op Manual | GoCrease SEMI 7. SETTING MACHINE USING TOUCH SCREEN Language selection After the power supply switch has been turned on, the display shows the basic menu (fig.1) Fig. 1: The Main screen There is a hidden icon in the left upper corner. If you press this space a language menu comes up (fig.2). -
Page 10: Setting Position Of Segments
Op Manual | GoCrease SEMI Fig. 3: Setting screen Setting Position of Segments The position of the first segment is set as the distance from the edge of the sheet. The position of each following segment is defined as its distance from the previous segment. The "no. -
Page 11: Saving And Loading Of Program
Amongst these types of fold there is one very special function called book cover. The machine GoCrease SEMI is excellent for making professional book and brochure covers. Book cover is defined by 4 creases made in the middle of the sheet with fixed distances 0.23”... -
Page 12: Working Cycle
Op Manual | GoCrease SEMI Load the program as follows: On the main screen press the number in the right side of the screen showing program number. Choose the number of the program you want to load using the keys "prg +" and "prg -". Press the "Load" icon. Go back to the main menu by pressing "Return". -
Page 13: Service Menu
Service menu There is a hidden icon in the right upper corner. This icon is there for a service technician trained by MBM Corporation. To access this icon you need to enter a password (fig. 8). Fig. 8: Service screen 8. -
Page 14: Machine Disposal
Op Manual | GoCrease SEMI tap on the MOVE icon. Before removing the paper, it is necessary to carry out an upstroke (1 turn icon). Use button Backward or Forward depending on situation. c) Crease is in incorrect position compared to values set on display It is necessary to respect recommended width of creasing channel for different paper thickness.
