Summary of Contents for MBM GoCrease 3000

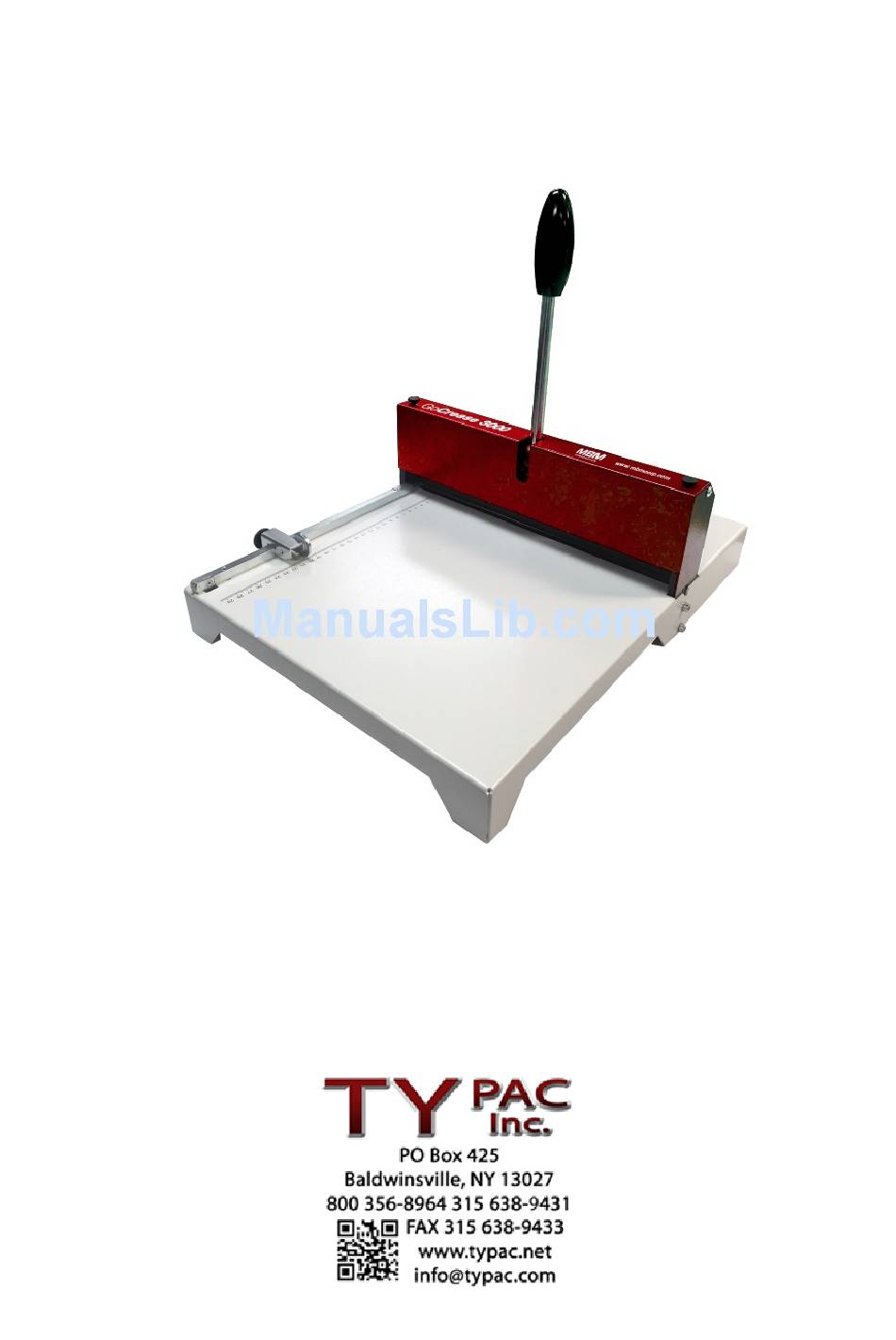

- Page 1 Operator’s Manual GoCrease 3000 Operator’s Manual...
-
Page 2: Table Of Contents
C O N T E N T S : Identification ........................... 3 Specification ........................... 3 Parameters ..........................3 Prohibited activities ........................ 3 Main machine parts ........................ 4 OPERATING INSTRUCTIONS ....................4 6.1 Preparing the machine for operation after unwrapping ........... 4 6.2 Machine operation ...................... -
Page 3: Identification
Type marking: GoCrease 3000 Manufacturer: MBM Corporation www.mbmcorp.com 2 Specification The machine is designed for the treatment of common office paper or of paper with similar physical- chemical properties. The size of sheets is up to 12.6” x 17.7”, the maximum table width is 12.6” and... -
Page 4: Main Machine Parts
5 Main machine parts Machine base Stop guide way Stop Lever Upper bar Lower bar Cover 6 OPERATING INSTRUCTIONS 6.1 Preparing the machine for operation after unwrapping Remove both the machine and the lever from its packaging. • Stabilize the machine on a firm, even surface. •... -
Page 5: Machine Operation
6.2 Machine operation The creaser has two sliding stops (3) with tilting stop discs that are adjusted to a required crease and perforation position according to a millimeter scale. The set position of the stops (3) is secured with arresting bolts (9). When the minimum or maximum distance of the crease from the paper edge is required the stops (3) can be exchanged. -
Page 6: Perforation And Creasing Tool Replacement
6.2.2 Perforation and creasing tool replacement Unscrew the lever (15), loosen the screws (16) and disengage the cover (7). Loosen the screws (17), disengage the T-square (18) and the perforating tool (19). Replace it with the creasing tool (20) held in the magnetic holder in the rear part of the cover. When inserting a new tool proceed in the opposite sequence;... -
Page 7: Lower Creasing Bar Positions
6.2.3 Lower creasing bar positions A. 0.03” crease position 80-120g/mm B. 0.04” crease position 120-200g/mm C. 0.06” crease position 200-400g/mm D. Perforation position 80-250g/mm Op Manual Creasing and perforating machine GoCrease 3000... -
Page 8: Machine Maintenance
7 Machine maintenance Once in 6 months check the friction points of the upper bar and side guide ways and lubricate them if necessary. 8 Machine and transport packaging disposal Pursuant to the Decree of the Ministry of the Environment No. 381/2001 Sb. as annotated through Decree No.
