Whelen Engineering Company 5G Series Installation Manual

ENGINEERING COMPANY INC.
51 Winthrop Road,
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
Fax: (860) 526-4078

Installation:

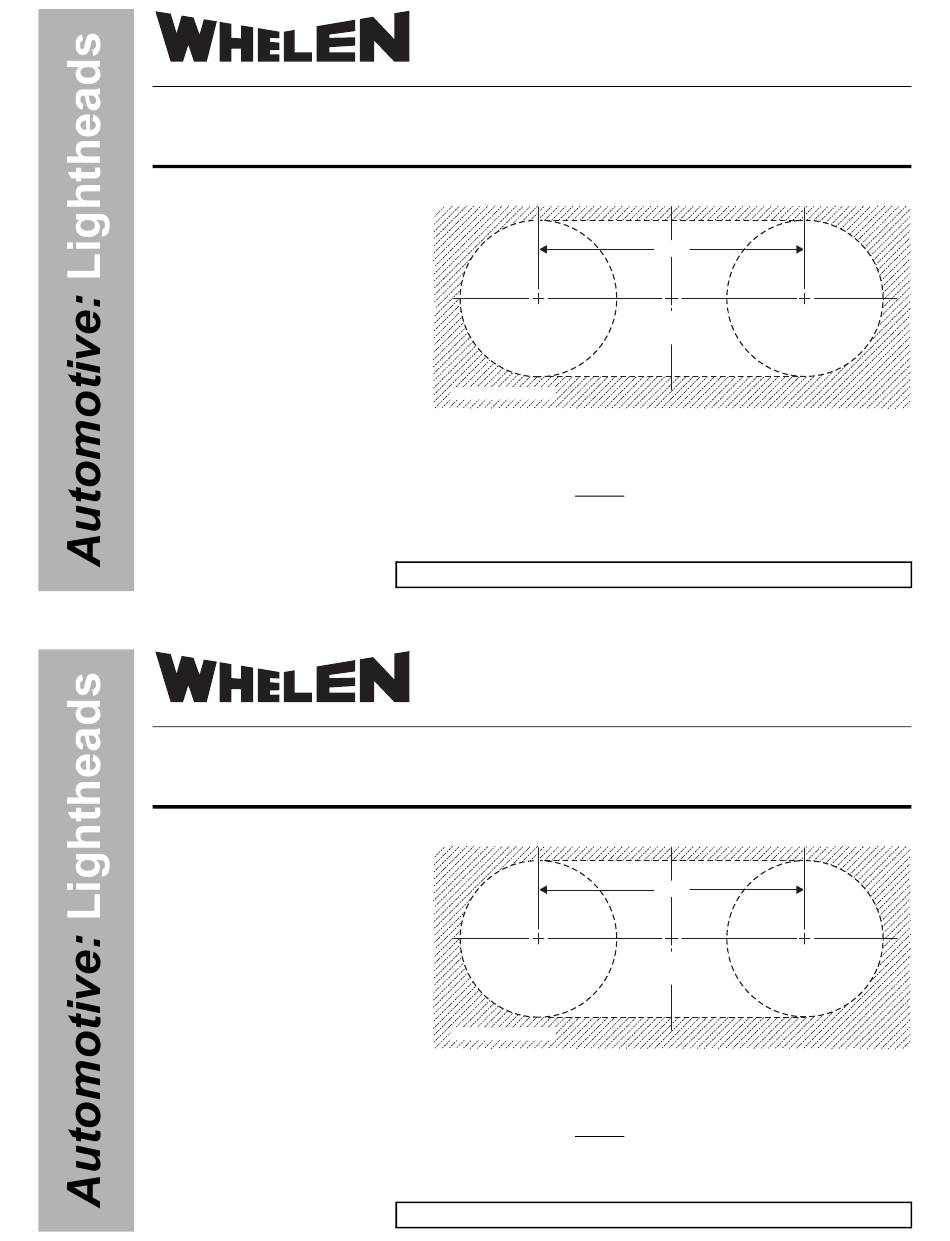

1. After marking onto the mounting
surface the measurements shown
here, drill the two 1.25" radius holes,
then cut out the center area as
shown.
2. Install the rubber grommet into the
vehicle, then snap the lighthead into
the rubber grommet.
3. Extend the wires to your power
source.

Wiring:

WARNING! All customer supplied wires that connect to the positive terminal of the battery must be sized to
supply at least 125% of the maximum operating current and FUSED at the battery to carry that load. DO NOT
USE CIRCUIT BREAKERS WITH THIS PRODUCT!
This lighthead will replace your vehicles Brake/Tail/Turn light. To wire the lighthead, follow the wiring diagram shown.
©2004 Whelen Engineering Company Inc.
Form No.13895D (062807)
ENGINEERING COMPANY INC.
51 Winthrop Road,
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
Fax: (860) 526-4078
Installation:
1. After marking onto the mounting
surface the measurements shown
here, drill the two 1.25" radius holes,
then cut out the center area as
shown.
2. Install the rubber grommet into the
vehicle, then snap the lighthead into
the rubber grommet.
3. Extend the wires to your power
source.
Wiring:
WARNING! All customer supplied wires that connect to the positive terminal of the battery must be sized to
supply at least 125% of the maximum operating current and FUSED at the battery to carry that load. DO NOT
USE CIRCUIT BREAKERS WITH THIS PRODUCT!
This lighthead will replace your vehicles Brake/Tail/Turn light. To wire the lighthead, follow the wiring diagram shown.
©2004 Whelen Engineering Company Inc.
Form No.13895D (062807)
®

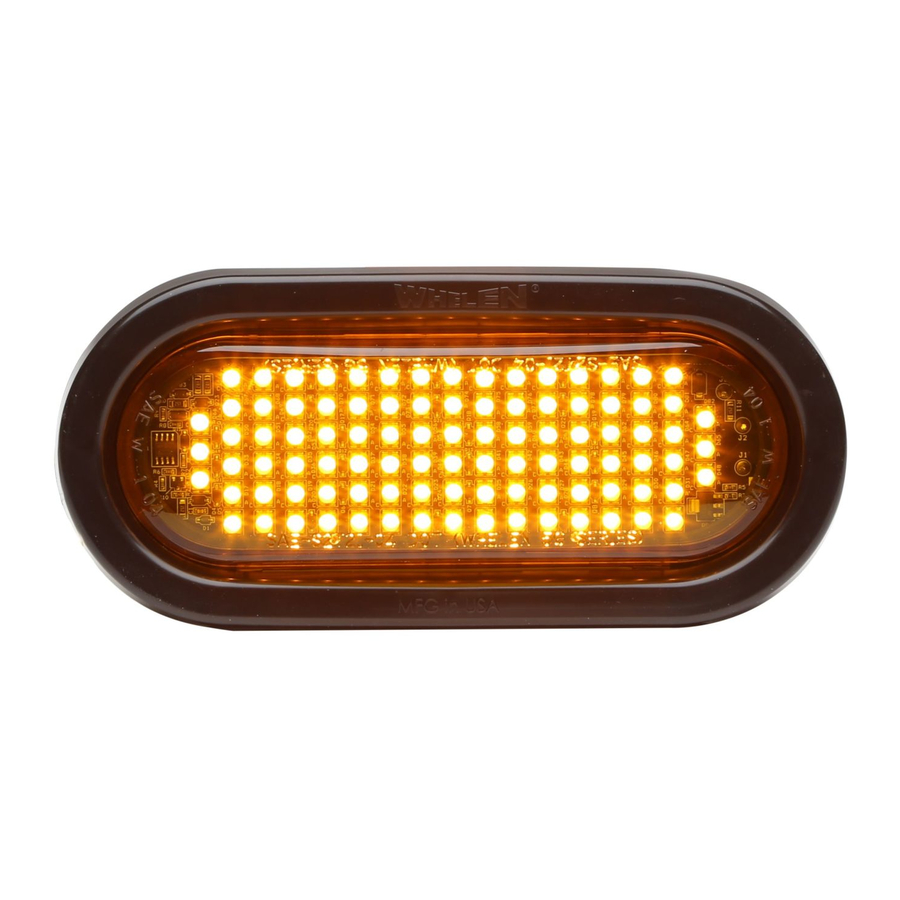

5G Series Brake/Tail/Turn Lighthead
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Canadian Sales e-mail: autocan@whelen.com
Customer Service e-mail: custserv@whelen.com
1.25" RADIUS
MOUNTING SURFACE
For warranty information regarding this product, visit www.whelen.com/warranty
®
5G Series Brake/Tail/Turn Lighthead
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Canadian Sales e-mail: autocan@whelen.com
Customer Service e-mail: custserv@whelen.com
1.25" RADIUS
MOUNTING SURFACE
Page 1
For warranty information regarding this product, visit www.whelen.com/warranty
Installation Guide:
4.25"
1.25" RADIUS
MOUNTING HOLE
(CUT-OUT)
Installation Guide:
4.25"
1.25" RADIUS
MOUNTING HOLE
(CUT-OUT)
