Whelen Engineering Company 700 Series Installation Manual

ENGINEERING COMPANY INC.
51 Winthrop Road,
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
Fax: (860) 526-4078
Mounting:
IMPORTANT! When selecting a mounting location, keep in
mind that there must be a minimum of 2" clearance around
the perimeter of the lighthead and any vehicle components
(insulation, etc.). The rear of the lighthead must have a
minimum 1/8" clearance. This increases airflow over the
heatsink and helps maintain proper operating temperature.
Caution: Permanent mounting of this product will require
drilling. It is absolutely necessary to make sure that no other
vehicle components could be damaged by this process.
Check both sides of the mounting surface before starting. If
damage is likely, select a different mounting location.
1. Using the mounting diagram, mark off the mounting holes and
the "cut-out" area.
2. Using a 1/4" drill bit, drill the mounting holes then carefully cut
and remove the area of the mounting surface indicated. Do not
remove the mounting surface where the mounting holes are
drilled.
NOTE" The word "TOP" embossed on the lens must be on
the top of the light after mounting.
©2008 Whelen Engineering Company Inc.
Form No.14172B (121511)
ENGINEERING COMPANY INC.
51 Winthrop Road,
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
Fax: (860) 526-4078
Mounting:
IMPORTANT! When selecting a mounting location, keep in
mind that there must be a minimum of 2" clearance around
the perimeter of the lighthead and any vehicle components
(insulation, etc.). The rear of the lighthead must have a
minimum 1/8" clearance. This increases airflow over the
heatsink and helps maintain proper operating temperature.
Caution: Permanent mounting of this product will require
drilling. It is absolutely necessary to make sure that no other
vehicle components could be damaged by this process.
Check both sides of the mounting surface before starting. If
damage is likely, select a different mounting location.
1. Using the mounting diagram, mark off the mounting holes and
the "cut-out" area.
2. Using a 1/4" drill bit, drill the mounting holes then carefully cut
and remove the area of the mounting surface indicated. Do not
remove the mounting surface where the mounting holes are
drilled.
NOTE" The word "TOP" embossed on the lens must be on
the top of the light after mounting.
©2008 Whelen Engineering Company Inc.
Form No.14172B (121511)
®
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Canadian Sales e-mail: Canadiansales@whelen.com
Customer Service e-mail: custserv@whelen.com
3.
WARNING! All customer supplied wires that connect to the
positive (+) terminal of the battery must be sized to supply at
least 125% of the maximum operating current and FUSED "at
the battery" to carry that load. DO NOT USE CIRCUIT
BREAKERS WITH THIS PRODUCT!
IMPORTANT!
technician to make sure that the installation and operation of
this product will not interfere with or compromise the
operation or efficiency of any vehicle equipment!
IMPORTANT! Before returning the vehicle to active service,
visually confirm the proper operation of this product, as well
CAUTION! DO NOT LOOK DIRECTLY AT THESE LEDS WHILE THEY ARE ON.
MOMENTARY BLINDNESS AND/OR EYE DAMAGE COULD RESULT!
For warranty information regarding this product, visit www.whelen.com/warranty
®
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Canadian Sales e-mail: Canadiansales@whelen.com
Customer Service e-mail: custserv@whelen.com
3.
WARNING! All customer supplied wires that connect to the
positive (+) terminal of the battery must be sized to supply at
least 125% of the maximum operating current and FUSED "at
the battery" to carry that load. DO NOT USE CIRCUIT
BREAKERS WITH THIS PRODUCT!
IMPORTANT!
technician to make sure that the installation and operation of
this product will not interfere with or compromise the
operation or efficiency of any vehicle equipment!
IMPORTANT! Before returning the vehicle to active service,
visually confirm the proper operation of this product, as well
CAUTION! DO NOT LOOK DIRECTLY AT THESE LEDS WHILE THEY ARE ON.
MOMENTARY BLINDNESS AND/OR EYE DAMAGE COULD RESULT!
For warranty information regarding this product, visit www.whelen.com/warranty
Page 1
Installation Guide:

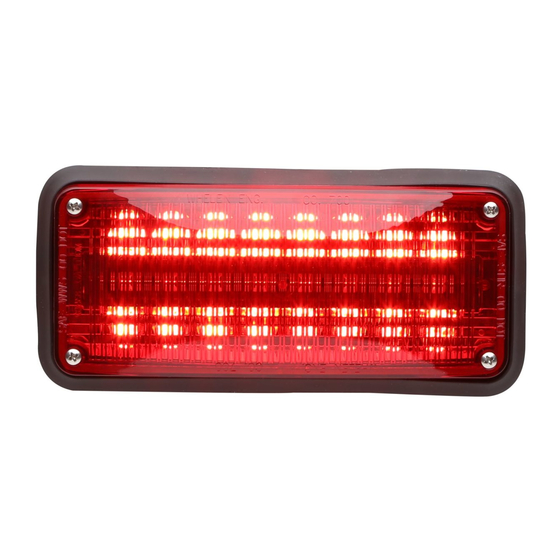

700 Series LED Scenelight
Route the cable through the wiring hole and refer to "wiring
information" for connections and fusing. After testing the
operation, position the lighthead onto the mounting surface
and secure to the vehicle using the four #6 x 1½" sheet metal
screws and flange grommet provided.
It is the responsibility of the installation
IMPORTANT WARNING!
Installation Guide:
700 Series LED Scenelight
Route the cable through the wiring hole and refer to "wiring
information" for connections and fusing. After testing the
operation, position the lighthead onto the mounting surface
and secure to the vehicle using the four #6 x 1½" sheet metal
screws and flange grommet provided.
It is the responsibility of the installation
IMPORTANT WARNING!
