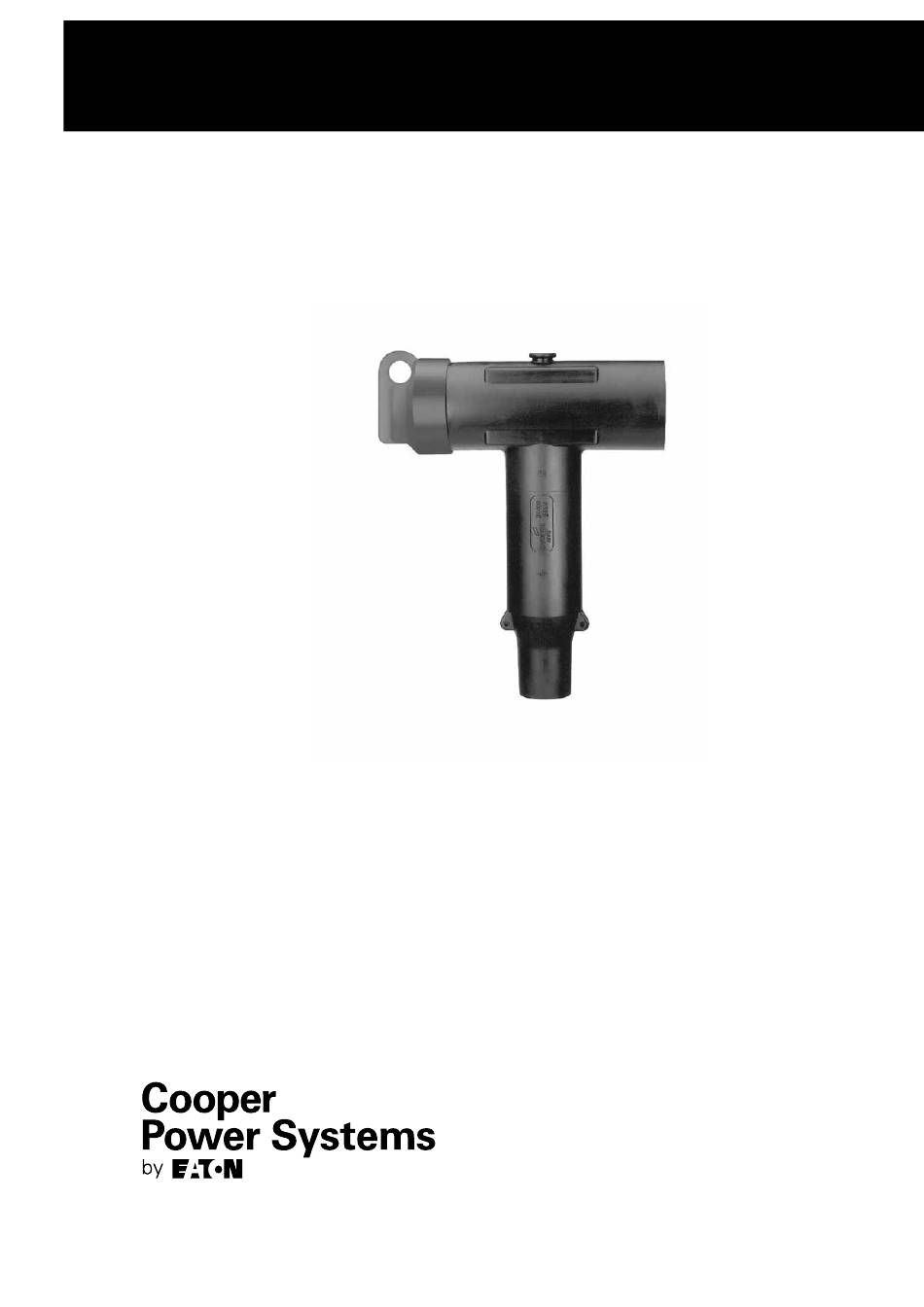

- Page 1 Effective September 2014 Connectors and Splices Lorem ipsum dolor sit Amat Supersedes IS550-30-1 March 2011 MN650001EN DT400/436 Tee Connector Installation Instructions...
- Page 2 ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
-
Page 3: Table Of Contents
Installation Instructions ..............2 DT400/436 tee connector installation instructions MN650001EN September 2014 www.cooperpower.com... -
Page 4: Safety Information
FOR LIFE FOR LIFE Eaton’s Cooper Power Systems products meet or exceed all applicable industry standards relating to product safety. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton’s Cooper Power Systems employees involved in product design, manufacture, marketing, and service. -
Page 5: Product Information
If the elbow is to be stored for any length of time prior to installation, provide a clean, dry storage area. Standards ISO 9001 Certified Quality Management System DT400/436 tee connector installation instructions MN650001EN September 2014 www.cooperpower.com... -
Page 6: Installation Instructions
The vinyl tape is not included in the kit.) Position the cable to its final position and cut it 50 mm from the centerline of the apparatus bushing. See Figure 3. DT400/436 tee connector installation instructions MN650001EN September 2014 www.cooperpower.com... - Page 7 Crimp the connector starting at the shoulder, as shown. Rotate the crimping tool 90° for each successive crimp. Remove any inhibitor that may come out of the crimp connector. DT400/436 tee connector installation instructions MN650001EN September 2014 www.cooperpower.com...
- Page 8 Tighten the clamping screw to a torque of 50 Nm (37 ft-lbs) using a 22 mm socket wrench. Figure 7. Installation of clamping screw. DT400/436 tee connector installation instructions MN650001EN September 2014 www.cooperpower.com...
- Page 9 The apparatus bushing and tee connector should not support the weight of the cable. Clamp the cable immediately below the cable screen adapter. Failure to comply may result in equipment damage. DT400/436 tee connector installation instructions MN650001EN September 2014 www.cooperpower.com...
- Page 10 This page is intentionally left blank. DT400/436 tee connector installation instructions MN650001EN September 2014 www.cooperpower.com...
- Page 11 This page is intentionally left blank. DT400/436 tee connector installation instructions MN650001EN September 2014 www.cooperpower.com...
- Page 12 Eaton’s Cooper Power Systems Business 2300 Badger Drive Waukesha, WI 53188 cooperpower.com Eaton and Cooper Power Systems are valuable trademarks of Eaton, in the © 2014 Eaton U.S. and other countries. You are not All Rights Reserved permitted to use these trademarks...
