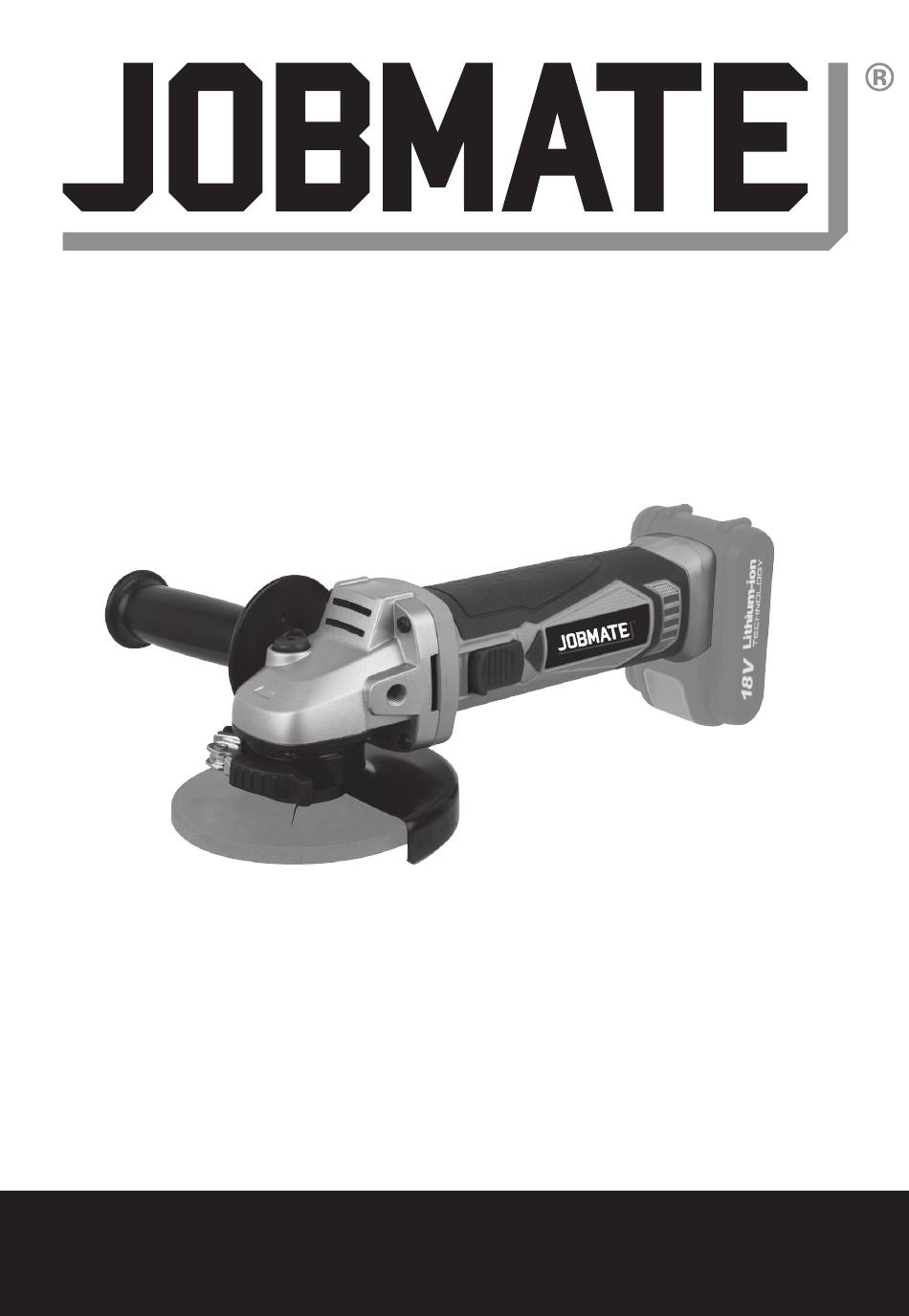

SAFETY AND OPERATING MANUAL
18V
LI-ION ANGLE GRINDER SKIN ONLY
JMCGA18G.9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JMCGA18G.9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jobmate JMCGA18G.9

Summary of Contents for jobmate JMCGA18G.9

  • Page 1 SAFETY AND OPERATING MANUAL LI-ION ANGLE GRINDER SKIN ONLY JMCGA18G.9...

  • Page 2: Work Area Safety

    PRODUCT SAFETY (RCD) protected supply. Use of an RCD reduces the risk of electric shock. GENERAL POWER TOOL 3) PERSONAL SAFETY a) Stay alert, watch what you are doing and SAFETY WARNINGS use common sense when operating a power tool. Do not use a power tool while you are WARNING! Read all safety warnings, tired or under the influence of drugs, alcohol instructions, illustrations and...

  • Page 3: Safety Instructions For All Operations

    SAFETY INSTRUCTIONS FOR starting the power tool accidentally. d) Store idle power tools out of the reach of ALL OPERATIONS children and do not allow persons unfamiliar with the power tool or these instructions Safety Warnings Common for Grinding, or to operate the power tool.

  • Page 4: Additional Safety Instructions For Grinding And Cutting-Off Operations

    appropriate, wear dust mask, hearing For example, if an abrasive wheel is snagged or protectors, gloves and workshop apron pinched by the workpiece, the edge of the wheel capable of stopping small abrasive or that is entering into the pinch point can dig into workpiece fragments.

  • Page 5: Additional Safety Warnings Specific For Abrasive Cutting-Off Operations

    that projects through the plane of the guard lip d) Do not restart the cutting operation in the cannot be adequately protected. workpiece. Let the wheel reach full speed c) The guard must be securely attached to and carefully re-enter the cut. The wheel may the power tool and positioned for maximum bind, walk up or kickback if the power tool is safety, so the least amount of wheel is...

  • Page 6: Safety Warnings For Battery Pack

    SAFETY WARNINGS FOR chassis has to be connected first. The other connection is to be made to the chassis, BATTERY PACK remote from the battery and fuel line. The battery charger is then to be connected to the a) Do not dismantle, open or shred cells or battery pack. supply mains.
  • Page 7 SYMBOL To reduce the risk of injury, user must Double insulation (for charger) read instruction manual ABN: Australian Business Number. By this number, Warning business information such as entity type, status, business location etc. can be found at website http:/ /abr.business. gov.au.

  • Page 9: Component List

    COMPONENT LIST 1. Auxiliary handle 2. Spindle lock button 3. Soft grip handle 4. Battery pack 5. Battery release button 6. On/Off switch 7. Disc guard 8. Disc* 9. Outer flange 10. Inner flange 11. Spanner Not all the accessories illustrated or described are included in standard delivery. ACCESSORIES Auxiliary handle Spanner...

  • Page 10: Charging Procedure

    CHARGING PROCEDURE NOTE: Before using the tool, read the instruction book carefully. 1. CHARGING YOUR BATTERY PACK A) CHARGING THE BATTERY The battery charger supplied is matched to the Li-Ion battery installed in the machine. Do not use another battery charger. The Li-ion battery is protected against deep discharging.

  • Page 11: Operating Instructions

    Light ON/OFF flash Status Charging Red on Fig.B - - - - - Defective Battery Red flash Fully Charged Green on - - - - - Hot/Cold Delay Green flash OPERATING INSTRUCTIONS INTENDED USE The machine is intended for cutting, roughing and brushing metal and stone materials without using water.
  • Page 12 Fig.E Put the inner flange onto the tool spindle. Ensure it is located on the two flats of spindle (see F1). Place the disc on the tool spindle and inner flange. Ensure it is correctly located. Fit the threaded outer flange making sure it is facing in the correct direction for the type of disc fitted.

  • Page 13: Working Hints For Your Angle Grinder

    Fig.G 8. TO USE THE GRINDER (SEE FIG. I) Attention: Do not switch the grinder on while the disc is in contact with the workpiece. Allow the disc to reach full speed before starting grinding. Hold your angle grinder with one hand on the main handle and other hand firmly around the auxiliary handle.

  • Page 14: Maintenance

    and affect the surface finish. Move the angle grinder clothes with soap and water. across and back and forth over the workpiece. 5. The power-draw from the battery generates heat. 4. When using a cutting disc never change the This is increased as the energy draw increases. You cutting angle otherwise you will stall the disc and will not damage the battery pack and the generated angle grinder motor or break the disc.
