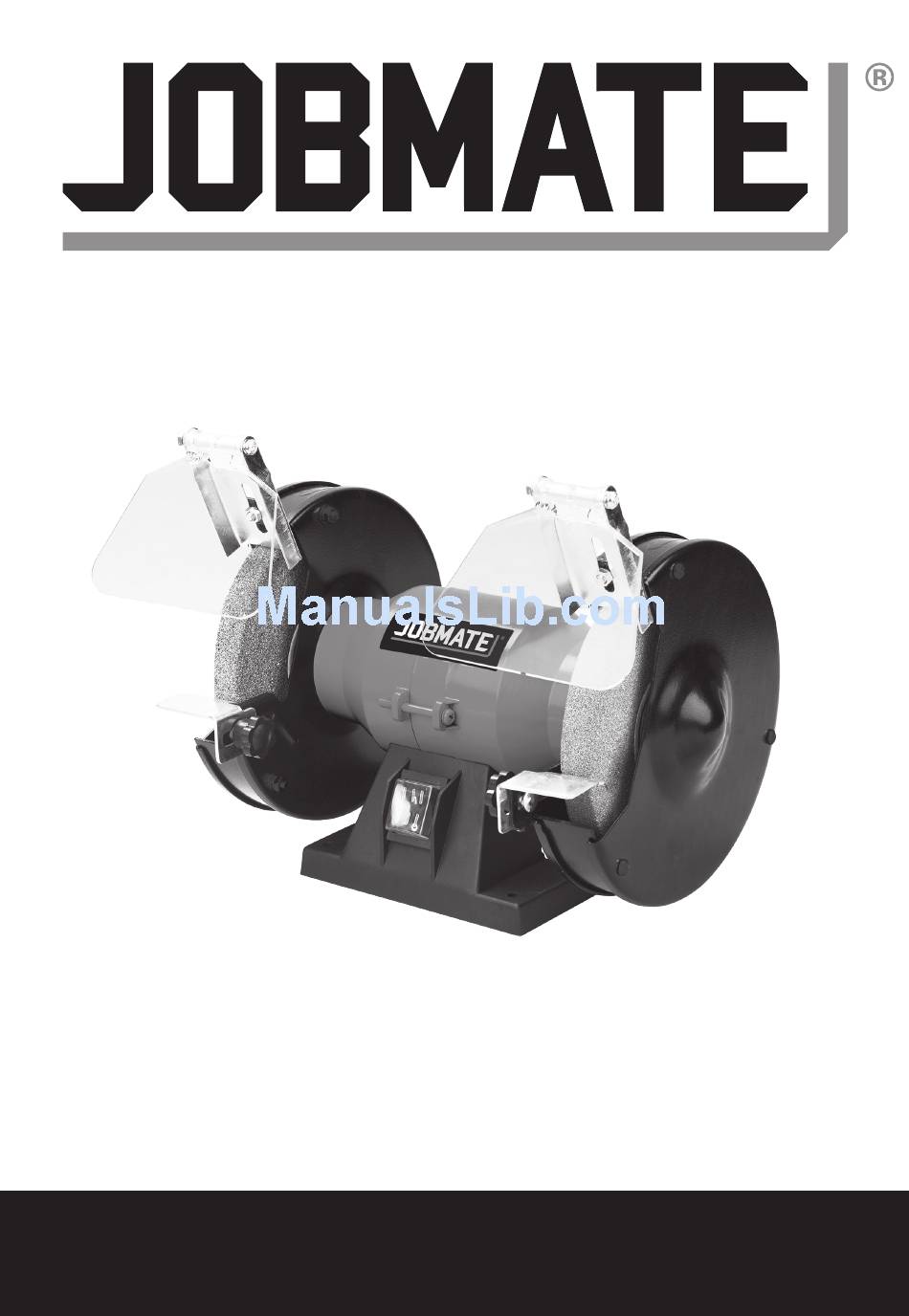

SAFETY AND OPERATING MANUAL
150W 150mm
BENCH GRINDER
JMPGB150G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JMPGB150G and is the answer not in the manual?

Questions and answers

Related Manuals for jobmate JMPGB150G

Summary of Contents for jobmate JMPGB150G

  • Page 1 SAFETY AND OPERATING MANUAL 150W 150mm BENCH GRINDER JMPGB150G...

  • Page 3: Safe Operation

    PRODUCT SAFETY - Wear protective hair covering to contain long hair. 9. Use protective equipment SAFETY INSTRUCTIONS - Use safety glasses. - Use face or dust mask if working operations WARNING! When using electric tools create dust. basic safety precautions should always be 10.
  • Page 4 function. grinders equipped with straight-sided flanges, - Check for alignment of moving parts, binding the recommended values of the thickness T of moving parts, breakage of parts, mounting and the diameter of the hole see the technical and any other conditions that may affect its data;...

  • Page 6: Component List

    COMPONENT LIST 1. Eye shield 2. Wheel guard fixing screws 3. Mounting holes 4. On/off switch 5. Work rest 6. Grinding wheel 7. Spark arrester / eye shield bracket ACCESSORIES Work rest Eye shields Grinding disk: Ø150 X Ø12.7mm left #36 Grinding disk: Ø150 X Ø12.7mm right #60 We recommend that you purchase your accessories from the same store that sold you the tool.

  • Page 7: Intended Use

    OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. INTENDED USE The machine is intended for cutting grooves for biscuit dowel joints in chipboard, hard and softwood, plywood, fibreboard. 1. ASSEMBLY INSTRUCTIONS Fig.A Before use, the eye shields/spark arresters must be fitted to the grinder.

  • Page 8: Maintenance

    Fig.D 4. CHANGING GRINDING WHEELS (SEE FIG.E) To change the grinding wheels, first unplug from mains supply then remove the eye shield brackets, then undo and remove the three screws holding the wheel guard covers in place. Remove the cover. Undo and remove the two wheels retaining nuts (a).

  • Page 9: Handy Hints

    3. WHEEL LEAVES ROUGH FINISH Too much pressure on the wheel can cause a poor surface finish. If working with aluminium or similar soft alloy, the wheel will soon become clogged and will not grind effectively. There are no other users serviceable parts in your bench grinder.
