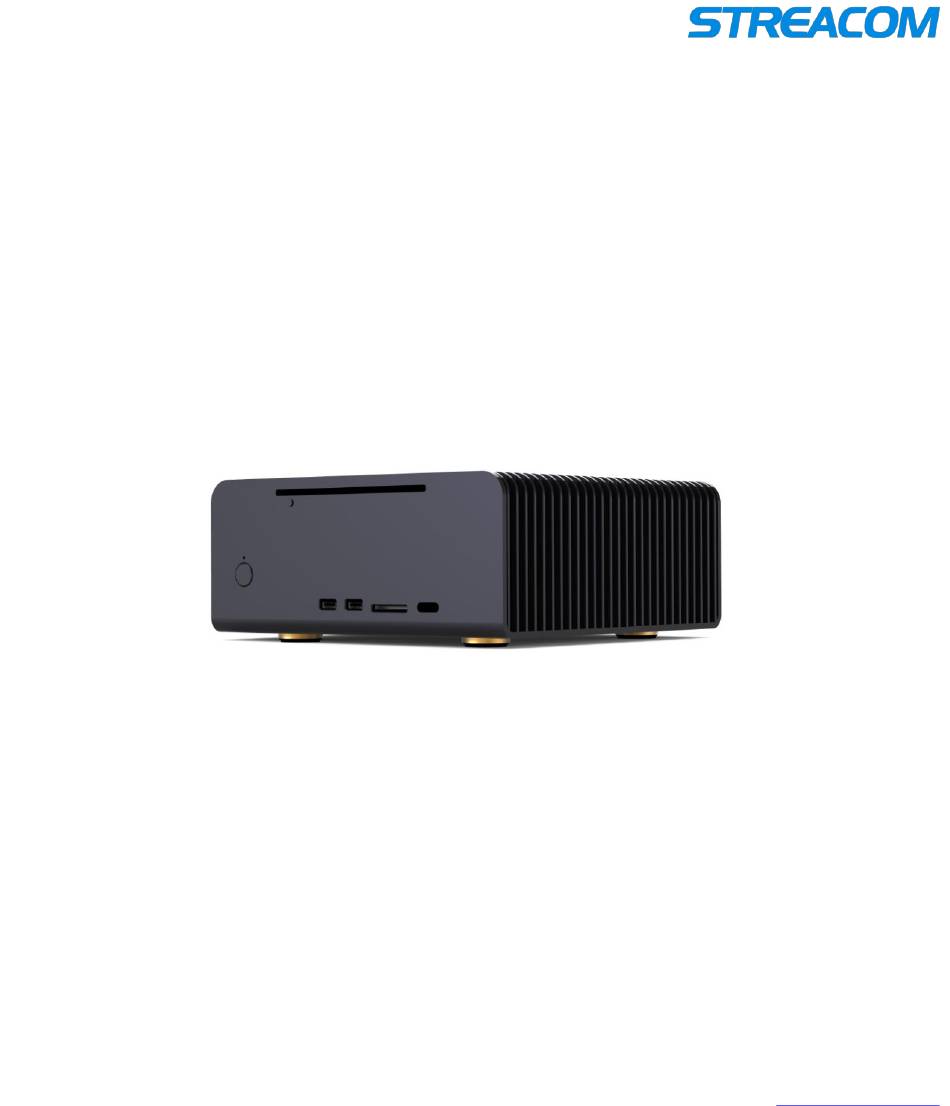

  • Page 1 Computer Chassis Installation Guide WESENA / STREACOM more infomations browse our web: www.streacom.com...
  • Page 2 CONTENT FC8 overview------------------------------------------------------3 Open the Top panel-----------------------------------------------4 Motherboard installation-----------------------------------------4 Heatsink System Installation------------------------------------5 HDD installation----------------------------------------------------7 ODD installation----------------------------------------------------7 PCI / PCIE installation--------------------------------------------8 Close Top panel----------------------------------------------------9 PCB cables reference diagram---------------------------------10...
  • Page 3 FC8 overview 10 11 14 15 16 17 ① ⑧ ⑮ . Power button . IR Receive window . Card reader PCB board ② ⑨ ⑯ . Power blue LED . Chassis heatsink side eSATA expansion slot ③ ⑩ ⑰...
  • Page 4 Open top plate Take off 4 top plate screws, and take out the top plate Show as pictures Take out case bracket Take off 4 case bracket screws, take out the case bracket Show as pictures Remove CPU cooling panels Remove 4pcs CPU cooling panels,take out CPU cooling panels Show as pictures...
  • Page 5 Install CPU nut Tearing off the double faced adhesive tape protecting paper on CPU nut Pressing CPU nut on motherboard cooling hole from motherboard’s underside Pressing other 3pcs CPU nut Show as pictures Motherboard installment put the motherboard in right place. Alignment hole and lock Put the DC connector, power , and other Show as pictures...
  • Page 6 Installing heatsink pipes Using accessories’ screws ,Assembling the motherboard , cooling panel (down) With CPU shrapnel Show as pictures Installing heatsink pipes Wearing thermal grease on the tangent surface between CPU and motherboard cooling panels. Locking CPU shrapnel and motherboard Put heatsink pipes on cooling panels’...
  • Page 7 3.5 inch HDD installment Install the 3.5 ‘’ HDD, take out the HDD screws in the accessories bag. Alignment hole and lock Show as pictures ODD installment Put ODD on the ODD bracket. Alignment and lock screws. Show as pictures 2.5 inch HDD installment( installation for your need Install 2.5 inch HDD, lock the 3 HDD screws( PM3*5) show as...
  • Page 8 ① Bracket installment Both 2.5 inch and 3.5 inch HDD can be installed. Here take the 3.5 inch as example to show Install the bracket ,which have been put ODD and HDD, into the right place ( ①) ,and then insert the ODD and HDD line into the motherboard,.
  • Page 9 Cover the top plate Check the installation place and the connectors again after finishing the inner installation. Arrange Flat Cable in case, in order to avoid block CPU fan and cooling fan. And cover the top plate . Show as pictures...
  • Page 10 Thank you for using our Products WESENA / STREACOM more infomations browse our web: www.streacom.com...
