Page 2
CONTENT ITX7 overview-------------------------------------------------------3 Open the Top panel------------------------------------------------4 Montherboard installation-----------------------------------------4 HDD installation-----------------------------------------------------5 ODD installation-----------------------------------------------------6 PCI or PCIE slot installation--------------------------------------6 Close the Top pane l-----------------------------------------------7 PCB+cables reference diagram---------------------------------8 more infomations browse our web: www.streacom.com...
Page 3

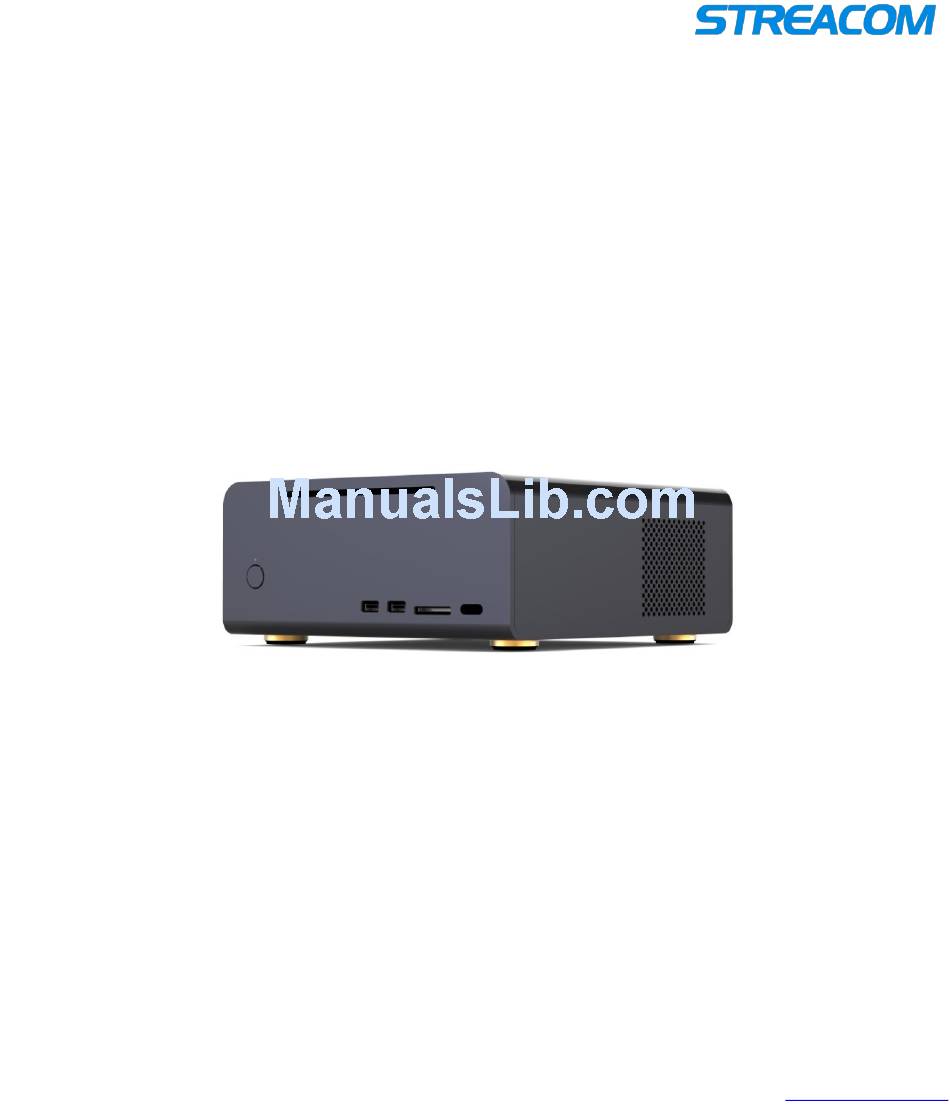

F7C overview 10 11 12 13 ⑦ ① ⑬ . Card reader . Power button .Card reader PCB board ⑧ ② ⑭ . Power blue LED . IR Receive window . Power PCB board ③ ⑨ ⑮ . ODD button .
Page 4
Connecting relevant line in motherboard Connect the DC connector ,insert power, connect the power line , and IR line , etc. Shown as photos Put the DC connector, power , and other electronic components more infomations browse our web: www.streacom.com...
Page 5
Put the ODD on the ODD bracket. Alignment and lock screws. Shown as 2.5 inch HDD installment Put the 2.5 inch HDD, lock the 3 HDD screws( PM3*5) shown as photos Shown as photos more infomations browse our web: www.streacom.com...
Page 6
Exit screws firstly ,take out the baffle plate and plate locking piece. Put the PCI or PCIE expand card in. and then put the plate locking piece and lastly lock the screws. Shown as photos more infomations browse our web: www.streacom.com...
Page 7
Check the installment place and the connectors again after finished the inner installment.Arrange the Flat Cable in case, in order to avoid ward off CPU fan and cooling fan. And cover the top plate lastly Shown as photos more infomations browse our web: www.streacom.com...
Page 8
Thank you for usage of our Products WESENA / STREACOM more infomations browse our web: www.streacom.com...
