Watts Clever EW4500 Quick Manual

How do I install and set up the wireless energy
monitor correctly?
3. Optical Sensor
Step 1.) Determine the LED port (LED light) of the electricity meter and determine the impluse
rate indicated by imp/kWh or imp/unit.
Step 2.) Use the mounting accessories provided to attach the sensor base hole over the flash-
ing LED found on your electricity meter. Attach it firmly in place.
Made sure the LED diode of your meter is exactly in the middle of the mounting bracket.
Step 3.) After mounting the sensor to your electricity meter, connect the mini jack of the sen-
sor to the Power Transmitter.
IMPORTANT: DO NOT connect the LED sensor until the pairing is done and the
LED sensor is attached to the meter. This will stop inaccurate readings occurring
from the LED sensor detecting normal light and indoor lighting.
IMPORTANT: Avoid direct light to the sensor when it is operating as this may
cause errors in readings.
What do I do if the signal is lost?
Press-and-hold [Cost · kW/kWh
If there is still no signal received, reset the Transmitter and the Display by reinstall the batter-
ies if necessaries, and follow by the Power Transmitter set up procedure.
A new ID will be regenerate on the transmitter, please re-enter the ID into display. Make sure
the Display is not out of the transmitter wireless transmission effective area.
LED diode
IMPORTANT: The Display must be set within 15 minutes of the transmitter being
powered up. Or otherwise, the display cannot link up with the transmitter even
after entering the correct ID shown on the transmitter Display.
If you cannot finish the setup in 15 minutes, reset the Transmitter to generate a
new ID, redo the setup process for the Display within 15 minutes.
] for 3 seconds to force search the signal.
A
3 seconds
Energy saving made simple
MONITOR•CONTROL•SAVE

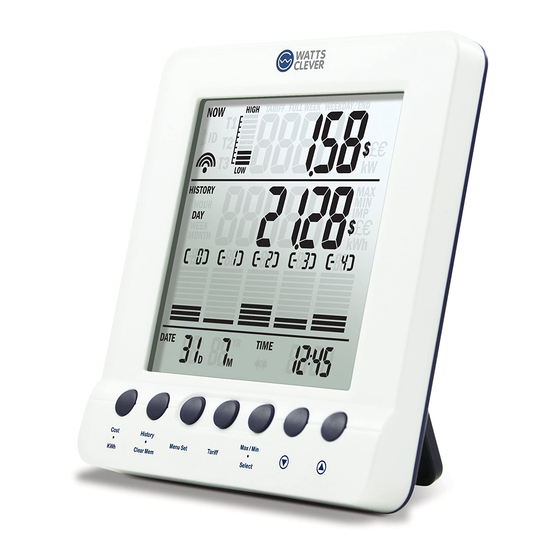

WIRELESS Energy Monitor
- Smart Meter
Monitors your electricity use and cost in real time
Quick Guide
EW4500
