Watts Clever EW4500 Quick Start Manual

How do I install and set up the wireless energy
monitor correctly?
1. Power Transmitter
Write down the CHANNEL number you selected and the ID number displayed. You will need
this information later to pair the Display Unit with Transmitter during setup.

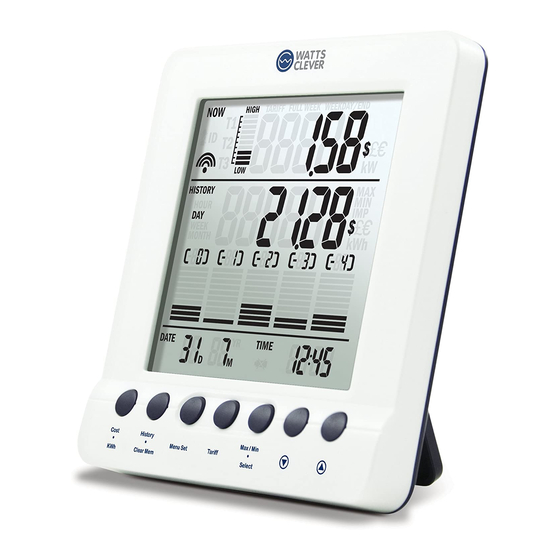

2. Display Unit
Setting the menu in Display Unit. Press the [ Menu ] button for 3 seconds to enter the
C
Menu setting.
Hour Minutes Day
A A
A A
ID code channel currency
A A
A
Price per
Inpulse
kWh
A A
Setup with˅and˅button. Press [ Select ] to confirm the value.
A E
NOTE: If you are using Tiered-rate, press [ Select
E
NOTE
with the procedures shown under "How do I set the tiered-rate?" section in the
user manual.
How do I install and set up the wireless energy
monitor correctly?
3. Optical Sensor
Step 1.) Determine the LED port (LED light) of the electricity meter and determine the impluse
rate indicated by imp/kWh or imp/unit.
Step 2.) Use the mounting accessories provided to attach the sensor base hole over the flash-
ing LED found on your electricity meter. Attach it firmly in place.
Made sure the LED diode of your meter is exactly in the middle of the mounting bracket.
Step 3.) After mounting the sensor to your electricity meter, connect the mini jack of the sen-
sor to the Power Transmitter.
Month
A
A
Year
IMPORTANT: DO NOT connect the LED sensor until the pairing is done and the
LED sensor is attached to the meter. This will stop inaccurate readings occurring
] and enter tiered-rate mode
from the LED sensor detecting normal light and indoor lighting.
IMPORTANT: Avoid direct light to the sensor when it is operating as this may
cause errors in readings.
installation
LED diode
WIRELESS
Monitors your electricity use and cost in real time
Energy saving made simple
MONITOR•CONTROL•SAVE
Energy Monitor
- Smart Meter
Quick Guide
EW4500
batteries replacement
