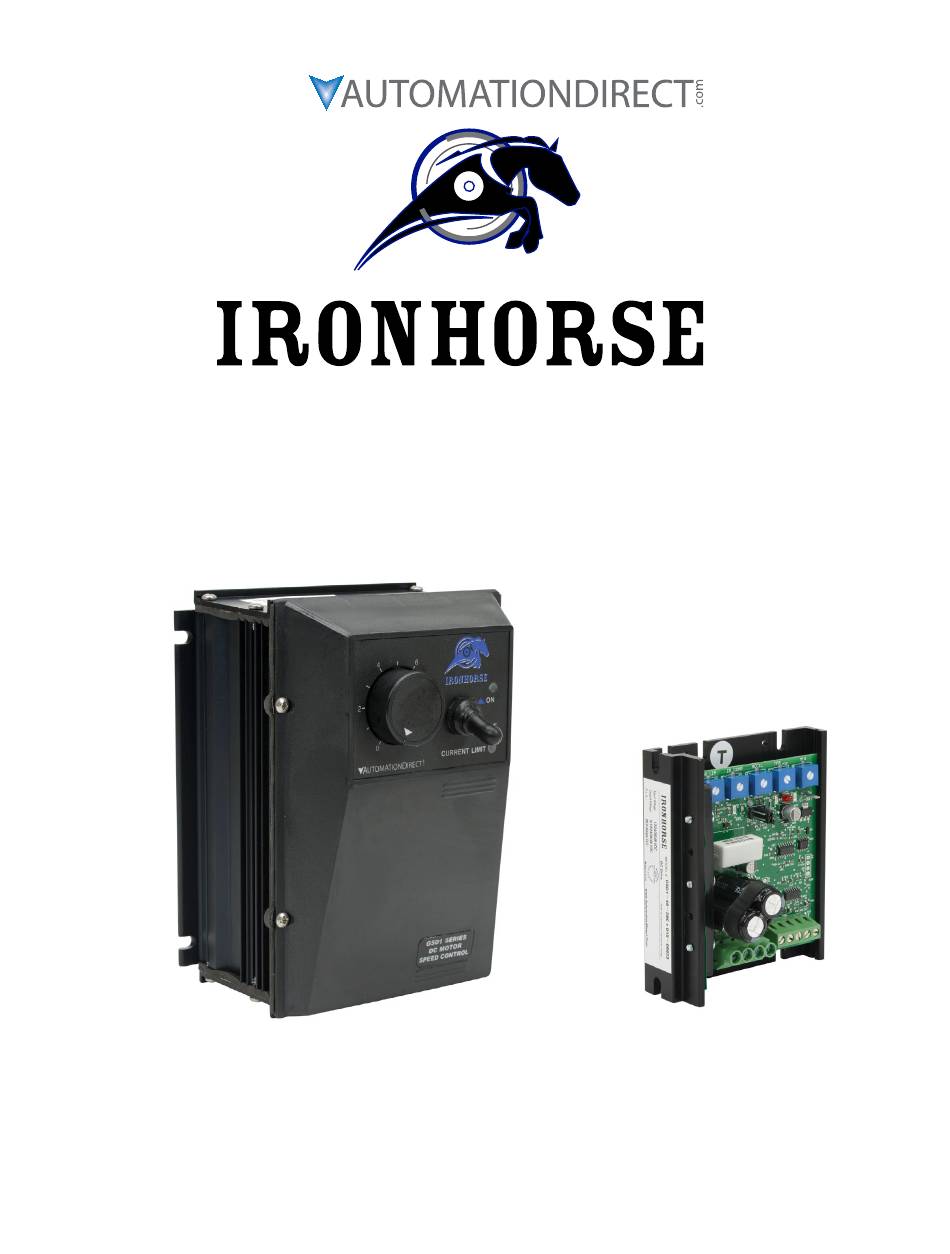

- Page 1 ™ GSD1 S DC D erieS riveS anUal : GsD1-48_UMP anUal UMber IronHorse GSD1 DC Drives User Manual – 2nd Edition, Revision B – 10/12/2018 Page 1...
-
Page 2: Warning
~ WarninG ~ Thank you for purchasing automation equipment from Automationdirect.com®, doing business as AutomationDirect. We want your new automation equipment to operate safely. Anyone who installs or uses this equipment should read this publication (and any other relevant publications) before installing or operating the equipment. -
Page 3: Table Of Contents
GSD1 DC Drives User Manual Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 IronHorse GSD1 Series DC Drives General Information � � � � � � � � � � � � � � � � � � � � � � � � � 4 Selection and Specifications �... -
Page 4: Ironhorse Gsd1 Series Dc Drives General Information
GSD1 S DC D orSe erieS riveS eneral nforMaTion tanDarD eatUres • Provides smooth variable speed capability for mobile equipment� • Automatic compensation holds motor speed steady even if the load varies or battery voltage declines� • Adjustable maximum speed, minimum speed, current limit, IR compensation, and motor acceleration� •... -
Page 5: Selection And Specifications
Digital Potentiometer GSDA-DP * For accessories details, refer to the "GSD Series DC Drives Accessories" section at automationdirect.com. ** Input power supply must not exceed recommended voltage, or it may damage the GSD1 drive. Linear power supply can be sized per drive voltage and motor full load current. -
Page 6: Dimensions
iMenSionS inches [mm] GsD1-48-10c GsD1-48-20c Model GSD1-48-10C 1�70 [43�1] 1�92 [48�7] GSD1-48-20C GsD1-48-10n4X IronHorse GSD1 DC Drives User Manual – 2nd Edition, Revision B – 10/12/2018 Page 6... -
Page 7: Installation And Wiring
nSTallaTion anD irinG Install open-frame drives in an enclosure with a volume at least three times the volume of the open- frame drive. Do not mount controller where ambient temperature is outside the range of -10 to 45 °C (14–13 °F). dc d mpRopeR INstAllAtIoN oR opeRAtIoN of thIs RIve mAy cAuse INjuRy to peRsoNNel oR dRIve fAIluRe... -
Page 8: Operational Description: 0 To 10 Vdc Analog Reference Signal To Gsd1
irinG Refer to the following wiring diagrams for proper connection of DC Voltage, Armature, and Speed Pot wiring to the DC drive. asic irinG iaGraMs Speed pots can be replaced by 0–10V analog signals (PLC, etc.). For 0–10 VDC input signal, please refer to “Operational Description: 0 to 10 VDC Analog Reference Signal to GSD1”... - Page 9 eversinG irinG iaGraMs AutIoN heN ReveRsING A spINNING peRmANeNt mAGNet motoR cAutIoN must be tAkeN thAt the ResultING cuRReNt thRouGh the ARmAtuRe of the motoR does Not exceed the oveRloAd RAtINGs of the dRIve oR the demAGNetIze RAtING of the motoR beING ReveRsed AutIoN NsuRe thAt motoR RotAtIoN hAs stopped befoRe ReveRsING the ApplIed voltAGe Speed pots can be replaced by 0–10V analog signals (PLC, etc.).
- Page 10 10 vDC a GSD1 peraTional eSCripTion naloG eferenCe iGnal To IronHorse GSD1 drives, though advertised to work with a 0 to 10 volt reference, exhibit an offset in output response when used in this manner. With 0 to 10 VDC connected to the GSD1 drive, output voltage is zero volts until the analog reference value reaches two volts, where the GSD1 drive output voltage will begin to rise.
-
Page 11: Trim Pot Adjustments
DjUSTMenTS Before the power is applied, set the voltage selection jumper to the correct voltage. An incorrect jumper setting will not damage the drive, but will affect the trim pot adjustments. The speed potentiometer and trim pots should be preset as follows: reset 1) Preset Speed pot fully CCW�... - Page 12 Literature Number: LT164 Drawing Number: A-5-4009C IronHorse GSD1 DC Drives User Manual – 2nd Edition, Revision B – 10/12/2018 Page 12...
