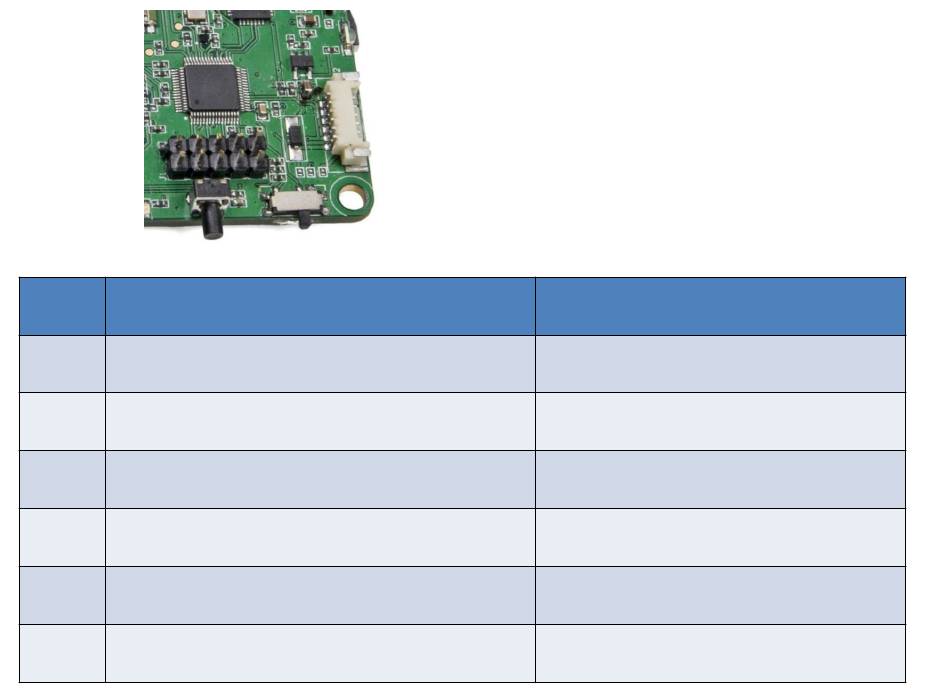

Top Connector Description
Pin-1 5V input
Pin-2 UART input for base data (LVTTL)
Pin-3 UART output for NMEA data (LVTTL)
Pin-4 NC
Pin-5 NC
Pin-6 GND
Top Connector
Pin-6
Pin-1
Bottom Connector Description
3.3V output from RTK-EB1
1PPS output from RTK-EB1
External camera trigger input
GND
Bottom Connector
Pin-1
Pin-4
