TTL UART / USB UART / Bluetooth Serial @ 115200
Antenna
Connector

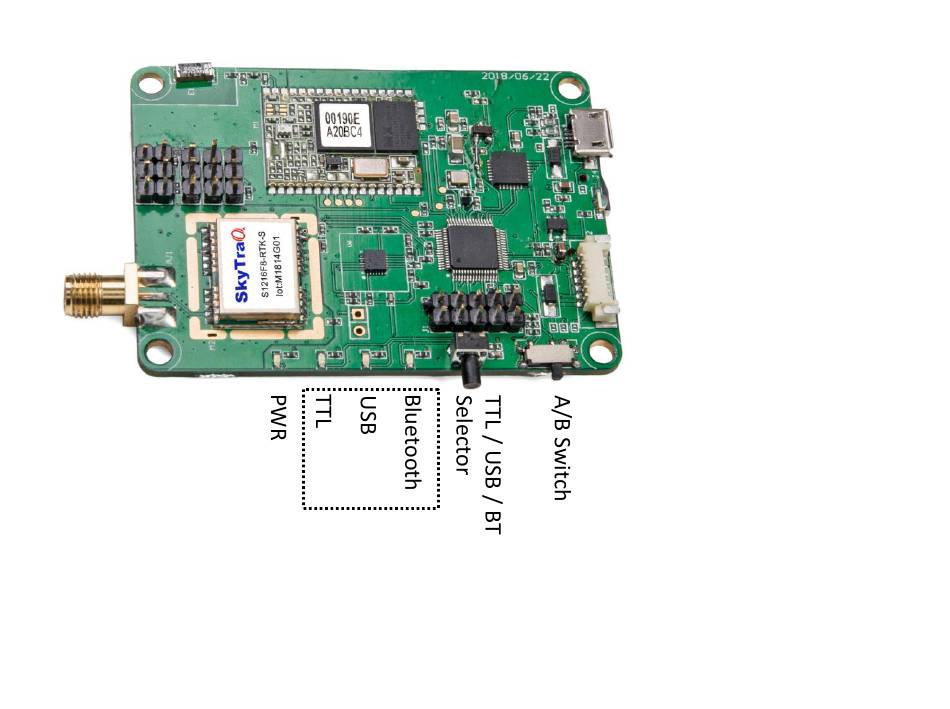

RTK-EV1 integrates Bluetooth serial, antenna connector, USB interface,
connectors for UAV application, and SD card logger for PPK processing
into a compact easy to use evaluation board.
Mode LED
Power / USB Port
Top
6-pin UAV Connector
Bottom
4-pin Camera Trigger Connector
A
B
