Summary of Contents for Kospel OSV.ECO Slim

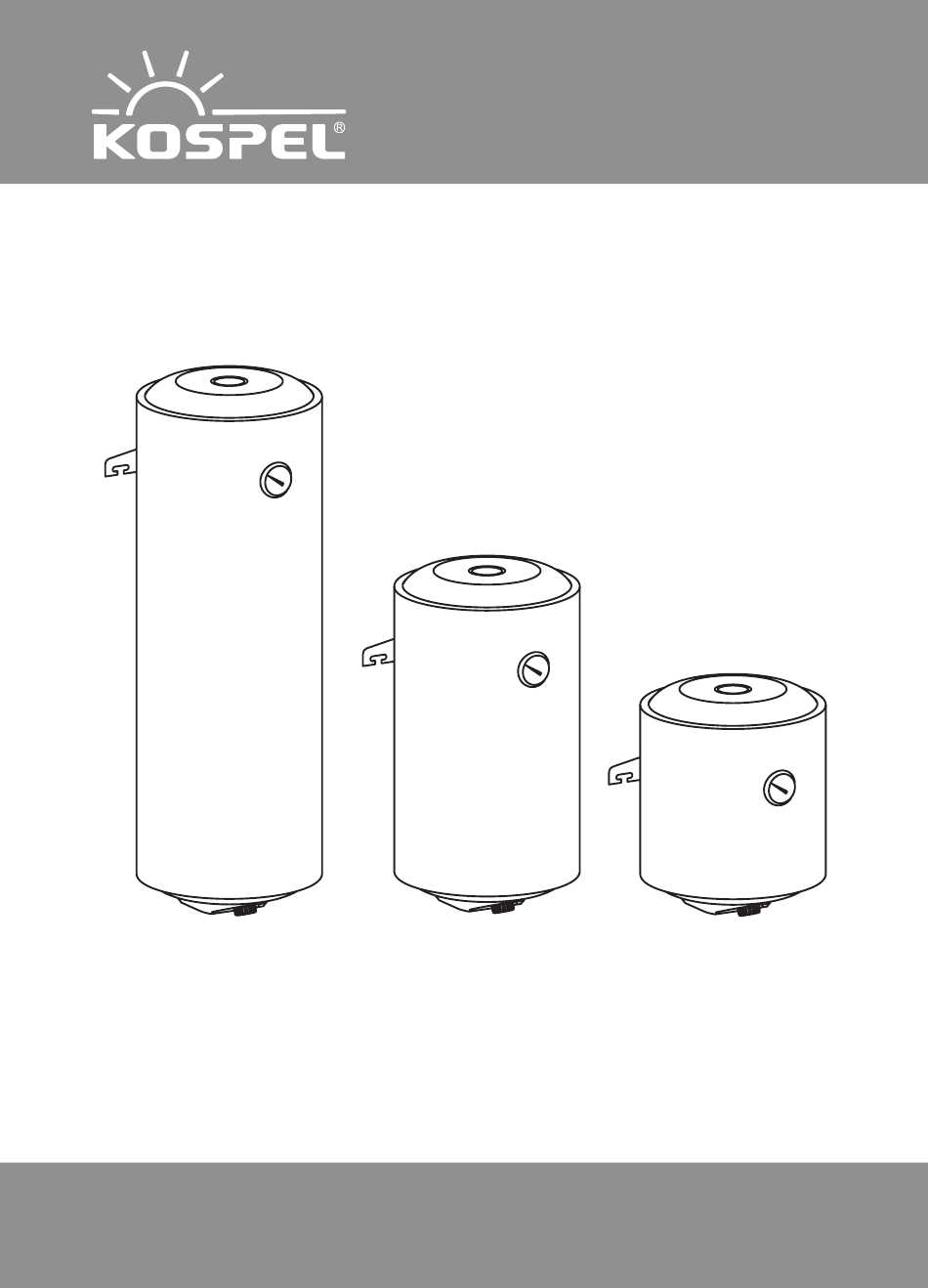

- Page 1 Storage Water Heater OSV.ECO Slim Assembly and operating manual...
- Page 2 QR-Code application at PLAY Store QR-Code to Kospel S.A. website https://play.google.com/store/ http://kospel.pl/pl/produkty/ apps/details?id=pl.kospel.SLIM. ogrzewacze-pojemnosciowe/ osv-slim.html This appliance is not intended for use by persons (including children) with reduced physical, sen- sory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 3: Safety Instructions
Safety instructions Read and strictly follow the installation and operating instructions to ensure a long life and reliable heater operation. Heater installation and all electrical and hydraulic work must be performed by a qualified professional installer. The appliance must be protected with a safety valve (of 0.6 MPa opening pressure) against too high pressure. -
Page 4: Installation & Assembly
Installation/ Assembly • The heater is to be mounted in a vertical position. • The C distance over the heater must be observed in order to per- form maintenance and to exchange the magnesium anode without tak- ing the heater off the wall. •... -
Page 5: Electrical Connection
Electrical connection The appliance is adjusted to the alternating voltage of 230V~. A power lead with a plug should be connected to a plug-in socket with a safety pin only. Electrical system should meet actual legal standards and extra local standards, if required. It is essential to fill the appliance entirely with water before connecting it to the electric mains. - Page 6 C4:62:4F:5C:86:06 RSSI: -79dBm RSSI: -79dBm Warning! TRYB PRACY New device found. Continue scanning... Download the app from Play Store or KOSPEL S.A. website. For QR codes and website addresses go to 7°C RĘCZNY AUTO KOSPEL S.A. - SLIM.ECO page 2 of this manual or to the heater’s cover.
- Page 7 7°C RĘCZNY AUTO AWARIA KOSPEL S.A. - SLIM.ECO Home page Information on the current parameters and mode is displayed on the screen. The current temperature and the current setting (program implemented) is displayed in the middle part of the heater’s screen.
- Page 8 Changing the operating mode and manual setting (deactivating the knob on the heater). Selecting the operating mode and setting the temperature is achieved by appropriate setting of the knob on the bottom cover of the heater. It is also possible to change work mode from the smartphone level using a corresponding icon Similarly, in manual mode turning the knob to the desired temperature changes setting mode.
- Page 9 Daily programs User can choose between 9 individual programs (editable) and one permanent program (ECO). Press to choose a program to edit/ preview. Press to remove given setting from daily program. To add settings to a given daily program press Once the time and tempera- DAILY PROGRAM PROGRAM DURATION...
- Page 10 Recommendations The operation of the water heater is safe and faultless if you follow the safety instruc- tions below: • Check the function of the safety valve every two weeks (see „Start-up”- section). • A small leak from the safety valve through the outlet pipe may occur, it is a normal operating state of the appliance.
-
Page 11: Technical Data
Water heater does not heat Faulty temperature Replace the faulty element water. sensor. (service). Indicator light (orange) is on. Technical data Electric water heater OSV.ECO Slim Capacity Rated pressure Temperature range °C 7 - 77 Rated power 2000 Rated voltage 220 - 240V~ Heating time 20°-60°C... - Page 12 KOSPEL S.A. 75-136 Koszalin, ul. Olchowa 1 tel. +48 94 31 70 565 serwis@kospel.pl www.kospel.pl...
