TVAC25100
TVAC25110
User manual
Version 11/2010
Original English user manual. Keep for future use.
12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVAC25100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Abus TVAC25100

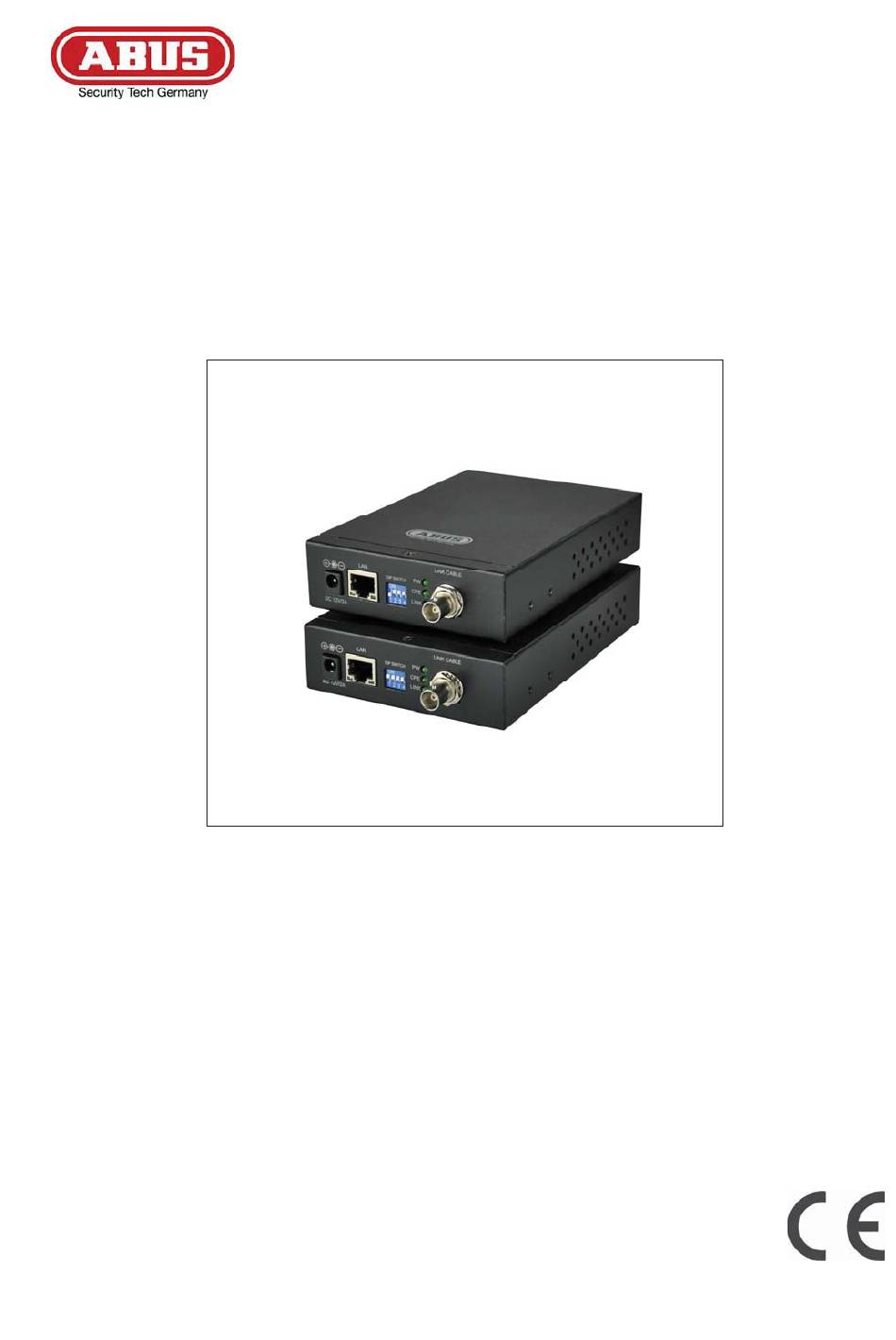

  • Page 1 TVAC25100 TVAC25110 User manual Version 11/2010 Original English user manual. Keep for future use.
  • Page 2 The ABUS Security-Center GmbH assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement.
  • Page 3 The warranty will expire for damage due to non-compliance with these operating instructions. ABUS will not be liable for any consequential loss! ABUS will not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions.
  • Page 4 English Warnings Follow all safety and operating advises before starting-up the device! 1. Follow these directions in order to avoid damage of the power cord or plug: Do not modify or process the power cord or plug arbitrarily. Make sure to disconnect the power cord holding the plug. Keep heating appliances as far as possible from the power cord in order to prevent the cover vinyl from melting.
  • Page 5: Table Of Contents

    Intended use ............................17 Scope of delivery ..........................17 Features and functions ........................17 Physical descriptions .......................... 18 4.1 TVAC25100 connections ......................18 4.2 TVAC25110 connections ......................18 4.3 Housing backside ......................... 18 Description of the DIP switches and status LEDs ................19 5.1 DIP switches ..........................
  • Page 6: Intended Use

    English 1. Intended use This transmission set “IP via Coax” or “IP via dual wire” is used for the transmission of network data via standard coaxial cables or twisted pair cables. This allows IP data from network cameras to be transmitted easily using existing cables –...
  • Page 7: Physical Descriptions

    English 4. Physical descriptions 4.1 TVAC25100 connections 12VDC / 2A Power supply 12 VDC / 2A (DC, 5.5 x 2.1 mm) LAN input RJ-45 socket for connection to the IP network device DIP switches For changes to device settings Status LEDs...
  • Page 8: Description Of The Dip Switches And Status Leds

    English 5. Description of the DIP switches and status LEDs 5.1 DIP switches Number Function ON position OFF position Master (CPE) / Slave (CO) Control unit (Master) End device (Slave) Transmission Fast mode Interleave mode Transmission rate Unlimited Limited Signal-to-noise-ratio 6 dB 9 dB DIP 1: Master / Slave...
  • Page 9: Status Leds

    English 5.2 Status LEDs These status LEDs on the network connection indicate the current connection status of the network components. Status LED Bandwidth speed Half-duplex 100 MB/s Full-duplex 100 MB/s Open circuit No connection Flashing Data transmission These status LEDs indicate the current connection status of the two devices. Description LED on LED flashing...
  • Page 10: Installation

    English 6. Installation 6.1 Installation set up On the device which is connected to the network camera, first set DIP switch 1 to OFF. Connect the IP camera and the device using a network cable. Please only use the power supply units supplied for the installation of the devices. Depending on the type of device, now connect the two devices using a coaxial cable (RG59) or a dual- wire or telephone line (twisted pair dual-wire cable, min.
  • Page 11: Data Transmission Rate

    English 7. Data transmission rate Please observe that the data transmission rate depends on the length of the cable. The longer the cable, the lower the data transmission rate. If cables have been spliced, data loss could occur on the line. The following bandwidths are available in Fast mode: Distance Bandwidth...
  • Page 12: Technical Data

    English 10. Technical data Model number TVAC25100 TVAC25110 Inputs RJ-45, DC input, Earth connection Outputs BNC (75 Ohm) Terminal for dual-wire cable Type of cable Coaxial cable (RG59) Dual-wire cable (Twisted pair min. AWG24) LED displays PW: Power supply CPE/CO: Master/Slave...
