Summary of Contents for General SCAL1356

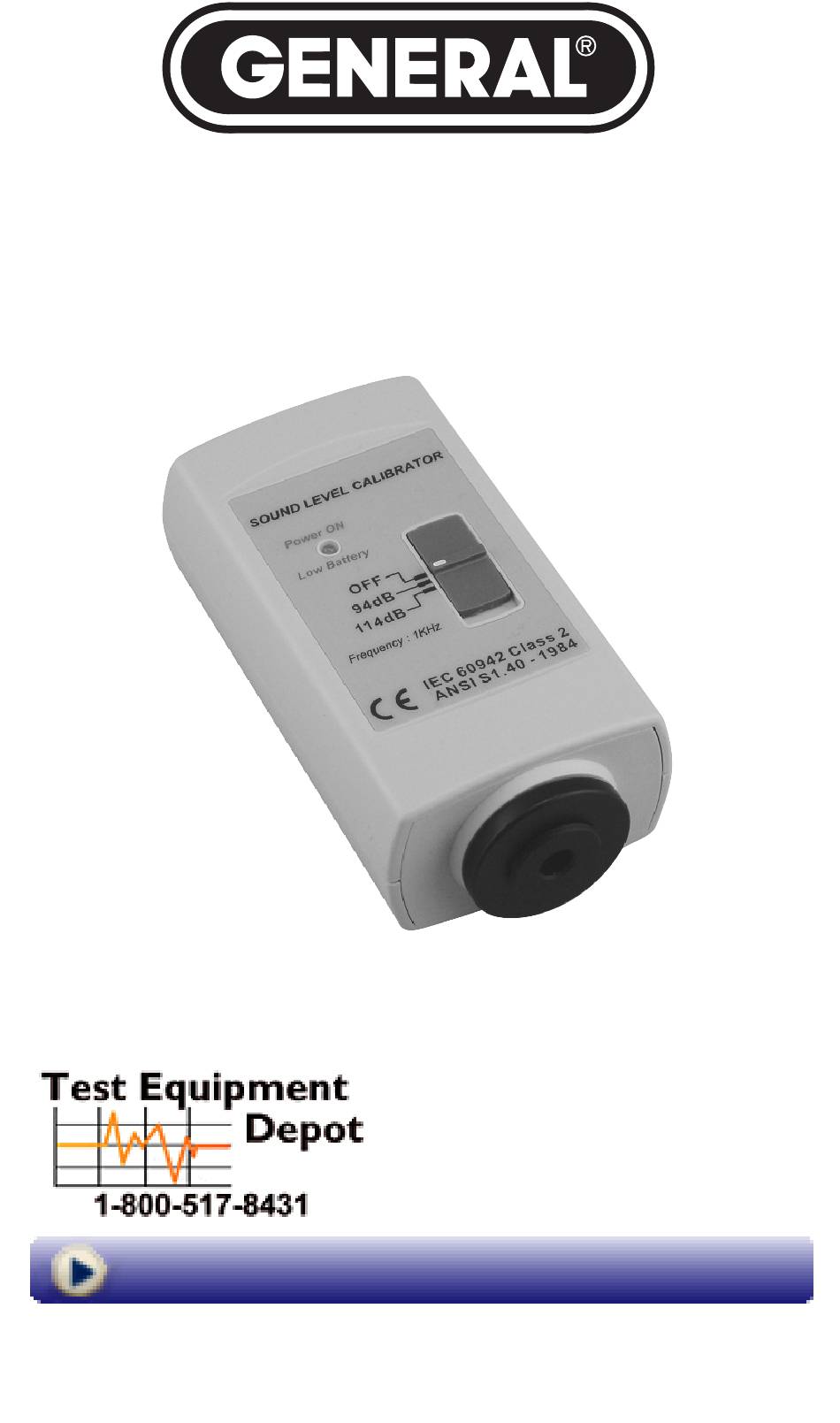

- Page 1 SOUND LEVEL CALIBRATOR USER’S MANUAL SCAL1356 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Please read this manual carefully and thoroughly before using this product.
-
Page 2: Table Of Contents
• Fits 1 in. and 1/2 in. microphones • Low battery indication • CE and RoHS approved WHAT’S IN THE PACKAGE The SCAL1356 comes in a soft pouch inside a white box. Also inside the pouch are a 1/2 in. microphone adapter, a certificate of... -
Page 3: Product Overview
traceable calibration, a “9V” battery and this user’s manual. PRODUCT OVERVIEW Power ON/Low Battery LED Power OFF/Output level selector switch Port sized for 1-in. microphone 1/2-inch microphone adapter Battery compartment... -
Page 4: Setup Instructions
SETUP INSTRUCTIONS INSTALL BATTERY 1. Turn the calibrator over and open the battery compartment by using a small flat-head screwdriver to remove the single screw securing the battery compartment cover. Take care not to lose the small screw. 2. Plug the included “9V” battery into the wired socket inside the compartment. -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS 1a. To calibrate a sound level meter with a 1/2-in. diameter microphone, insert the microphone into the 1/2-in. microphone adapter, which is supplied inserted into the bottom of the calibrator (see figure at right and Callout 4 of figure on page 3). 1b. - Page 6 3. Move the Power OFF/Output level selector switch on the SCAL1356 to the 94dB position. If the installed battery is adequately charged, the front panel Power ON/Low Battery LED will glow green. If the installed battery is weak, the LED will glow red. If the installed battery is dead, the LED will not illuminate at all.
-
Page 7: Specifications
After calibrating the sound level meter, move the Power OFF/Output level selector switch on the SCAL1356 back to the OFF position, to avoid unnecessarily draining the battery. SPECIFICATIONS Output Sound Pressure Levels: 94dB and 114dB at reference conditions (74°F/23°C, 50%RH, 1013hpa atmospheric pressure) Output sound pressure accuracy: ±0.5dB... -
Page 8: Warranty Information
60 days if you register at www.generaltools.com/ProductRegistry. This warranty does not apply to damages that General determines to be from an attempted repair by non-authorized personnel or misuse, alterations, normal wear and tear, or accidental damage. The defective unit must be returned to General Tools &... - Page 9 Acceptance of the exclusive repair and replacement remedies described herein is a condition of the contract for purchase of this product. In no event shall General be liable for any incidental, special, consequential or punitive damages, or for any cost, attorneys’...
-
Page 10: Return For Repair Policy
RETURN FOR REPAIR POLICY Every effort has been made to provide you with a reliable product of superior quality. However, in the event your instrument requires repair, please contact our Customer Service to obtain an RGA (Return Goods Authorization) number before forwarding the unit via prepaid freight to the attention of our Service Center at this address: Remember to include a copy of your proof... - Page 11 NOTES __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________...
- Page 12 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com ©2014 GENERAL TOOLS & INSTRUMENTS NOTICE - WE ARE NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS. MAN# SCAL1356 6/30/14 General Tools & Instruments GeneralToolsNYC...
