QUBINO Smart Meter Manual

Qubino
The INNOVATIVE and SMALLEST
Smart Meter
ORDERING CODE Z-WAVE FREQUENCY
ZMNHTD1 868,4 MHz
ZMNHTD2 921,4 MHz
ZMNHTD3 908,4 MHz
ZMNHTD4 869,0 MHz
ZMNHTD5 916,0 MHz
ZMNHTD8 865,2 MHz

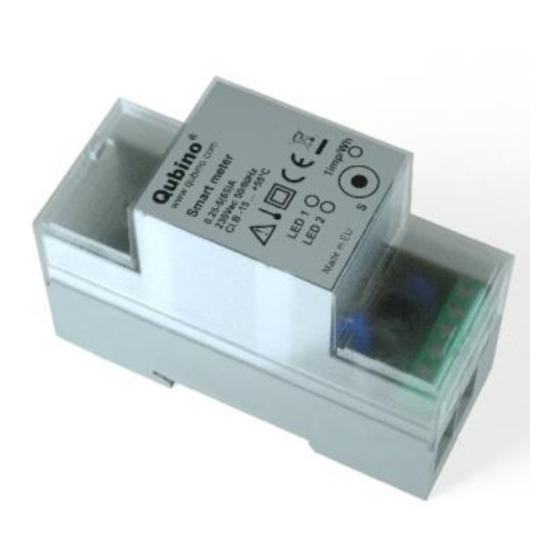

This Z-Wave module is used for energy measurements in
single-phase electrical power network and can be used in
residential, industrial and utility applications. Meters
measure energy directly in 2-wire networks according to
the principle of fast sampling of voltage and current
signals. A built-in microprocessor calculates energy,
power and power factor from the measured signals.
The module can be controlled through Z-wave network
and it acts as repeater in order to improve range and
stability of Z-wave network.
It is designed to be mounted on DIN rail.
Installation

To prevent electrical shock and/or equipment
damage, disconnect electrical power: remove main
fuse or put on OFF position a main disconnection
switch (or circuit breaker if it is compliant to standard
IEC947-2), before installation or any servicing.

Make sure, that no voltage is present in the
installation.

Prevent the disconnecting device from being
switched on accidentally.

Connect the module according to electrical diagram.

Locate the antenna far from metal elements (as far
as possible).

Do not shorten the antenna.
Danger of electrocution!

Module installation requires a great degree of skill
and may be performed only by a qualified and
licensed electrician.

Even when the module is turned off, voltage may be
present on its terminals.
Note!
Do not connect the module to loads exceeding
recommended values. Connect the module only in
accordance to the below diagrams. Improper connections
may be dangerous.
Electrical installation must be protected by over current
protection fuse with rated current up to 63A, it must be
used according to wiring diagram to achieve appropriate
overload protection of the module.
Package contents

Smart Meter
Electrical diagram 230VAC
IR
Notes for the diagram:
LI Live input
NI Neutral input
Lo Live output
No Neutral output
1 Input for IR external relay/Ext. relay
2 Neutral lead for input
4 Live lead for External relay output
5 Output for External relay (max. 3W)
S Service button (used to add or remove
module from the Z-Wave network).
LED1 Green - Power on (solid) / no ID (blinking
slow 1s) / Inc./Exc. mode (blinking fast
0,5s)
Yellow on – output on (any) / Yellow off –
LED2
outputs off (both)
IR Output for IR external relay
Red - Pulse rate (On – no load indication)
1imp/Wh
Measurements
Voltage V
Current I
Power – Active
W
Power – Active total Import
kWh
Power – Active total Export
kWh
Power – Reactive
var
Power – Reactive total
kvarh
Power – Apparent total
kVAh
Power Factor PF
External relays
It is possible to connect two external relay to Smart Meter
module. One controlled by built-in optical (IR)
communication port on the side, second controlled by
output on terminal 5.
Module Inclusion (Adding to Z-wave
network)

Connect module to power supply

enable add/remove mode on main controller

auto-inclusion (works for about 5 seconds after
connected to power supply) or

press service button S for more than 2 second
NOTE: For auto-inclusion procedure, first set main
controller into inclusion mode and then connect module to
power supply.
Module Exclusion/Reset (Removing
from Z-Wave network)

Connect module to power supply

bring module within maximum 1 Meter (3 feet) of the
main controller,

enable add/remove mode on main controller

press service button S for more than 6 seconds.
By this function all parameters of the module are set to
default values and own ID is deleted.
If service button S is pressed more than 2 and less than 6
seconds module is excluded, but configuration
parameters are not set to default values.
Association
Association enables Smart Meter module to transfer
commands inside Z-Wave network directly to other Z-
Wave modules.
Associated Groups:
Group 1: Lifeline group (reserved for communication with
the main controller), 1 node allowed.
Configuration parameters
Parameter no. 7 – Input 1 switch function selection
Available congig. parameters (data type is 1 Byte DEC):

default value 4

0 - disabled

2 - IR external relay control – mono stable push
button

3 - IR external relay control - bi stable switch

4 - External relay control – mono stable push button

5 - External relay control – bi stable switch
Parameter no. 10 - Activate / deactivate functions ALL
ON / ALL OFF
Available config. parameters (data type is 2 Byte DEC):

default value 255

255 - ALL ON active, ALL OFF active.

0 - ALL ON is not active, ALL OFF is not active

1 - ALL ON is not active, ALL OFF active

2 - ALL ON active, ALL OFF is not active
Smart Meter module responds to commands ALL ON/
ALL OFF that may be sent by the main controller or by
other controller belonging to the system
Parameter no. 11 - Automatic turning off IR external
relay output after set time
When IR external relay is ON it goes automatically OFF
after time defined by this Parameter. Timer is reset to
zero each time the module receive ON command
regardless from where it comes (push button, associated
module, controller,..). Available configuration parameters
(data type is 2 Byte DEC):

default value 0

0 - Auto OFF disabled

1 - 32535 = 1second - 32535 seconds. Auto OFF
enabled with define time, step is 1s.
Parameter no. 12 - Automatic turning on IR external
relay output after set time
When IR external relay is OFF it goes automatically ON
after time defined by this Parameter. Timer is reset to
zero each time the module receive OFF command
regardless from where it comes (push button, associated
module, controller,..). Available configuration parameters
(data type is 2 Byte DEC):

default value 0

0 - Auto ON disabled

1 - 32535 = 1second - 32535 seconds. Auto ON
enabled with define time, step is 1s.
Parameter no. 13 - Automatic turning off External
relay output after set time
When External relay is ON it goes automatically OFF after
time defined by this parameter. Timer is reset to zero
each time the module receive ON command regardless
from where it comes (push button, associated module,
controller,..). Available configuration parameters (data
type is 2 Byte DEC):

default value 0

0 - Auto OFF disabled

1 - 32535 = 1second - 32535 seconds. Auto OFF
enabled with define time, step is 1s.
Parameter no. 14 - Automatic turning on External
relay after output set time
When External relay is OFF it goes automatically ON after
time defined by this parameter. Timer is reset to zero
each time the module receive OFF command regardless
from where it comes (push button, associated module,
controller,..). Available configuration parameters (data
type is 2 Byte DEC):

default value 0

0 - Auto ON disabled

1 - 32535 = 1second - 32535 seconds. Auto ON
enabled with define time, step is 1s.
Parameter no. 40 – Power reporting in Watts on power
change
Set value means percentage, set value from 0 – 100 =
0% - 100%. Available configuration parameters (data type
is 1 Byte DEC):

default value 10

0 - reporting disabled

1 - 100 = 1% - 100% Reporting enabled. Power
report is send (push) only when actual power in
Watts in real time changes for more than set
percentage comparing to previous actual power in
Watts, step is 1%.
NOTE: if power changed is less than 1W, the report is not
send (pushed), independent of percentage set. When
reporting Watts, module will automatically reports also V
(Voltage), A (Amperes), Power factor, kVar (Reactive
Power).
Parameter no. 42 – Power reporting in Watts by time
interval
Set value means time interval (0 – 32535) in seconds,
when power report is send. Available config. parameters
(data type is 2 Byte DEC):

default value 0

0 - Reporting Disabled

1 - 32535 = 1 second - 32535 seconds. Reporting
enabled, Power report is send with time interval set
by entered value. When reporting Watts, module will
automatically reports also V (Voltage), A (Amperes),
Power factor, kVar (Reactive Power).
Parameter no. 45 – Reset Power counters
Available config. parameters (data type is 1 Byte DEC):

default value 0

0 - no function

1 - reset counter 1 – KWh

2 - reset counter 2 – kVARh

4 - reset counter 3 – kVAh
