Table of Contents

ASPIRE SWIFT PATIENT MOVER
DETAILED ASSEMBLY GUIDE

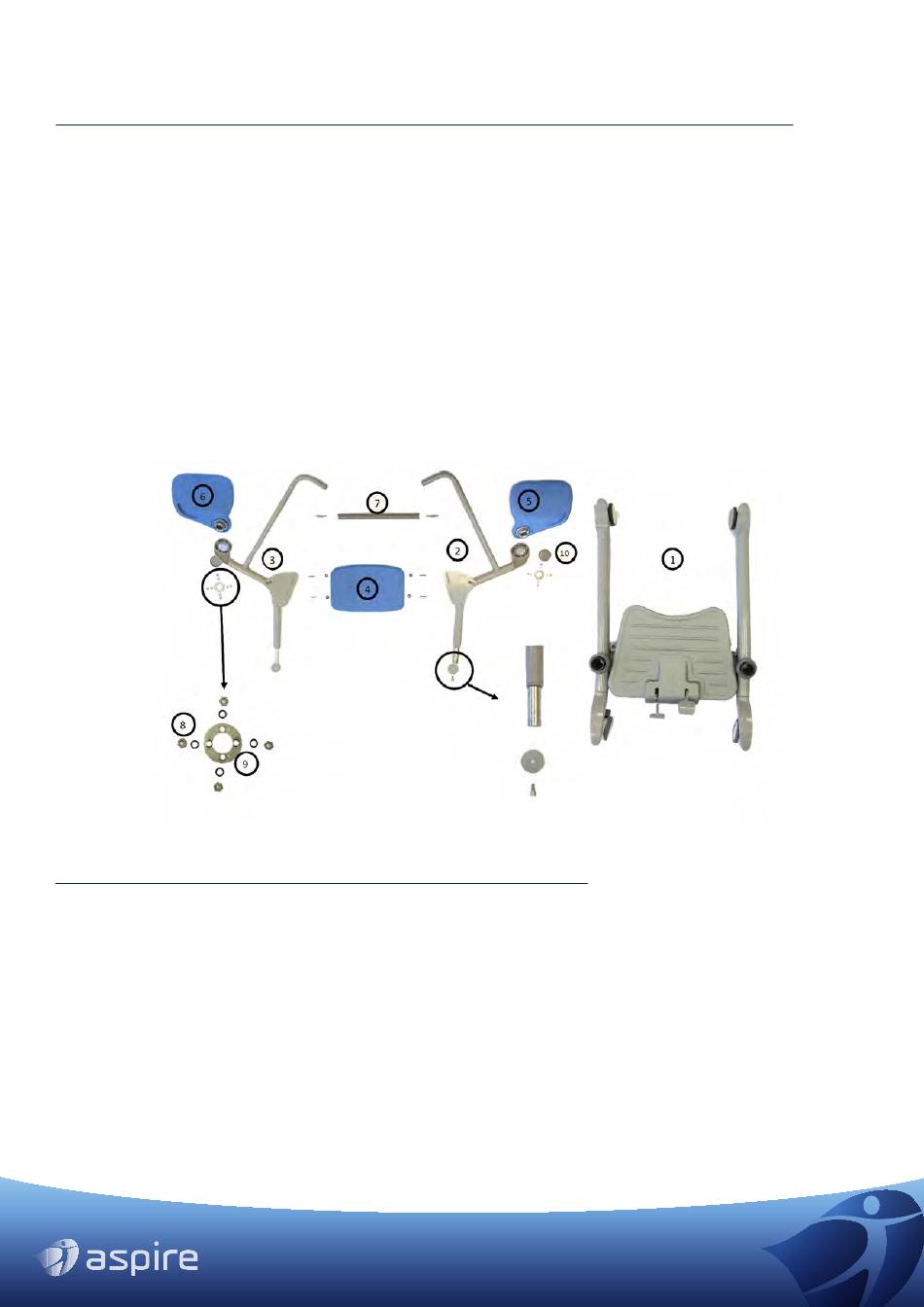

Carton Contains:

1.
Base Frame (x 1) – with 2 legs, 4 castors (2 rear locking), foot
platform with pedals for leg adjustment and 2 x M8 grub screws
2.
Upright Frame Right (x 1) – with M10 flat head bolts and washers
3.
Upright Frame Left (x 1) – with M10 flat head bolts and washers
4.
Knee Pad (x 1) – with plastic spacers, M8 hex nuts, bolts and
washers (x 4 each)
5.
Seat Pad Right (x 1)
6.
Seat Pad Left (x 1)
7.
M8 hex nuts and washers (x 4 each)
8.
Seat Pad retaining plates (x 2)
9.
Cover caps (x 2)
10. Grab Bar (x 1) – with sling peg bolts x 2

ASSEMBLY

Assembly of the Aspire Swift Patient Mover requires an open and flat work space such as a hard level floor or level work bench.
Assembly is a 6 stage process:
1.
Connecting the Seat Pads to the Upright Frames;
2.
Connecting the Upright Frames to the Base Frame;
3.
Connecting the Knee Pad;
4.
Connecting the Grab Bar;
5.
Fastening the Upright Frames to the Base Frame; and
6.
Checking, Tightening and securing all Fastenings.
www.aspirecare.com.au
www.aspirecare.com.au
1300 133 120
1300 133 120

Tools Required:

•
5mm hex/allen key
•
8mm hex/allen key
•
13mm socket
•
17mm open ended spanner
•
Ratchet
•
50 to 100mm thick block (either timber,
polystyrene, plastic etc. will be sufficient)
