INSTALL YOUR DEVICE

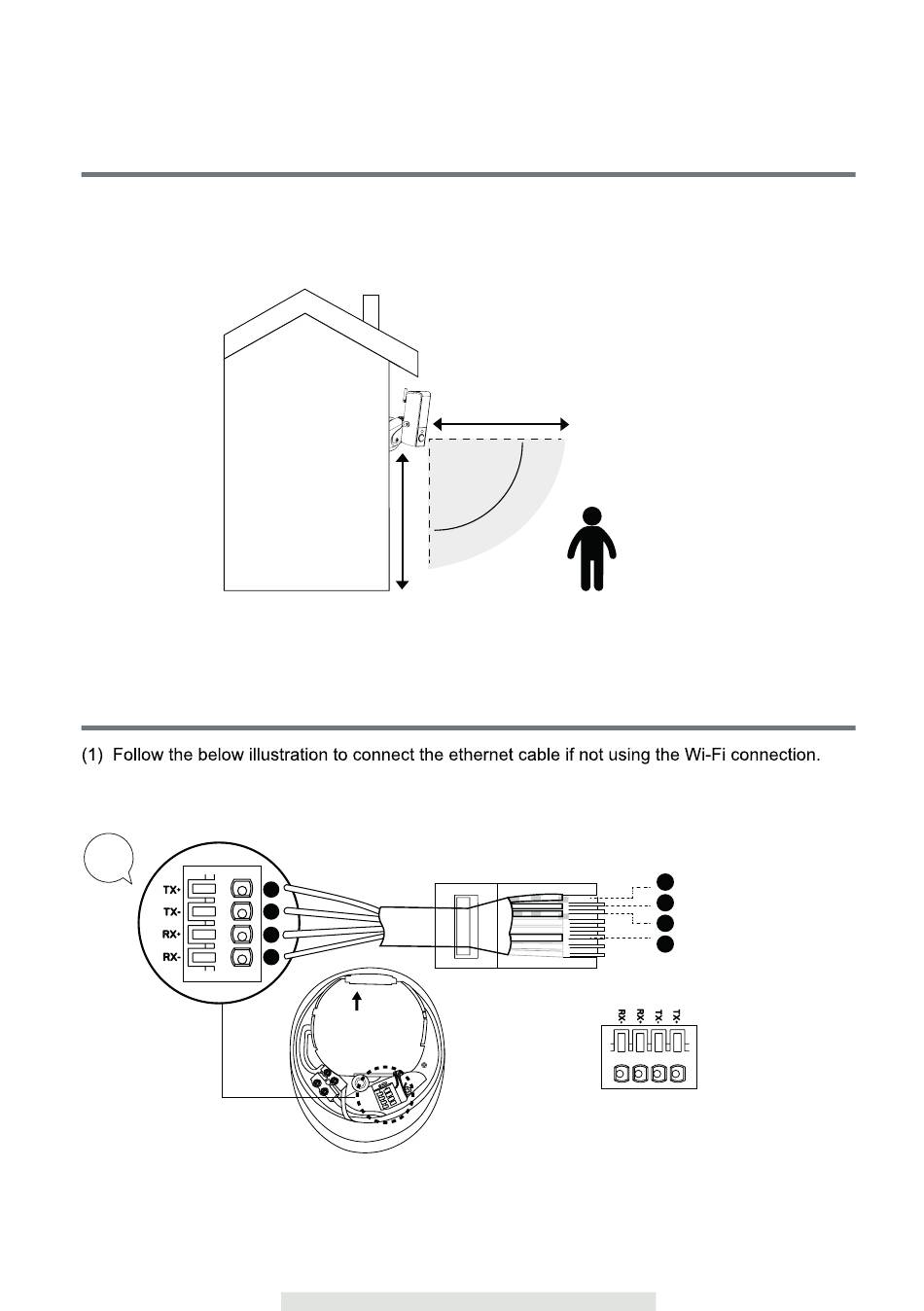

For optimal performance install the lighting camera at a hight between 2.5 and 4 meters.
Disconnect power at fuse or circuit breaker before proceeding to the installtion.

ETHERNET CONNECTION (OPTIONAL)

UP
2.5m Height
1
2
3
6
UP
Motion Detection 90˚
I/O Pin Connector
RX+/RX-/TX+/TX-: Ethernet Cable I/O*
*Ethernet cable not included in the package.
7
1
2
3
6
