Included Items & Connecting the Remote
The PD1201 Remote Display is designed for use with all PD1200 Series Inverters. The remote will allow complete monitoring of your in-
verter. This guide will help you install and use the remote control to monitor the functions of your inverter.
This PD1201 Remote Display User Guide is in addition to, and incorporate by reference, the relevant product information for each product
in the PD1200 Series Inverter. Before reviewing this guide, you must read the relevant product manual. Unless specified, information on
safety, specifications, installation, and operation is as shown in the primary documentation. Ensure you are familiar with that information
before proceeding.
Failure to do follow these instruction will result in your inverter to not function properly.

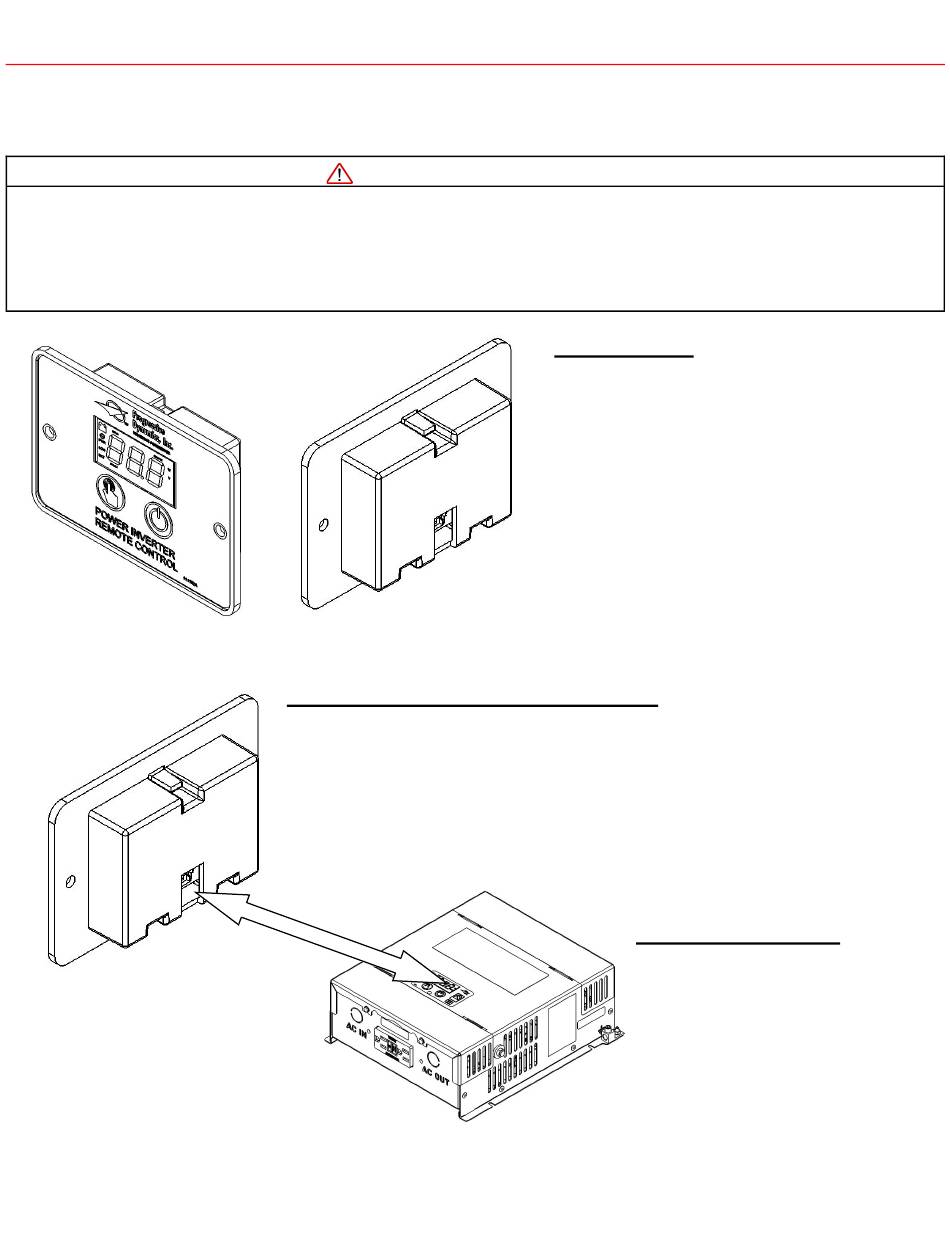

Figure 1
Inverter Remote (25' communication cable not shown)
Figure 2
NOICE: EQUIPMENT DAMAGE
Connecting the remote to the inverter
Plug the connector plug into the port on the top of the inverter and the back of the remote
control using the supplied communication cable (see Figure 2). Failure to use the supplied
communication cable may result in damage to the PD1201 Remote Display.
It is recommended that you install the remote into the desired location prior to connecting
the cable to the remote and the inverter. Please refer to the installation portion of this guide
for those instructions.
Connecting communication cable
Consult a licensed electrician or RV technician for installation assistance
Materials List
The PD1200 series inverter base package includes the
following items:

(1) PD1200 series inverter remote

(1) Owner's guide & mounting template

(1) 25' connection cable (included)
NOTE: If any of the items are missing, contact Progres-
sive Dynamics for replacement.
Verifying connection
Once the remote display is securely con-
nected to the PD1200 Series Inverter and the
inverter is turned on, it will begin displaying
readouts immediately. If your remote control
display does not begin to display information,
confirm that the communication cable is se-
cured connected into both ports on the in-
verter and the remote control.
