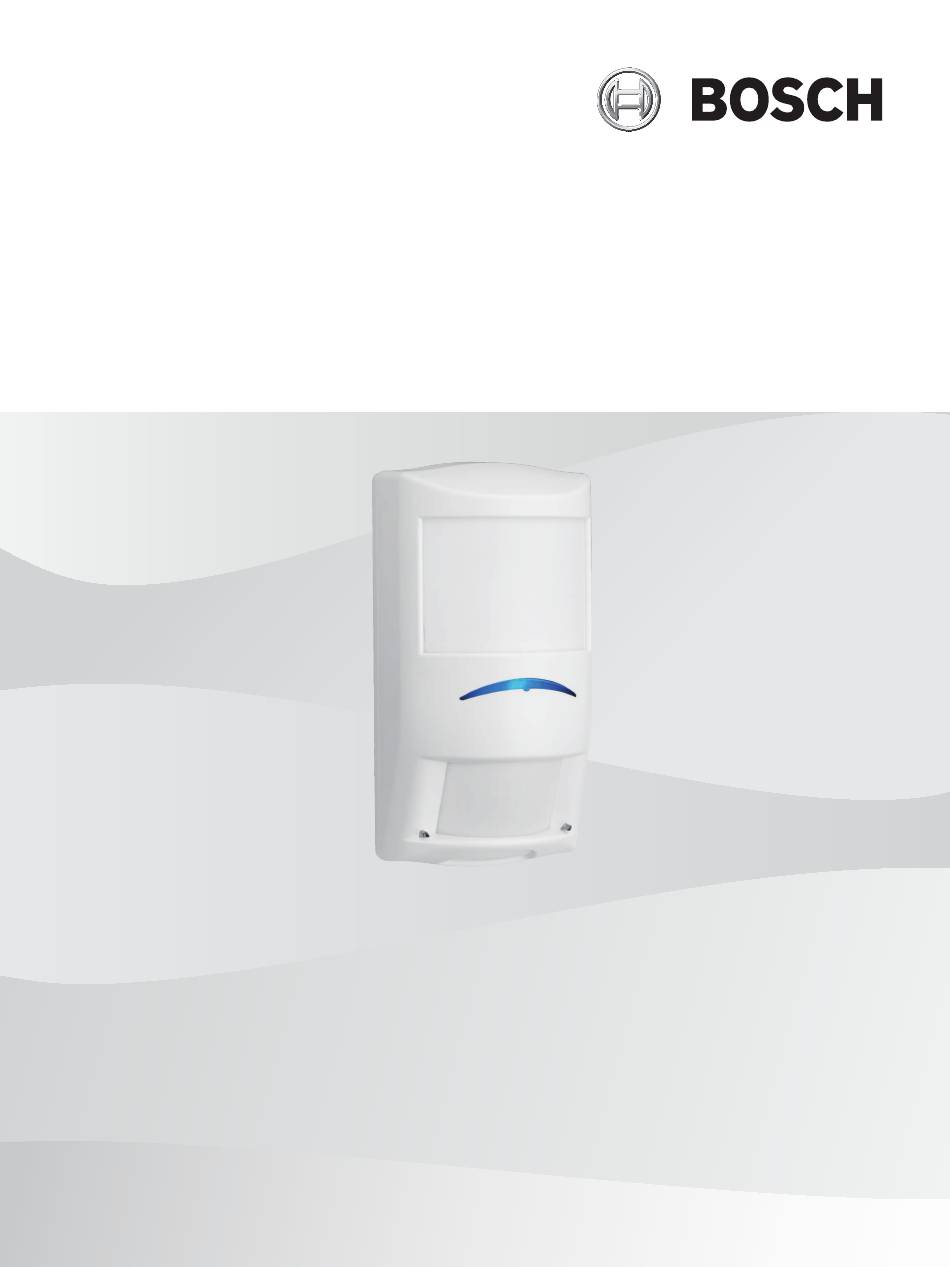

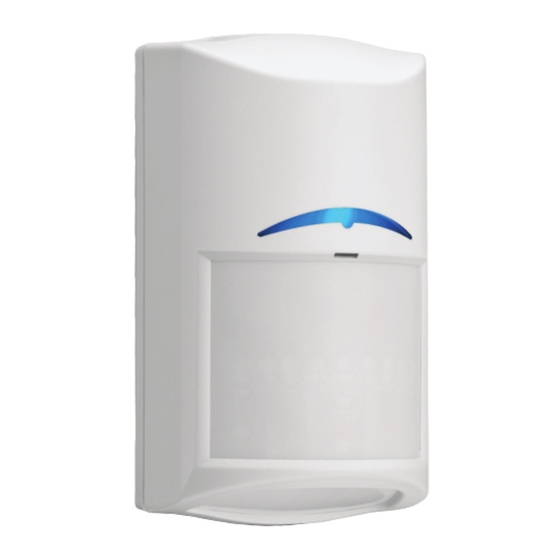

- Page 1 Professional Series TriTech AM Motion Detectors with Anti‑mask, LSN Reference Manual...
-
Page 3: Table Of Contents
Professional Series TriTech AM Motion Detectors Table of contents | en with Anti-mask, LSN Table of contents Safety Introduction About documentation Bosch Security Systems, Inc. product manufacturing dates Detector overview Installation considerations Installation Self-locking cam Install options Wire knockouts Bubble level... -
Page 4: Safety
| Safety with Anti-mask, LSN Safety Changes or modifications not expressly approved by Bosch Security Systems, Inc. can void the user’s authority to operate the equipment. At least once per year, vary the range and coverage. To ensure continual daily operation, instruct the end user to walk through the far end of the coverage pattern. -
Page 5: Introduction
Bosch Security Systems, Inc. product manufacturing dates Use the serial number located on the product label and refer to the Bosch Security Systems, Inc. website at http://www.boschsecurity.com/datecodes/. The following image shows an example of a product label and highlights where to find the manufacturing date within the serial number. -
Page 6: Detector Overview
Professional Series TriTech AM Motion Detectors en | Detector overview with Anti-mask, LSN Detector overview LSNi Callout — Description Callout — Description 1 — Terminal block 6 — LSN address switches 2 — Wall Tamper 7 — LSN address 1 switch (not used)* 3 —... -
Page 7: Installation Considerations
Professional Series TriTech AM Motion Detectors Installation considerations | en with Anti-mask, LSN Installation considerations When installing the detector, observe the following installation considerations. Notice! Bracket use Using a mounting bracket might reduce catch performance, range, as well as increase false alarms. - Page 8 Professional Series TriTech AM Motion Detectors en | Installation considerations with Anti-mask, LSN Do not install: Near objects that can block the field of view. Where an intruder would walk only directly toward or away from the detector. In a location where the detector’s field of view is blocked by movable objects such as boxes, furniture, doors or windows, window coverings, hanging signs, etc.
-
Page 9: Installation
Professional Series TriTech AM Motion Detectors Installation | en with Anti-mask, LSN Installation This section includes hardware details and the instructions you need to install the motion detector base. Self-locking cam The detector includes a self-locking cam for easy installation. Refer to the following information to open and close the detector. -
Page 10: Install Options
Professional Series TriTech AM Motion Detectors en | Installation with Anti-mask, LSN Install options Install the detector using the detector base. Install the detector on a flat wall or in a corner. Refer to Mount directly – for linking. Install the detector using a bracket. Refer to Install on a bracket, page 11. - Page 11 Professional Series TriTech AM Motion Detectors Installation | en with Anti-mask, LSN Install on a bracket Mounting brackets help align the detector to a vertical angle and to correct imperfections (non-perpendicular angles) of installation surfaces. Choosing a mounting bracket: –...
- Page 12 Professional Series TriTech AM Motion Detectors en | Installation with Anti-mask, LSN B328 B338 B335 Notice! Using a mounting bracket might reduce catch performance and range, as well as increase false alarms. Always install the detector within the recommended installation height, with or without a mounting bracket.
-
Page 13: Wire Knockouts
Professional Series TriTech AM Motion Detectors Installation | en with Anti-mask, LSN Notice! Do not use the bracket to tip the detector vertically unless you intend to compensate for a non-vertical surface. It might cause false alarms or reduced catch performance. -
Page 14: Bubble Level
Professional Series TriTech AM Motion Detectors en | Installation with Anti-mask, LSN Bubble level The detector’s coverage pattern performs best when the detector is installed vertically and is level both vertically and horizontally. The detector base includes a removable bubble level which helps you align the unit. - Page 15 Professional Series TriTech AM Motion Detectors Installation | en with Anti-mask, LSN Notice! Do not leave the bubble level in the circular holder. You cannot properly place the detector body onto the mounting base with the bubble level in the circular holder.
-
Page 16: Wiring
Professional Series TriTech AM Motion Detectors en | Wiring with Anti-mask, LSN Wiring Caution! Apply power only after you have made and inspected all connections. Do not coil excess wiring inside the motion detector. Refer to the wiring illustration for LSN wiring. -
Page 17: Look-Down And Walk Test
Professional Series TriTech AM Motion Detectors Look-down and walk test | en with Anti-mask, LSN Look-down and walk test Look-down zone The detector has a manual cam to enable or disable the look-down zone. Enable the look- down zone to detect motion under the detector area. - Page 18 Professional Series TriTech AM Motion Detectors en | Look-down and walk test with Anti-mask, LSN If the detector is in a low power supply fault condition, the LED flashes 5 times repeatedly. Notice! Some regulations require that you disable the LED after the walk test.
-
Page 19: Configuration
Professional Series TriTech AM Motion Detectors Configuration | en with Anti-mask, LSN Configuration Selecting the detector configuration setups are done using the control panel's supported remote programming software. The remote programming software allows you to enable or disable the configuration setups by selecting the appropriate menu options within the software. -
Page 20: Lsni Mode
Professional Series TriTech AM Motion Detectors en | Configuration with Anti-mask, LSN 8.1.2 LSNi mode Most of the classic features like topology characteristics and initialization order are transferable to the Neo-Classic (or LSNi) mode. The address assignment command, the address range and the cable range are different. -
Page 21: Anti-Mask
Professional Series TriTech AM Motion Detectors Configuration | en with Anti-mask, LSN [LSNPro/PDL2-A15GL/PDL2-A15HL] [LSNPro/PDL2-A15GL/PDL2-A15HL] Anti-mask < 30 cm (1 ft) < 30 cm (1 ft) This feature detects obstructions in the detector’s field of view. Obstructions include an object placed within 30 cm (1 ft) of the detector, or infrared blocking material placed or sprayed on the detector lens surface. - Page 22 Professional Series TriTech AM Motion Detectors en | Configuration with Anti-mask, LSN The Anti-mask Latched parameter within RPS is set to Yes or No. This parameter determines whether the Anti-mask alarm condition will require a reset. How to clear an Anti-mask Remove any foreign objects that might be interfering or causing the detector to be blocked or masked.
-
Page 23: Walk Test
Professional Series TriTech AM Motion Detectors Configuration | en with Anti-mask, LSN Walk test Before you begin the walk test, review the walk test LED indicator statuses. At the beginning of the test, with no motion in the protection area, the LED should be OFF. If you observe LED activity without movement, check for disturbances affecting the microwave or PIR technologies. -
Page 24: Establish The Coverage Pattern
Professional Series TriTech AM Motion Detectors en | Configuration with Anti-mask, LSN If on the last walk test, you observe LED activity while walking outside the coverage area, decrease the microwave Doppler radar range and repeat the walk test. Notice! Do not adjust the microwave Doppler radar range higher than required. -
Page 25: Self Test
Professional Series TriTech AM Motion Detectors Configuration | en with Anti-mask, LSN Self test The detector performs a routine self-test every 7 hours, testing both the PIR and microwave Doppler radar circuit. If either technology fails the self-test, the detector indicates a trouble condition by activating the trouble output and the LED 4 flash pattern. -
Page 26: Troubleshooting
Professional Series TriTech AM Motion Detectors en | Troubleshooting with Anti-mask, LSN Troubleshooting Detector does not appear to respond to motion Potential causes – Insufficient power – Loose wires in the terminals – Cabling or wiring error – Defective unit –... -
Page 27: Detector Led Flashes Three Times In A Row Repeatedly
Professional Series TriTech AM Motion Detectors Troubleshooting | en with Anti-mask, LSN Detector LED flashes three times in a row repeatedly Potential causes – Masking attempt is detected – The installer or an object is too close to the detector during the power-up period... -
Page 28: Appendix
Professional Series TriTech AM Motion Detectors en | Appendix with Anti-mask, LSN Appendix Use the table for descriptions of icons and symbols used in the reference guide. Description Icon/symbol Small animal immunity. Signifies that the item is the correct choice, selection, or location. - Page 29 Professional Series TriTech AM Motion Detectors Appendix | en with Anti-mask, LSN Frequency and power range Detection Range. This is an example of a detectors detection range. 8 M 25 FT Remote Programming Software (RPS). Use this to perform programming functions.
- Page 30 Professional Series TriTech AM Motion Detectors en | Appendix with Anti-mask, LSN Perform a walk test Walk test has concluded Device has wall tamper detection. Video. This icon and associated QR code are linked to point of need self-help videos.
- Page 32 Bosch Security Systems, Inc. Bosch Sicherheitssysteme GmbH 130 Perinton Parkway Robert-Bosch-Ring 5 Fairport, NY 14450 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Security Systems, Inc., 2018...
