Prevail Cycler
Instruction Manual
Chlorine Pool-Care System
for Pools up to 25,000 Gallons
WARNING
Customer Service 800-222-0169
To minimize the risk of serious injury, death or
damage, before installing or first using this
kingtechnology.com
equipment, read Instruction Manual and all safety
labels and follow all safety instructions and
precautions. Save manual for future reference.
Ver la versión en español de este manual en kingtechnology.com/knowledge-center/manuals-diagrams
1
Advertisement
Table of Contents
Related Manuals for King Technology Prevail Cycler 170
Summary of Contents for King Technology Prevail Cycler 170
- Page 1 Prevail Cycler Instruction Manual Chlorine Pool-Care System for Pools up to 25,000 Gallons WARNING Customer Service 800-222-0169 To minimize the risk of serious injury, death or damage, before installing or first using this kingtechnology.com equipment, read Instruction Manual and all safety labels and follow all safety instructions and precautions.
-
Page 2: Table Of Contents
Step 3: Setting the Control Dial Step 4: Routine Pool Care Winterizing Troubleshooting Parts List Maintenance - Replacing Control Dial O-Rings Maintenance - Replacing Cap O-Rings and Knobs Warranty For information on King Technology’s entire product line, visit our website at kingtechnology.com... -
Page 3: Prevail Introduction

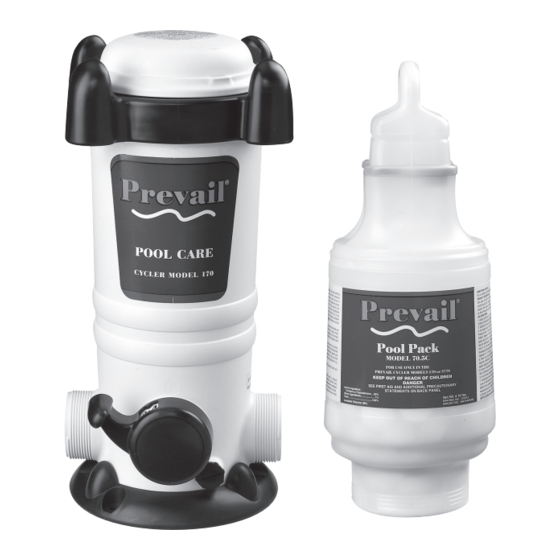

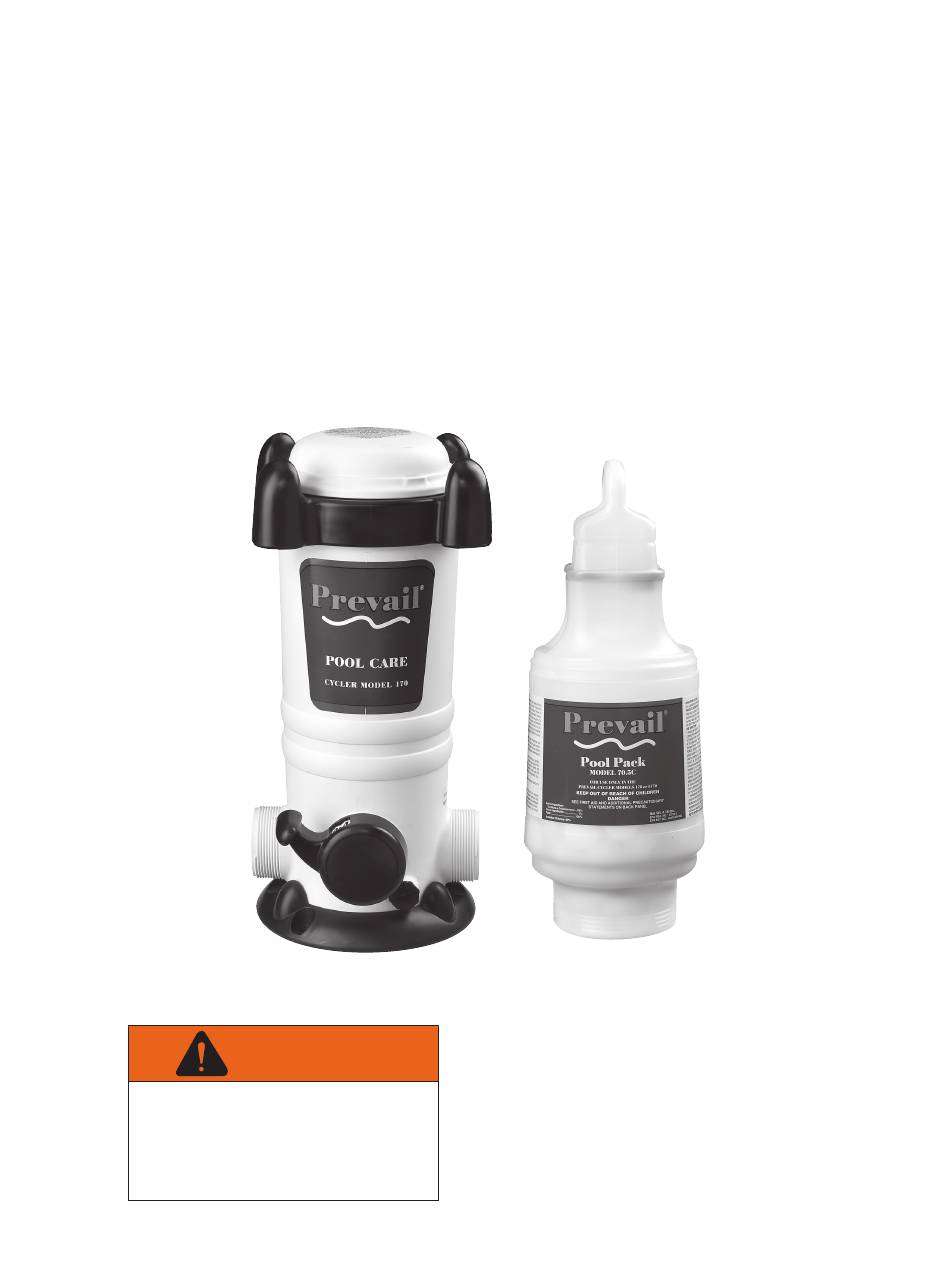

There are two parts to the Prevail System: Part 1: Prevail Cycler 170 Part 2: Prevail Pool Pack 70.5C The water treatment center that controls the flow Prefilled with chlorine tablets and fits inside the of water through the Prevail Pool Pack. -
Page 4: Notes And Safety Information
Should further informa- follows the instructions and safety precautions. tion be desired or should particular issues arise which are not covered sufficiently in this manual, contact King Technology at • Keep the instructions nearby and available for reference 800-222-0169. -
Page 5: Safety Labels On Prevail Cycler
Safety Label on Cycler Review this label before installing or operating this Cycler. Contact King Technology at 800-222-0169 if this label is missing from your Prevail Cycler. Fire, explosion and high pressure hazards To minimize the risk of serious injury, death or property damage while using the Prevail Cycler: a Read, understand and follow all instructions and safety precautions in the manual, and on this Cycler and on any label for chemicals used with this Cycler including Prevail Pool Packs. -
Page 6: Installation Tips To Ensure Proper Performance
Lower back pressures could result in under POOL WATER LEVEL POOL WATER LEVEL chlorination. Change the eyeball fittings in the return jets to a smaller size to increase back pressure. Contact King Technology at Line 2 IN-FLOOR 800-222-0169 for a specially designed CLEANER VALVE... -
Page 7: Filter Flex-Hose Installation
To avoid over or under chlorination, replace eyeball fittings in the return jets to a smaller or larger size to adjust back pressure. For best results use King Technology’s pressure gauge, order part number 1 1/2” x 6” HOSE NIPPLE 01-22-4000. -
Page 8: Base Flex-Hose Installation
& PUMP 1 1/2" OR 1 1/4" fittings in the return jets to a FLEX HOSE smaller or larger size to adjust back pressure. For best results HOSE use King Technology’s pressure CLAMP CHECK HOSE gauge, order part number VALVE ADAPTER 01-22-4000. -
Page 9: Hard-Plumbed Installation
Hard-Plumbed Installation TOOLS NEEDED Pipe Wrench Hacksaw The Prevail Cycler should always be installed between the Do NOT install in copper pipe as filter and pool (or between heater and pool if applicable). chemical corrosion may lead to pipe Tape Never install Prevail Cycler before the heater or damage failure. -
Page 10: Step 1: Preparing The Pool
Step 1: Preparing the Pool Make sure the pool has adequate Check for metals in the pool such circulation. The total volume of pool as iron or copper. Before attempting water must completely circulate Metal water balance, these should be through the pump and filter at least removed. - Page 11 Continue... Step 1: Preparing the Pool For best results in achieving water balance, follow Initially shock the pool with chlorine shock only to rid the water of contaminants and establish a chlorine steps 5a through 5e in order. residual. Always follow the manufacturer’s directions carefully.
-
Page 12: Step 2: Putting The System To Work
Step 2: Putting the System to Work Avoid a If openings are pinched DANGER pinched together, open with fingers or opening. Never use fast dissolving chlorine tablets, liquid bleach, re-cut closer to the colored or calcium hypochlorite in the Prevail Cycler. A correct screens inside Prevail Pool oval... -
Page 13: Step 3: Setting The Control Dial
Step 3: Setting Control Dial This system is designed to work effectively with a variety of pool equipment as long as the following procedures are followed. Set control dial on Prevail Cycler by matching up the parameters of your pool on the chart below. THIS IS A STARTING POINT ONLY and may need to be adjusted to fit your individual pool needs. -
Page 14: Step 4: Routine Pool Care
Step 4: Routine Pool Care Shock the pool every week Run filtration system enough hours to circulate all water 1 to 2 times per or as needed with a chlorine or day. More than that could result in a non-chlorine shock. over chlorination. -
Page 15: Winterizing
Winterizing Turn pump off. Remove Prevail Pool Pack Turn dial to Setting 0. If Pack still contains chlorine, wrap in plastic bag and store in shed or cool, dry, well-ventilated Remove cap. location away from children, pets, cars, motorcycles or anything metal that can rust, pit, etc. -
Page 16: Troubleshooting
Troubleshooting For help in troubleshooting call King Technology at 800-222-0169. Problem Remedy 1. Make sure your filtration time if not. free chlorine reading of What do I do system is working properly (i.e. 1.0 to 3.0 ppm. if the water looks 3. -
Page 17: Parts List
Parts List SILICONE LUB RICANT 9 & 10 Included with Prevail Cycler 170 Replacement Parts for Prevail 170 REF. # DESCRIPTION QTY. INCLUDED REF. # PART NO. DESCRIPTION 1 & 2 Cap w/O-Ring 1 & 2 01-22-1410 Cap w/O-Ring Body... -
Page 18: Maintenance - Replacing Control Dial O-Rings
Cycler Maintenance Replacing the Control Dial O-Rings Replacing Cap O-Ring Remove old O-ring. Center of locking pin Top half of groove. In the back of the Prevail Cycler depress center of locking pin with a finger and Place new O-ring in bottom pull pin out of dial. -
Page 19: Warranty
Limited One-Year Warranty King Technology, Inc. will warrant this unit with a complete replace- 3. Any express warranty not provided for herein, and any remedy for ment for the original purchaser, should it prove defective by reason breach of warranty or breach of contract which, but for this provision,... - Page 20 MANUFACTURED BY 530 11th AVENUE SOUTH HOPKINS, MINNESOTA 55343 952-933-6118 • 800-222-0169 kingtechnology.com Patents: kingtechnology.com/IP Prevail is a registered trademark of King Technology, Inc. 20-48-0129 553121843R4N...
