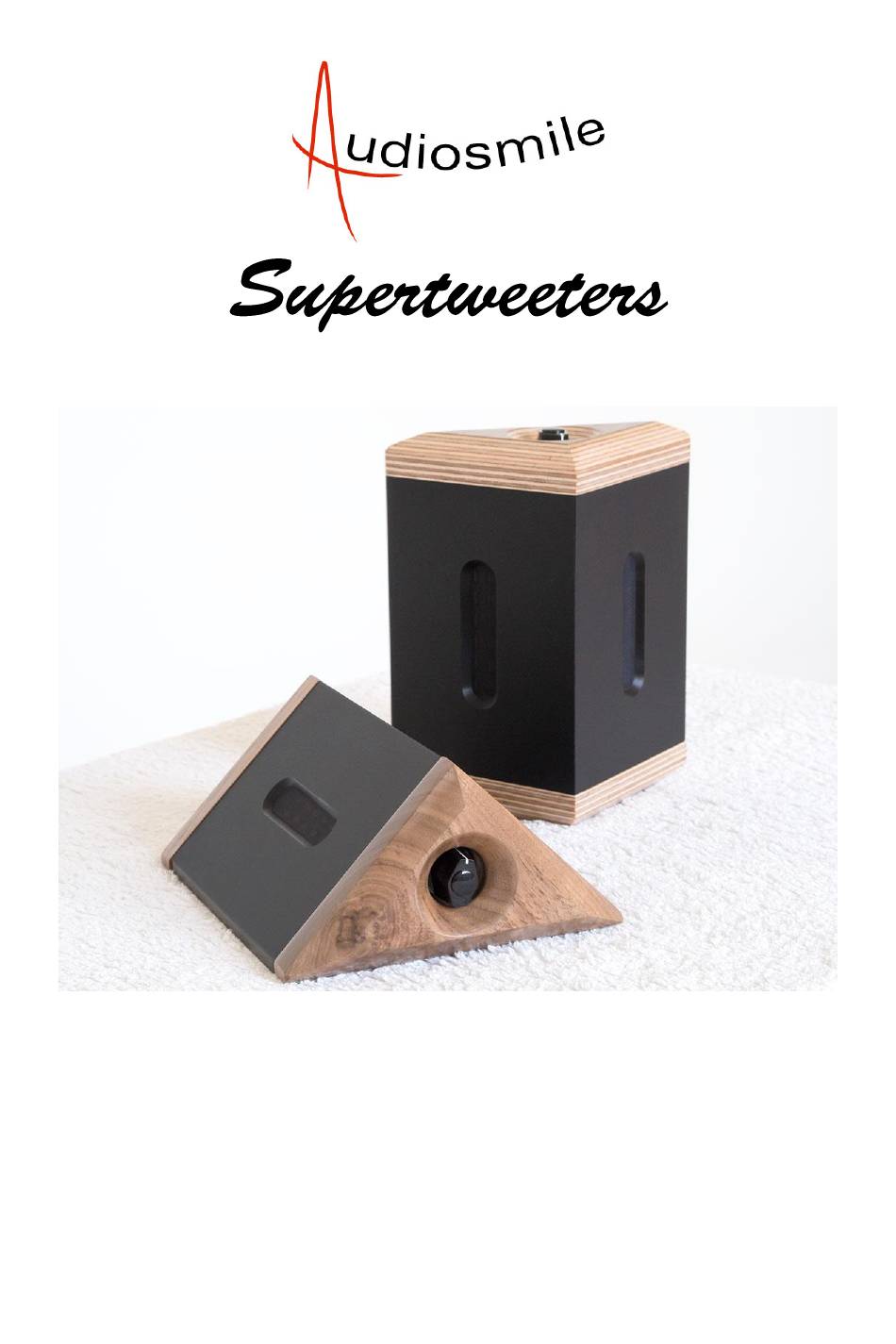

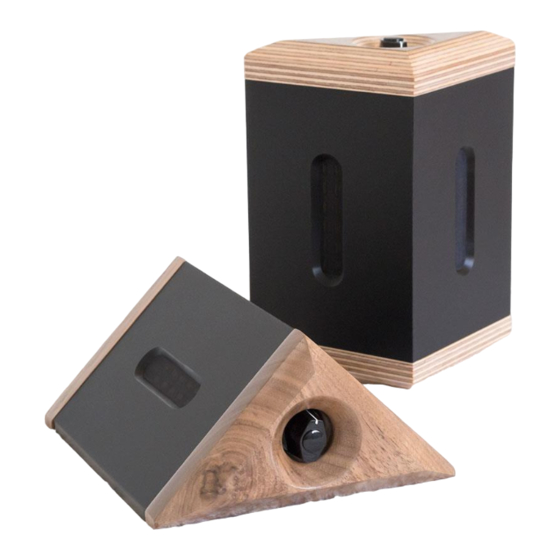

- Page 1 MK3 User Guide 2017...
- Page 2 Specifications: Size: 13cm x 8cm x 16cm WHD Weight, Each: ~900g Frequency Range: Extension to 40KHz Max. Output 95dB per ribbon (98dB per supertweter) Harmonic Distortion: ~0.4% Impedance - *Important* Source amplifier should have an output impedance of <0.1 Ohms. Higher figures will cause response irregularity.
- Page 3 Connection: The supertweeters should be linked from the binding posts on the back of your main speakers using a short length of cable. Cable is supplied pre- terminated with 2mm banana plugs to fit the supertweeters.
- Page 4 Switches: The rotary switch on the back of the supertweeter selects the filter frequency and has 3 positions. These are as pictured below. The rotary switch on the front of the supertweeter selects the output level and has 6 positions. These are as pictured below.
- Page 5 Position: The position of the supertweeter can affect the sound greatly. There are essentially 3 ways the supertweeter can be positioned for typical box speakers, however experimentation is the only way to find the best sound for your system, room acoustics and personal taste. The supertweeters should be placed on top of the main speakers towards the back of the cabinet.
- Page 6 FAQ: Q. What amp power do the supertweeters require? A. The supertweeters only draws power above 10KHz. Total power requirement is therefore very small. Q. What is the impedance of the supertweeter? A. The level setting affects the minimum impedance of the supertweeters. At the lowest level setting, the impedance minimum is 6 Ohms.
- Page 7 The warranty does not cover damage or defects caused by: a) unauthorised modification of the unit; or b) accidental damage. All claims must be accompanied by proof of purchase. AudioSmile, 88 Ingram Road, Gillingham, ME7 1SH, UK www.audiosmile.co.uk Tel. +44 (0)7952 478 193 Email. ashton@audiosmile.co.uk...
