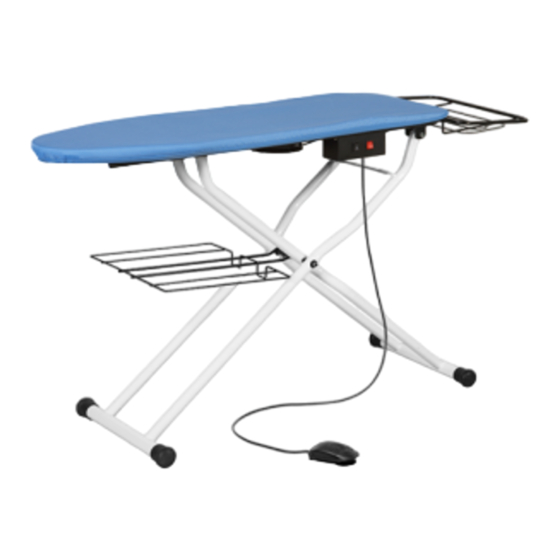

ASSEMBLY INSTRUCTIONS C8S, C8B, C8SB
C81 AND C88 PRESSING TABLES
If your table is produced before January 1, 2009 (please refer to the data label
under the black metal box with the switches) please follow these instructions.
Remove the ironing board cover.
Using the bracket as a template, drill 5 holes of 3.5 mm at the base of the
ironing board, at a distance of 20 cm from the steam station tray.
Place the support bracket in the right position and screw in the 5 screws.
Replace the cover on the board.
Fix the bottle holder C8B with the washer and screw and fix the wand
perpendicular to the bottle holder tube with washers and nuts, as indicated in
the drawing.
Fix the nut to the support using the screw and the washer; insert the rotating S-
tube and finally the sleeve arm board in the tube.
If your table is produced after January 1, 2009 (please refer to the data label under
the black metal box with the switches) please follow these instructions.
Remove the ironing board cover and unscrew the 5 screws below the board.
Place the support bracket in the right position and screw in the 5 screws.
Replace the cover on the board.
Fix the bottle holder C8B with the washer and screw and fix the wand
perpendicular to the bottle holder tube with washers and nuts, as indicated in
the drawing.
Fix the nut to the support using the screw and the washer; insert the rotating S-
tube and finally the sleeve arm board in the tube.
