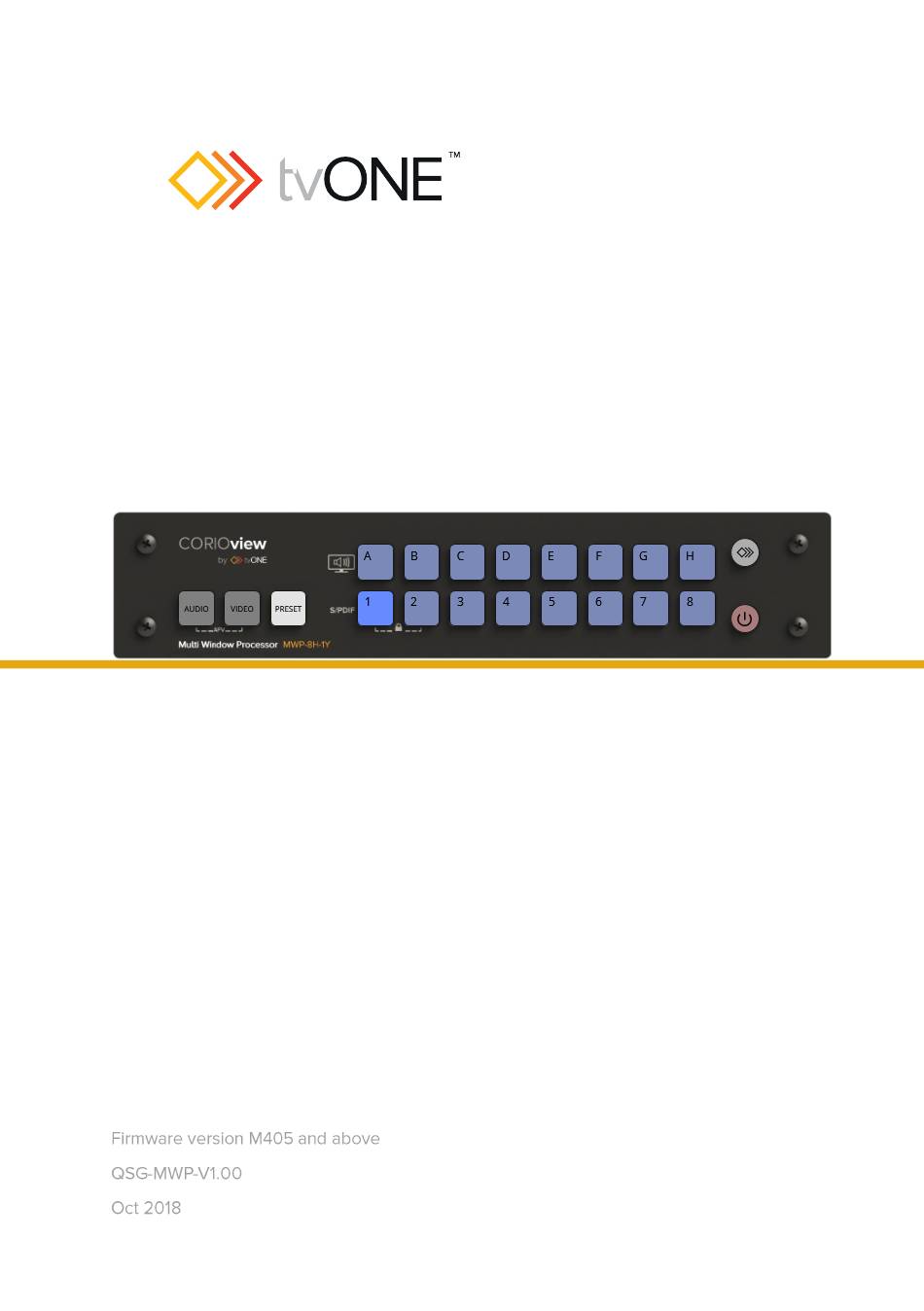

- Page 1 CORIOview™ Multi Window Processor CORIOgrapher™ V2.6 and above Quick Start Guide V1.00...
- Page 2 tvONE...
-
Page 3: Table Of Contents
Regulatory compliance ....................... 16 Contact us ..........................16 Get more help There are more Quick Start Guides available on the USB drive that came with your CORIOview. CORIOgrapher™ now comes with fully searchable help, just select ? and search, or ask a question. -
Page 4: Welcome
Congratulations on your purchase of CORIOview, Multi-Window Processor re-defined! Your CORIOview works with CORIOgrapher software allowing you to configure your unit with ease. Your CORIOview is the best tool to make the most of your visual space. 4K Processor with pixel perfect scaling... -
Page 5: Hardware Recommendations
Hardware recommendations At tvONE, we design our products to the highest quality standards. To get the best results from our products, we recommend that you use the best quality connectors, cables, and adapters. Consider the points below when you choose accessories and position equipment. -
Page 6: About Your Corioview
About your CORIOview CORIOview rear panel S/PDIF audio output Connect to audio device with RCA Power supply input Connect to an electrical outlet with PSU Input module (black) Connect to sources Output module Connect to displays (white) Connect to your network with Ethernet... -
Page 7: About The Buttons Of Your Corioview
CORIOview mounting accessories You can mount your CORIOview to a surface, rack, or ONErack system with our mounting accessories, sold separately. Ask your distributor about: RM-CV-1RU-SINGLE mounting for single CORIOview unit, it has space for • external power supply RM-CV-1RU-DUAL mounting for two CORIOview units •... - Page 8 Toggles on or off info information labels button viewed on the display. Standby mode Standby mode Standby CORIOview is in low button lit other power mode and not buttons not lit displaying content. Standby button Normal mode and other buttons lit...
- Page 9 Selecting the window source VIDEO To select the window source, press and release the button, then a • window button , then a source button Selecting a preset PRESET To select a preset, press and release the button, then a preset •...
-
Page 10: About Coriographer
About CORIOgrapher CORIOgrapher is the software that controls your CORIOview for example window sources, preset layout, and transitions for a state-of-the-art dynamic video wall experience. CORIOgrapher: Works with PCs running Windows ® 7 and 10 • Works with Surface Pros and similar touch screen devices [touch not fully •... -
Page 11: Quick Start
Quick start This Quick Start Guide gives you an overview of the steps involved in setting up your CORIOview hardware and CORIOgrapher software. Install your hardware Connect your display and sources to your output and input modules. Connect the LAN port of the CPU module to your network. - Page 12 Source does not support the • required number of HDCP keys Poor quality or damaged • cables OPTIONAL: You can test the audio of each audio source. AUDIO Press and release the button, then press and release each audio source button from tvONE...
- Page 13 Make sure your inputs and embedded output are not muted from CORIOgrapher. Install CORIOdiscover™ and CORIOgrapher. Your CORIOview comes with a USB drive, which contains software for installing CORIOdiscover and CORIOgrapher. Open CORIOgrapher and select your CORIOview. Enter your username and...
- Page 14 OPTIONAL, if you aren't connected to a CORIOview, you can create an offline configuration for your device. The media player of the Dual Stream In module is not available when you work in an offline configuration. OPTIONAL, but recommended: name your input and output ports.
- Page 15 Next steps Congratulations, your device is set up! If your CORIOview contains one or more Dual Stream In modules, you need to set those up too. Read about setting up the Dual Stream In module in CORIOgrapher Help.
-
Page 16: Regulatory Compliance
