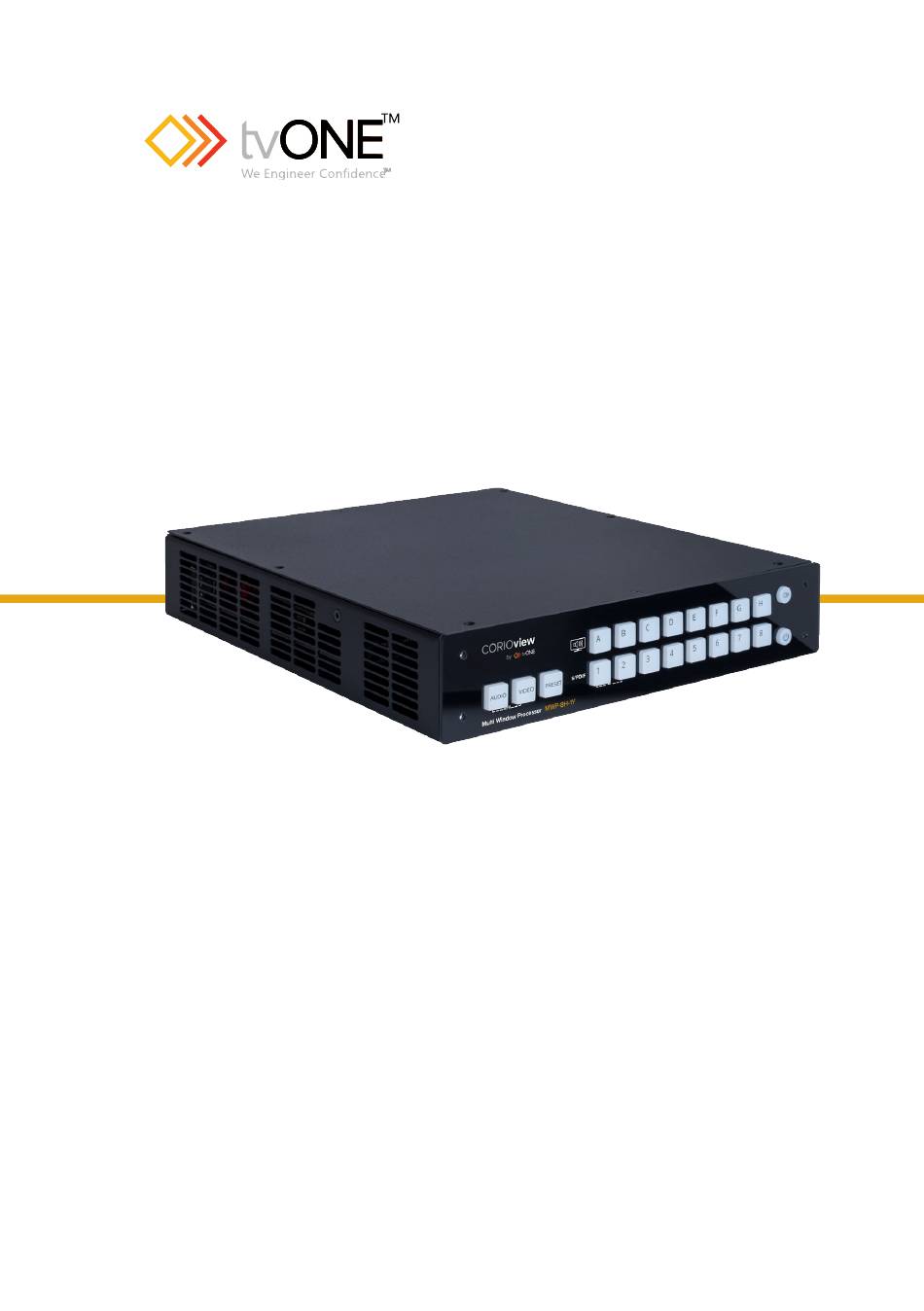

- Page 1 CORIOview™ Multi-window Processor Classic mode Dynamic mode CORIOgrapher™ V2.9 and above Quick Start Guide V1.20 Firmware version M409 and above QSG-MWP-V1.20 Oct 2019...
-
Page 2: Table Of Contents
In this guide Quick start About your CORIOview™ About the buttons of your CORIOview™ Using the buttons of the front panel in dynamic mode Using the buttons of the front panel in classic mode Hardware recommendations About CORIOgrapher™ CORIOgrapher™ system requirements Contact us Start a simple meeting... - Page 3 Get more help You can read more online. To open the online help, select in CORIOgrapher, or visit help.tvone.com/products/mwp-series/corioview. Thanks for buying this CORIOview multi-window processor. CORIOview works with CORIOgrapher software to support your needs with an easy-to- use interface and front panel buttons.
-
Page 4: Quick Start
It's easy to get started with your CORIOview, but if you want more help with any of these steps, or with using the features of CORIOgrapher, select CORIOgrapher and search, or ask a question. Or visit help.tvone.com/products/mwp-series/corioview. 1. Install your hardware. a. Connect your display or displays to your output module. - Page 5 Press PRESET, and then select the highest number button that is lit. For example, if buttons 1-4 are dimly lit, press button 4. Make sure your sources are playing, check that each picture looks correct. Not the source you were Sources and display connected expecting correctly...
- Page 6 Read more about controlling audio with CORIOgrapher in tvONE Help. In CORIOgrapher, select and search, or ask a question. 4. Install CORIOdiscover and CORIOgrapher. Download the latest version of CORIOdiscover and CORIOgrapher from tvone.com/softwares. 5. Open CORIOgrapher and select your CORIOview.
- Page 7 You can change the operating mode later. Read about changing your operating mode in tvONE Help. If you selected classic mode, continue on page 6. If you selected dynamic mode, continue on page 8.
- Page 8 2. Optional, but recommended: name your input and output ports. Select > Slot Status. Give each port a name that describes the device connected to it. 3. Optional: If you want to use more than one display, enable output cloning. tvONE...
- Page 9 a. From Dashboard, select b. From Properties< (Clone Output) select On. 4. Optional: If you want your displays in portrait orientation, enable output rotation. QSG-MWP-V1.20...
- Page 10 1. Optional: enable secure mode. a. Select > Networking. b. Select Secure connection. c. Select Save > Save. CORIOview restarts. d. Select Secure and log in. 2. Optional: If you want to use more than one display, enable output cloning. tvONE...
- Page 11 a. From Dashboard, select b. From Properties > (Clone Output) select On. 3. Optional: customize your window labels. You can choose the label text that appears on each window on your display. a. From Dashboard, select underneath a presenter. For example, to add a custom label for presenter A, select underneath presenter A.
- Page 12 Read about setting up the Streaming media and 4K playback input module in tvONEhelp. If you're using dynamic mode, you can start a simple meeting. Read about starting a simple meeting on the back cover of this quick start guide. tvONE...
-
Page 13: About Your Corioview
About your CORIOview™ Modes CORIOview has two operating modes. In dynamic mode, use your CORIOview to present and share screens in a meeting or huddle room. You can connect up to eight presenters at once. Dynamic mode is also great for security monitoring. In classic mode, use your CORIOview to show up to eight video sources on a single display. -
Page 14: About The Buttons Of Your Corioview
When the PRESET buttons is unlit, all connected presenters appear in the lobby. The lobby changes dynamically to show all connected presenters together. To enter the lobby, if the PRESET button is lit, press the PRESET button, and then press 1. tvONE... - Page 15 In the lobby: The PRESET button is unlit. A button from 1-8 is lit to tell you how many presenters are connected. Buttons from A-H are lit dimly to tell you which presenters are connected. Your display shows all connected presenters. Using preset window layouts If you want to show only specific presenters on your display, enable presets.
- Page 16 The active presenter appears in a larger window and can share audio. Press a lit button from A-H to choose the active presenter. All other connected presenters appear as thumbnails below the active presenter. Press the button again to switch between showing the chosen tvONE...
- Page 17 presenter full screen and with thumbnails. If you're using the lobby, press any number button to return to the lobby. If you enabled presets, press the number button for the preset you want to return to. Locking the buttons of the front panel To lock or unlock the buttons of the front panel, press and hold buttons 1 and 2.
-
Page 18: Using The Buttons Of The Front Panel In Classic Mode
In video mode, buttons A to H select windows, and buttons 1 to 8 select sources. VIDEO is lit. Buttons lit Sources and windows are dimly available but not active. Buttons lit Source 1 is playing in more window A. brightly Unlit buttons Buttons do not have windows or sources assigned. tvONE... - Page 19 Audio mode In audio mode, buttons 1 to 8 and A to H select sources to listen to. Both sets of buttons select the same sources, for example, you can select source 1 with button 1 or button A. AUDIO is lit. Buttons lit Audio is available but not dimly...
-
Page 20: Hardware Recommendations
2. Press a button from 1 to 8. Hardware recommendations At tvONE, we design our products to the highest quality standards. To get the best results from our products, we recommend that you use the best quality connectors, cables, and adapters. Consider the points below when you choose accessories and position equipment. -
Page 21: About Coriographer
CORIOview. Settings is where you configure your system, network, modules, and more. opens tvONE help. CORIOgrapher™ system requirements CORIOgrapher: Works with PCs running Windows® 7 and 10 Works with Microsoft Surface Pros and similar touch screen devices Full support for touch screen devices is under development Installs Windows .NET 4.6, if you don't have it... -
Page 22: Contact Us
Copyright © 2019 tvONE™. All rights reserved. -
Page 24: Start A Simple Meeting
tvONE...
