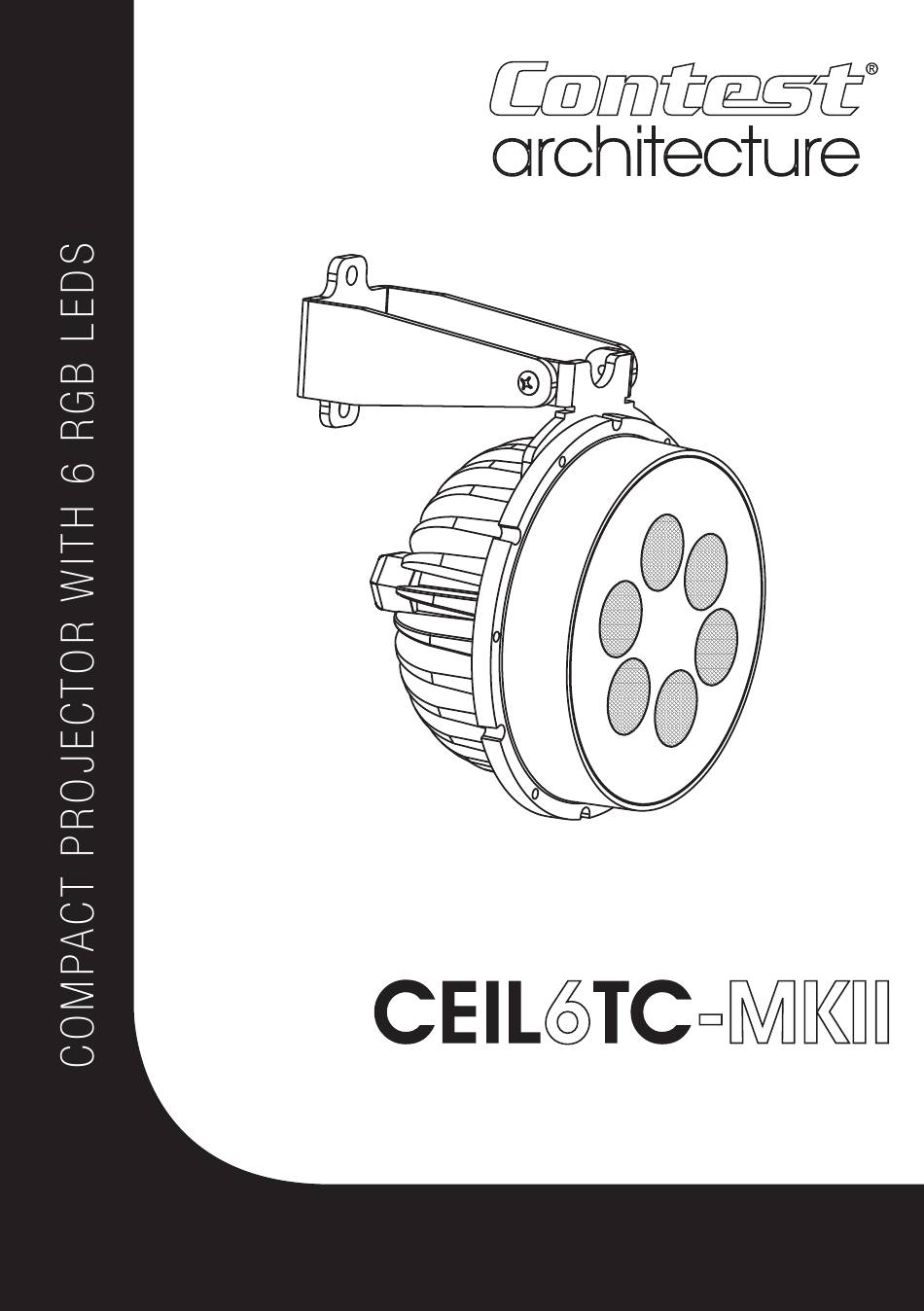

- Page 1 USER GUIDE 10658 - Version 1 / 01-2017...
-
Page 2: Important Safety Information
CEIL6TC-MKII - Compact projector with 6 RGB LEDs English 1 - Safety information Important safety information This product contains non-isolated electrical com- Any maintenance procedure must be performed by a ponents. Do not undertake any maintenance opera- CONTEST authorised technical service. Basic clea-... - Page 3 CEIL6TC-MKII - Compact projector with 6 RGB LEDs English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit.
- Page 4 CEIL6TC-MKII - Compact projector with 6 RGB LEDs English 2 - Introduction Your CEIL6TC-MKII is a waterproof projectors equipped with 6 x 3W RGB LEDs, delivered with its fixation bracket. It must be connected to a PILOT series power supply unit via its RJ45 socket.
-
Page 5: Installation
CEIL6TC-MKII - Compact projector with 6 RGB LEDs English 4 - Installation CEIL6TC-MKII projectors are passive, they must be connected to devices able to power them up and control them. Please find the wiring diagram below. Projecteurs Splitter LINK-SPLIT Alimentation Contrôleur... -
Page 6: Technical Specificatinos
CEIL6TC-MKII - Compact projector with 6 RGB LEDs English 5 - RJ45 socket pinout Pins Thread colour RGBW LED matching Black Red + Fiche RJ45 8 broches Brown Green + Vue côté des broches Blue + Orange Red - Yellow... - Page 7 CEIL6TC-MKII - Compact projector with 6 RGB LEDs English 7 - Dimensions 92 mm 111 mm 72 mm 195 mm 84 mm 47 mm Page 7...
- Page 8 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
