Page 1: User Manual
User manual VMS-007-DX2... -
Page 2: What's In The Box

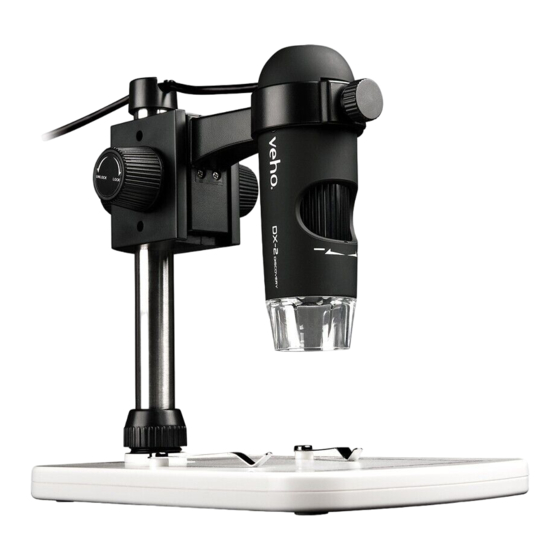

Introduction What’s in the box? The Veho DX-2 microscope allows you to explore the microscopic world. Highly useful for Veho DX-2 Microscope students, teachers, laboratory research, medical analysis, repair services or hobbyists. Height adjustable stand Please take a moment to read through this manual to ensure you get the most out of the Software CD microscope. - Page 3 Assembling the DX-2 Microscope Guide to the DX-2 Microscope Height Adjustment Wheel To adjust the distance between the scope and object Lock and Unlock Wheel Used to lock the vertical height position Focus Wheel Adjusts the focus of the microscope on the object Pole Screw Secures the mount carriage to the metal pole Clamp Screw Secures microscope in mount...
- Page 4 CD or visit our website download area at: before opening the Micro Capture Plus software. Windows - 7/8/10 Once connected, open Micro Capture Plus to start veho-world.com/downloads Mac OS - 10.12 and later using the microscope. P4 1.8 or above...
-
Page 5: Using The Microscope
Using the microscope How to focus the microscope Using the software Use the Height Adjustment Wheel (1) to get a rough focus, fine tune the Capture a still photo or video footage at focus using the Focus Wheel (3). When you have the correct focus use the any point when using the microscope, use Lock/Unlock Wheel (2) to secure the mounts position. -
Page 6: Calibration & Measurements
Calibration & Measurements Calibration Step 3 Once the image is open, click on the calibration icon. Using the mouse, Ensure ‘Display Crossing’ is turn on, go to click on the beginning and ending points; ‘Options > XY Guide > On/Off’. you must know the distance between the points (using the ruler). - Page 7 Measurements Diameter Circle Measurement Click, hold and extend out to the chosen Double-click on the image to enter the diameter. The diameter, circumference measurement interface. Under the and area of the circle will be calculated. ‘Measurement’ icon, choose any of the Three Points Angle Measurement Select following options to measure.
- Page 8 Adding drawing and text Changing Calibration You can annotate captured images using the draw or add text features; this is Use the following steps to change calibration settings. useful when using for later analysis. 1. Double-click to open the image, click the 1.
-
Page 9: Specifications
If these do not solve your problem please contact us via our Live Chat on our website at: Languages English, German, Spanish, Russian, Italian, French, Portuguese, Dutch, Polish, veho-world.com Japanese, Korean, Chinese Bundle software MicroCapture Plus (with measurement for Win/Mac) - Page 10 Support In the event you need to contact Veho for support or troubleshooting for your Veho DX-2 Microscope, please contact us via our Live Chat on our website at: veho-world.com...
