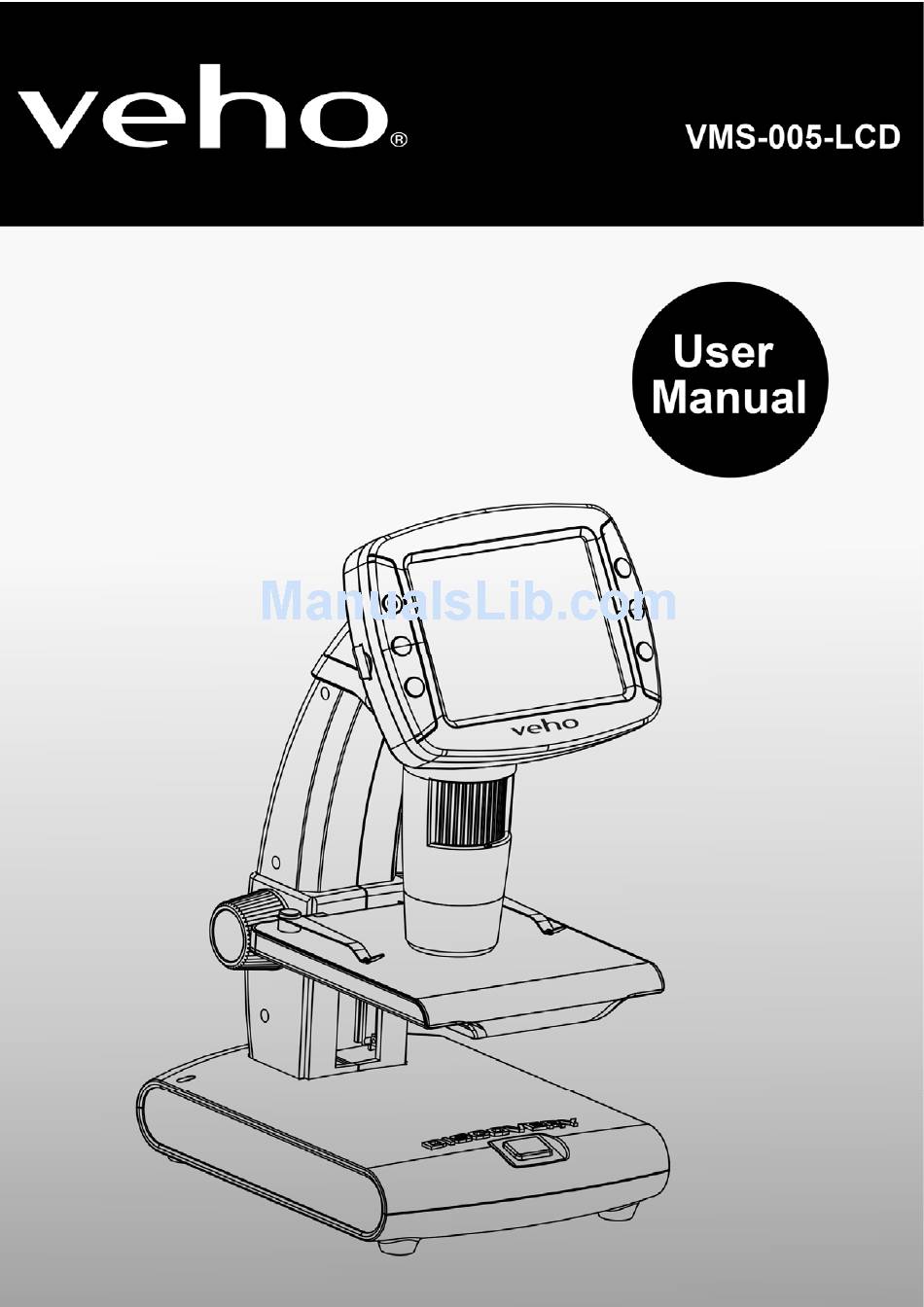

Veho VMS-005-LCD User Manual

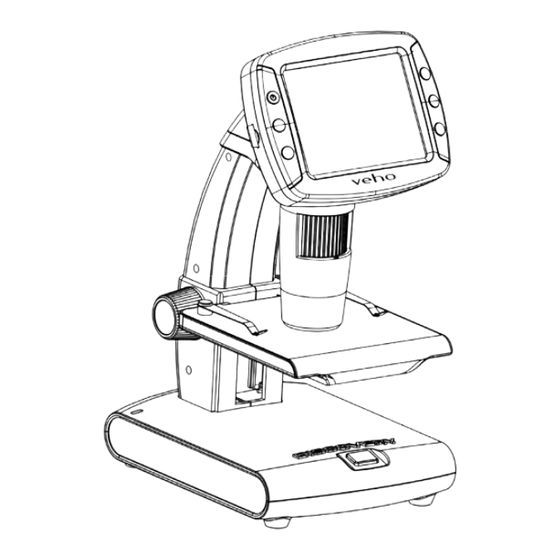

Portable stand alone lcd digital microscope
Hide thumbs Also See for VMS-005-LCD:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VMS-005-LCD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Veho VMS-005-LCD

Summary of Contents for Veho VMS-005-LCD

  • Page 2: Table Of Contents

    Table of Contents 1. Precaution…………………………………………….…3 2. Preparation……………………………………………..6 Standard Accessories……………………………6 Part Names & Functions………………………..7 3. key features…………………….….………..…….……8 4. Use the Microscope………..……….………………..9 Install Battery…………………….…..…………9 Insert a MicroSD Card…………..……….……10 Display Icons & Meanings…….……….….…...11 Turn on the Microscope…….……..…….……12 Turn off the Microscope…….…………………12 How to Capture………………..…..………….13 Download to Computer.….……..….…..………20 Preview on Computer……….…………..…...20 Charge Battery……….…………………………21...
  • Page 3 6. Specifications…………………..……………….…..…32 7. Computer System Minimum Requirement……….…32 8. Troubleshooting………………………………….……33 PortableCapture Pro Software Introductions……..34 Install Software……………………………………………..34 Start the Microscope……………………………………….35 Software functions………………………………..………36 Capture photo……..………………………….…36 Capture video………………….………………..36 Timer……………………………………………..37 Calibration……………………………………….38 Measurement…………...……………………..42 Change calibration………...…………………..43 Draw and Text…………………….…………….46 Software Interface Introductions………………………..47 Main Interface Icons……………………...…….47 Measurement Interface…………….……..……51...

  • Page 4: Precaution

    Welcome Thank you for purchasing a Portable Stand Alone LCD Digital Microscope. Please take a moment to read through this manual. Its contents will help you to get the best use of the smart microscope. 1. Precaution Before using the LCD Digital Microscope, please ensure that you read and understand the safety precautions described below.
  • Page 5 If you notice smoke or a strange odor coming from LCD Digital Microscope, turn the power off immediately. Take LCD Digital Microscope to the nearest authorized service center for repair. Never attempt to repair LCD Digital Microscope on your own. LCD Digital Microscope may become slightly warm during use.
  • Page 6 FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 7: Preparation

    2. Preparation ■ Standard accessories LCD Digital AC adaptor Lithium Battery Microscope USB cable TV cable Calibration Cleaning fabric chart...

  • Page 8: Part Names & Functions

    ■ Parts Names & Functions Functions Functions 3.5” LCD display LED brightness dimmer MicroSD card slot Zoom +/- Wheel B 5v DC in Microscope tube TV out Object stage USB port Wheel A Battery compartment Wheel C Battery charging indicator Capture button...

  • Page 9: Key Features

    3. Key Features 3.5 inches TFT panel 5M high quality image sensor (up to 12M by interpolation) 10x-300x magnification Photo & Video Timer Measurement (when working on computer) Support MicroSD card up to 32GB Driver free to download for Windows XP SP2/ Vista/Win7/Win 8 and Mac OS 10.6 -10.8 (direct plug-in, driver installation not required) Rechargeable Lithium Battery...

  • Page 10: Use The Microscope

    4. Use the Microscope 4.1 Install battery 1). Open the battery door by sliding its door latch.. 2). Insert the lithium battery to the battery compartment according to the polarities shown in the compartment. Note: Before using the microscope, you must charge its battery.

  • Page 11: Insert A Microsd Card

    4.2 Insert a MicroSD Card (not included) You must insert a MicroSD card (not supplied) to record and store your pictures and videos. Inserting the MicroSD memory card: 1) Turn off the microscope 2) Insert the MicroSD card into the MicroSD card slot;...

  • Page 12: Display Icons & Meanings

    4.3 Display Icons & Meanings ICON Meaning Still image capture Timer capture Captured image qty/total qty that could be captured (based on the current resolution) MicroSD inserted Current resolution Battery electricity indicator...

  • Page 13: Turn On The Microscope

    Note: The icon displays can be switched on/off by pressing Zoom Wheel ⑵ downward vertically. 4.4 Turn on the Microscope Press on/off button to turn it on. 4.5 Turn off the Microscope 1) Press on/off button 2) By Power Save. Please refer to Section 5.2.2 for Power Save setup.

  • Page 14: How To Capture

    4.6 How to Capture?
  • Page 15 1) Turn on the microscope, put object to be observed onto the object stage. 2) Rotate Wheel A to bring the object near to the microscope tube. If wheel A is locked, rotate wheel C counter clockwise to release the lock.
  • Page 16 3) Rotate Wheel B to get fine focus. 4) When a clear focus got, rotate Wheel C clockwise to lock the object stage.
  • Page 17 5) Take Photo or Record Video Press Capture button to take a photo or record video. (1) Press Playback/Left to enter video mode as follows. There is video icon on the left corner. (2) Press Capture button to start recording video. Press again to stop.
  • Page 18 6) Play Back (1) Press Playback/Left to enter play back mode as follows. There is review icon on the left corner. (2) Press UP/DOWN to select among captured pictures and video clips. (3) Delete At play back mode, press to enter sub-menu as follows, then confirm delete.
  • Page 19 (4) Protect At play back mode, press to enter sub-menu as follows, then confirm protect pictures from delete. (5) Slide Show At play back mode, press to enter sub-menu as follows, select interval time, and then confirm by OK.
  • Page 20 7) Color Mode At preview status, press to switch among Color/Positive/Negative! 8) Zoom in: push Zoom Wheel upwardly 9) Zoom out: push Zoom Wheel downwardly Note: The zoom ranges from 1x – 4.0x...

  • Page 21: Download To Computer

    4.7 Download to Computer 1) Connect the microscope to computer by USB cable. 2) Choose Mass Storage and then you can view stored photos & videos. 4.8 Preview on Computer 1) Connect the microscope to computer by USB cable. 2) Choose PC Camera mode 3) Start PortableCapture software.

  • Page 22: Charge Battery

    4.9 Charge Battery Before using the microscope, you must charge its battery. Plug the small end of the power adaptor into the DC-in port located on the bottom side of the unit. Then plug the other end of the power adaptor into a standard AC outlet.

  • Page 23: Connect To Tv

    4.10 Connect to TV 1. Insert the 1/8-inch plug on the end of the supplied video cable into the microscopes Video port. 2. Insert the RCA plug on the video cable into one of your television’s yellow video input connectors. Refer to your television’s manual for more information on locating these connectors.

  • Page 24: Menu Introductions

    5. Menu Introductions 5.1 Main MenuⅠ Press to enter main menuⅠ as follows: Here you can setup Resolution/Timer/Quality/Sharpness. 5.1.1 Set Resolution 1) From the main menuⅠ, choose Resolution and select a resolution between VGA/1.3M/3M/5M/8M/12M. 2) Press OK to confirm selection.

  • Page 25: Timer

    5.1.2 Timer 1) From the main menu Ⅰ, choose Timer and then enter Timer setup: Frames: input quantity of frames you want to take by UP/DOWN and LEFT/RIGHT. The above setup means 32 frames. Interval: input interval time between frame capture by UP/DOWN and LEFT/RIGHT.

  • Page 26: Quality

    3) Press OK to confirm selection and press Menu Setup back to preview status. Then press Capture (8) to start auto capture. When at auto capture status, there at the left corner of the screen. 4) When all frames captured, microscope will return to normal preview.

  • Page 27: Sharpness

    5.1.4 Sharpness From the main menuⅠ, choose Sharpness and then select among Super Fine/Fine/Normal. 5.2 Main Menu Ⅱ Press to enter main menu I, and then press LEFT to enter Main Menu Ⅱ as follows: Here you can setup Language/Power Save/ Date Stamp/TV Out/Date and Time/Format SD/ System Reset/Version.

  • Page 28: Language

    5.2.1 Language From the main menu Ⅱ, choose Language and then select a target language by UP/DOWN. 5.2.2 Power Save 1) From the main menu Ⅱ, choose Power Save and then select among the following a target time for the microscope to power off without key operation.

  • Page 29: Frequency

    5.2.3 Frequency From the main menu Ⅱ, choose Frequency to enter the following menu: Set up frequency by up/down. 5.2.4 Date Stamp 1) From the main menu Ⅱ, choose Date Stamp to enter the following menu: 2) Select Date/Time, Date or Off. Date/Time: both date and time will be marked on images taken.

  • Page 30: Tv Out

    5.2.5 TV Out From the main menu Ⅱ, choose TV Out and then select, between NTSC and PAL, the correct mode compatible with your TV. 5.2.6 Date/time From the main menu Ⅱ, choose Date/Time to setup date and time. 1) Setup date and time by LEFT/RIGHT/UP/DOWN 2) Setup date mode among YY/MM/DD, DD/MM/YY, and MM/DD/YY.

  • Page 31: Format Sd

    5.2.7 Format SD From the main menu Ⅱ , choose Format SD to format the MicroSD card inserted. 5.2.8 System Reset From the main menu Ⅱ, choose Sys. Reset to reset the system back to default. 5.2.9 Version From the main menu Ⅱ, choose Version to view the current machine version.

  • Page 32: Specifications

    6. Specifications Image sensor: 5M high quality Image Sensor Magnifications: 10x-300x Resolutions: 12M, 8M, 5M, 3M, 1.3M, VGA Lens: High quality microscopic lens Display: 3.5inches TFT panel, 4:3 ratio Light sources: 8 LEDs with adjustable brightness Li-ion 3.7V / 1050mAh battery Power sources: Working time: 2 hours;...

  • Page 33: Troubleshooting

    8. Troubleshooting Problems Solution The unit does not turn on. Charge the battery. Ensure that the power is on. Charge the battery. The screen is blank. Verify that the item you want to magnify is Positioned correctly under the lens. There are smudges or Clean the screen and lens carefully with soft blemishes on the screen...

  • Page 34: Portablecapture Pro Software Introductions

    PortableCapture Pro Software Introdcution ■ Install the software Insert the driver CD into CD-ROM Drive and this will automatically display the following interface: 1. Install the PortableCapture Pro software Click PortableCapture software and then reboot the system when asked. 2. You can also browse the User manual in PDF format and the CD contents by choosing the corresponding menus.

  • Page 35: Start The Microscope

    3. Start the Microscope Connect your Microscope to your PC USB port as shown Page20, start software clicking icon generated on the desktop after installation and you will see the following screen pop up.

  • Page 36: Software Functions

    4. Software functions ■ Capture Photo a. Click ‘Photo’ shortcut icon in the main menu bar. b. Click ‘Capture > Photo’. ■ Capture Video a. Click ‘Video’ shortcut icon in the main menu bar. b. Click ‘Capture > Video’.

  • Page 37: Timer

    ■ Timer (Photo / Video) Click ‘Timer’ shortcut icon in the main menu bar. * Under Timer photo, you can set the start time, interval time and total picture number. * Under Timer video, you can set the start time, interval time and total video number.

  • Page 38: Calibration

    ■ Calibration and Measurement Please make calibration before measurement. Calibration Display Crossing from ‘Options>XY Guide’’. It’s used to check the dial is parallel or not.
  • Page 39 1. Focus microscope on the attached dial and then adjust the magnification till the picture is clear. Take a picture for the selected area when the dial is parallel to the crossing as below. 2. Double-click on the picture to enter into measurement interface as below.
  • Page 40 3. Click Calibration icon , and then move mouse to the picture. Click on the beginning and ending points across a known value. Now a dialog will popup as below and you need to enter the exact value of the measurement sample into ‘Actual dimension’.
  • Page 41 4. Now you can use ‘Any angle Line’ under Measurement icon to measure the value again. If the value you measure by software is nearly the same as the exact value of the dial means the calibration finish.

  • Page 42: Measurement

    Measurement Double-click on the picture to enter into measurement interface. Under the ‘Measurement’ icon , you can choose any desired options to measure. 1. Any Angle Line Measurement Simply click from one point and drag to the next point, and then release the click.

  • Page 43: Change Calibration

    Change Calibration If you need to change the magnification rate and adjust focus to capture picture, please calibrate the magnification rate again. 1. Double click to open the picture, Click ‘ > Reset magnification > Reset picture magnification’ as below. And then start calibration again (Calibration details please refer to page37).
  • Page 44 2. Change the magnification rate and capture several pictures, click on the picture to enter into measurement interface. And click ‘ > Set magnification > Set picture magnification’, now a dialog will show up as below; enter the magnification rate into the dialog and click ‘OK’.
  • Page 45 3. If you want to use the same magnification rate to capture pictures, just click ‘ > Set magnification >Set capture magnification’. Now all pictures will use the same magnification rate and you can start measurement directly.

  • Page 46: Draw And Text

    Draw and Text You can draw or add a text on the picture and save for later analysis. 1. Click icon to choose any kinds of drawing under the pull-down manual as below. 2. Click icon and set the font for the text in the popup dialogue as below.

  • Page 47: Software Interface Introductions

    6. Software Interface Instructions Main Interface Icons Capture photo – It’s used to capture photo one by one. Start / Stop record video. Timer for photo / video – Set the start time, interval time and total photo/video number. Full screen mode, Press ESC or double-click to exit.
  • Page 48 Main Menu File set the directory to store photos Photos Directory: taken; Videos Directory: set the directory to store video taken;...
  • Page 49 Options Preview Size: change preview size Date/Time: set to display system date/time on preview window Language: choose different OSD language Crossing: display cross on preview window Fullscreen mode: enter into full screen. Click ESC or double click to exit...
  • Page 50 Capture Photo: take a photo Video: record a video clip...

  • Page 51: Measurement Interface

    Measurement Interface Instructions Save as Redo Copy to Draw clipboard Copy file Text note Previous Measurement Next Calibration Undo...
  • Page 52 For technical support please visit http://www.veho-world.com/main/suppoty.aspx for FAQs, the Download Centre or to submit a query. Veho is a registered trade mark. www.veho-world.com This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste.
